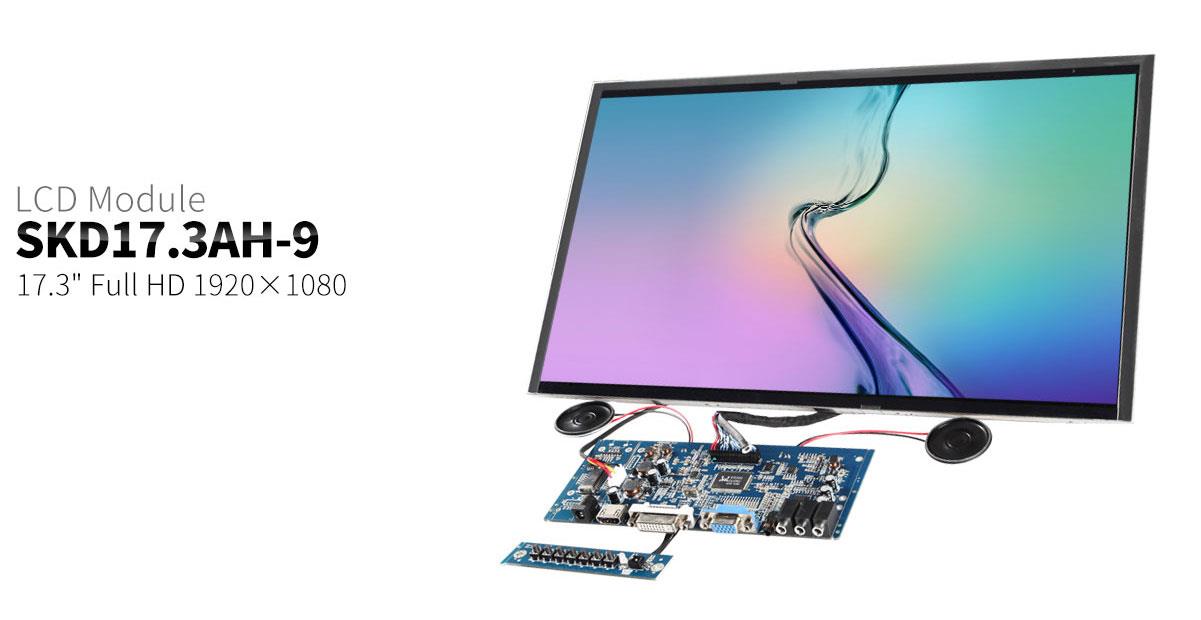

17.3" Full HD 1920×1080 LCD SKD Module SKD17.3AH-9

Hits： 次

Model：SKD17.3AH-9

Introduction

Screen Size：  17.3"
Resolution：   1920×1080 pixels
Aspect ratio： 16:9
Brightness：   400cd/m²

Input

HDMI, VGA, AV1, AV2, Audio

Output

Audio

DM

pdf Shop/2017/9/SEETEC-SKD173AH-9-Specification.pdf

Download

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES

The SEETEC industrial LCD Module series provides industrial grade LCD panels, which are developed specially to work with embedded boards, provides flexible customization services.SKD LCD Module can be used in a wide variety of industrial and commercial applications. Perfect for: gaming, ATM machines, kiosk displays, and much more, SEETEC SKD LCD Module offer easy integration for maximum flexibility. Featuring a variety of sizes and aspect ratios, the applications are nearly limitless with SKD LCD Module.

Features:
SEETEC SKD modules are manufactured with steady performance and low power consumption. They are mainly applied to various facilities, such as car navigation system, HTPC, thin client PC, panel PC, POS, industrial control system etc.

Customization Services:
We're able to design and adjust both hardware and software to match your cost and application requirement. The interface optional.




Display Spec.
 Model  SKD17.3AH-9
 Screen Size  17.3"
 Color Depth  16.7M
 Resolution  1920×1080 pixels
 Pixel Pitch  0.1989(H)×0.1989(V) mm
 Aspect Ratio  16:9
 Brightness  400cd/m2
 Contrast Ratio  600:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 60°/80°(U/D)

Interfaces (Optional)
HDMI, DVI, VGA, YPbPr, Video, Audio in, Aduio out
Audio out, Audio in, HDMI, VGA, AV1, AV2
VGA, S-video, Video, Audio R/L in, Audio in, Audio out

General
 Input Voltage  DC 7～18V
 Power Consumption  ≤20W
 Working Temperature  -10℃～50℃
 Storage Temperature  -20℃～60℃
 Unit Size  403L x 240H x 12.5D (mm)
 Unit Weight  1200g


Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
