21.5" IPS 1920x1080 Projected Capacitive 10-Point Touch LCD Open Frame Monitor PF215-9CT

Hits:

Model:PF215-9CT

Introduction

Screen Size:  21.5" IPS
Resolution:   1920x1080 pixels
Aspect ratio: 16:9
Brightness:   250cd/m²

Input

HDMI, YPbPr, Video, Audio, DVI, VGA, USB for Touch

Output

Stereo Headphone, Speaker(built-in)

Download

pdf

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES

Overview

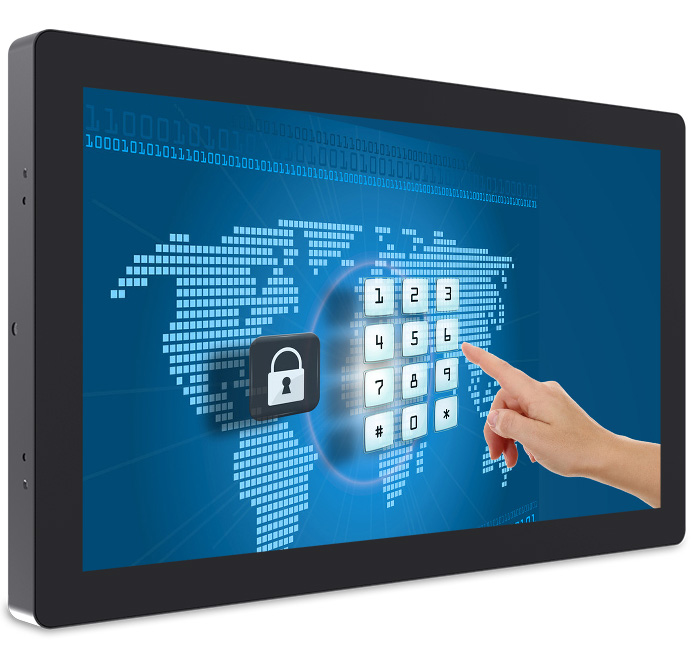

The SEETEC PF215-9CT 21.5-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the energy-saving LED backlight, using less electricity to operate and generating less heat.
PF215-9CT uses projected capacitive touch technology, built scratch resistance glass is essential for touch solutions.
Featuring IPS LCD screen technology, it offers exceptional color performance and wide viewing angles, making it a perfect interactive display for interactive digital signage.

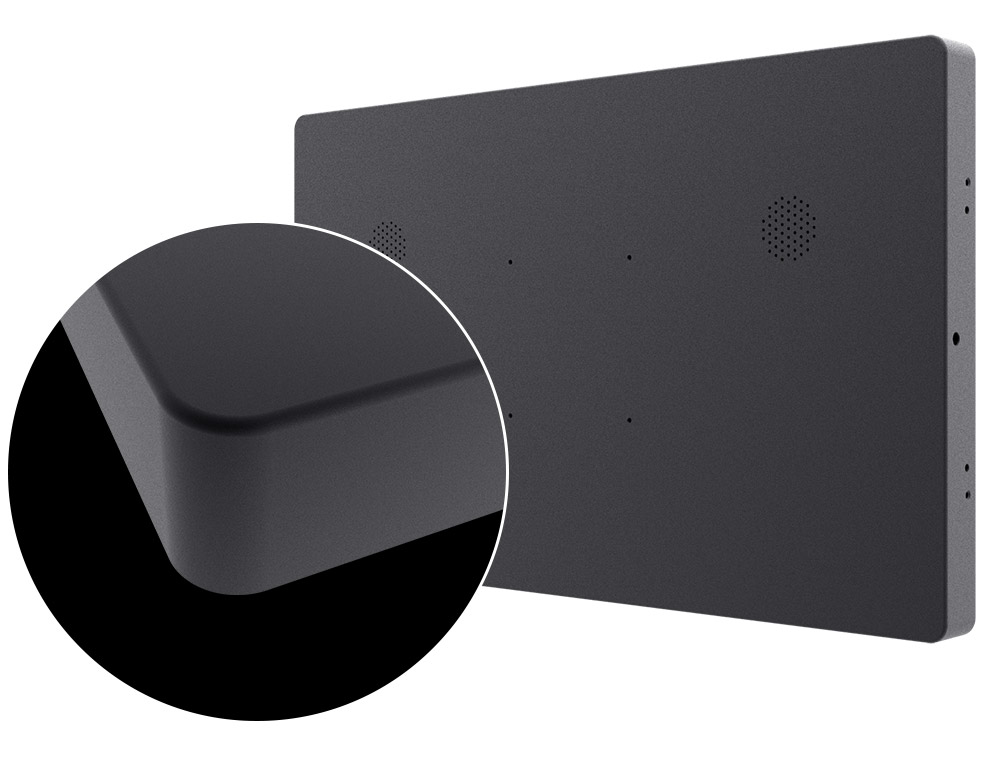

In addition to the superb image quality, the PF215-9CT comes with easy to mount open frame, rugged construction against external impact, metal chassis making it suitable for demanding environments.
The SEETEC PF215-9CT is the ideal screen for the kiosk integrators and a solution for Interactive digital signage, store retail, gaming and interactive presentations.

Features
1. 21.5 inch Full HD (1920x1080) 250cd/ m²
2. IPS wide view angle and high-contrast screen for stunning colors
3. Projected capacitive 10-point Touch Screen

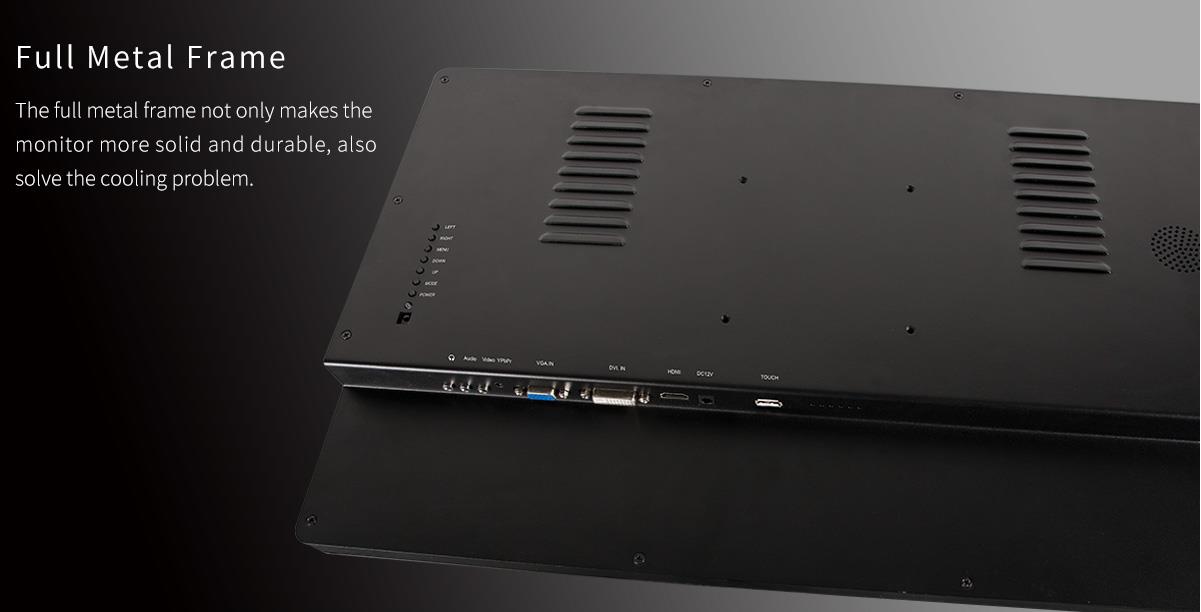

4. Full metal construction
5. HDMI, DVI, VGA, YPbPr, Video, Audio Signal Input
6. OSD control on the back cover
7. DC 12V Power Input
8. Rugged industry design
9. Support embedded rack mounted / VESA wall mounted
10. USB touch interface Support Windows 7/ 8/ 10 Compliant, Android OS system

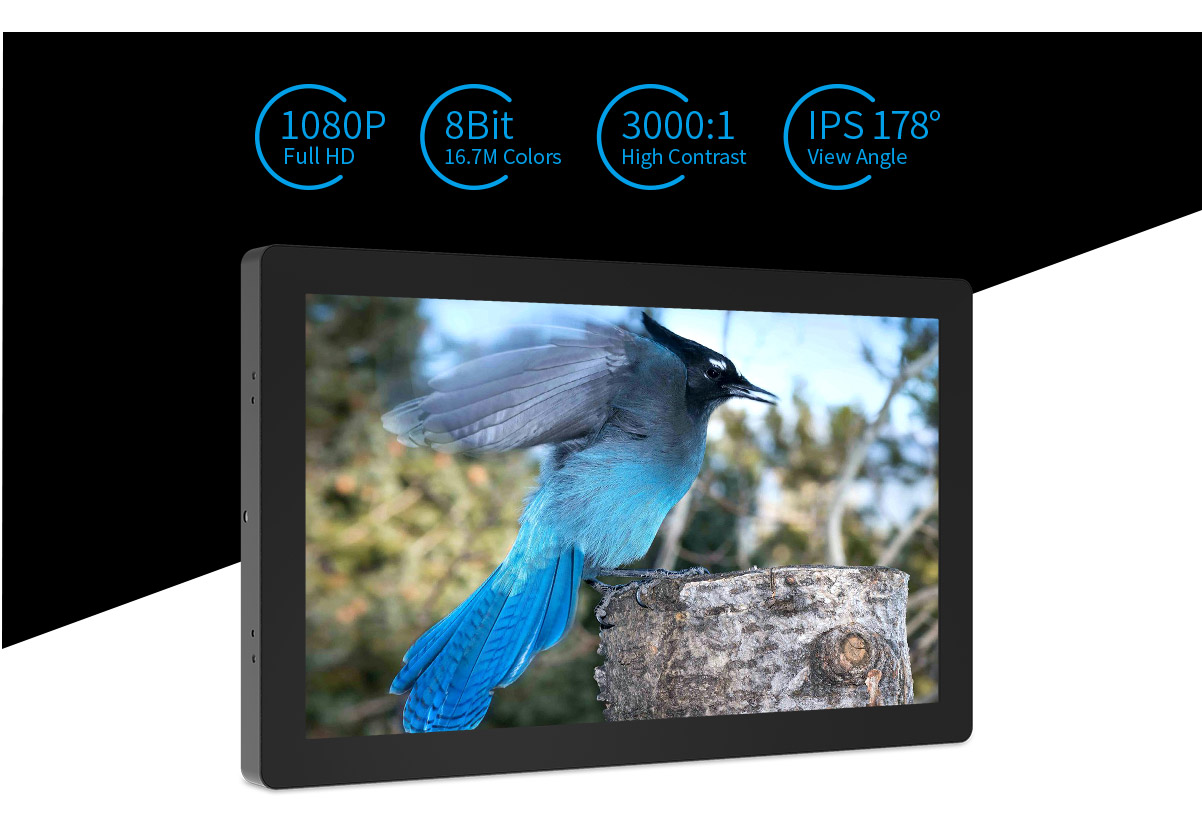

IPS Panel Brings You the Perfect Visual Experience
High Quality: no brightened dot, no streaking

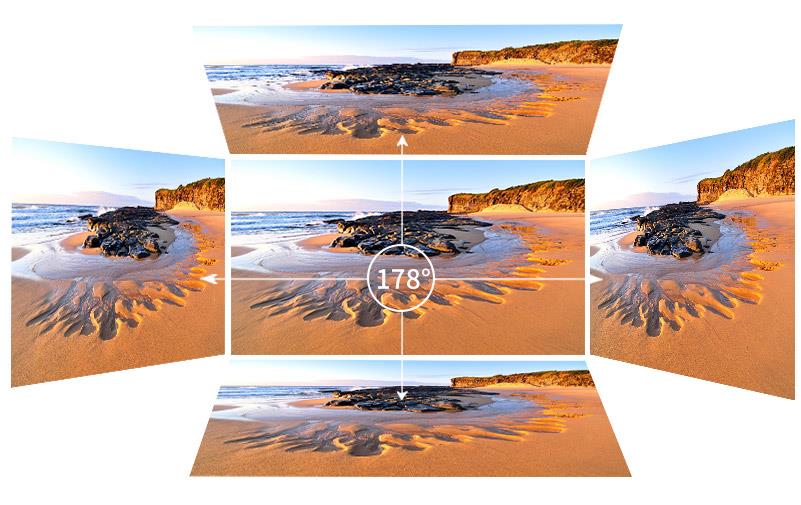

178° Wider View angle: enjoy consistent images from any perspective.

More precise color restoration: wide color gamut LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.



FULL HD 1920 x 1080
With true 1920 x 1080 resolution PF215-9CT is ready to display high definition images. The Color Space is rich and high in performance which brings more details, true color and a better sensory experience for the user.



  • Multiple Inputs and Outputs
    Input:
    HDMIX 1
    DVII X 1
    VGAX 1
    YPbPr X 1
    Video X 1
    Auido X 1
    USB for Touch X 1
    Output:
    Speaker and Stereo Headphone X 1

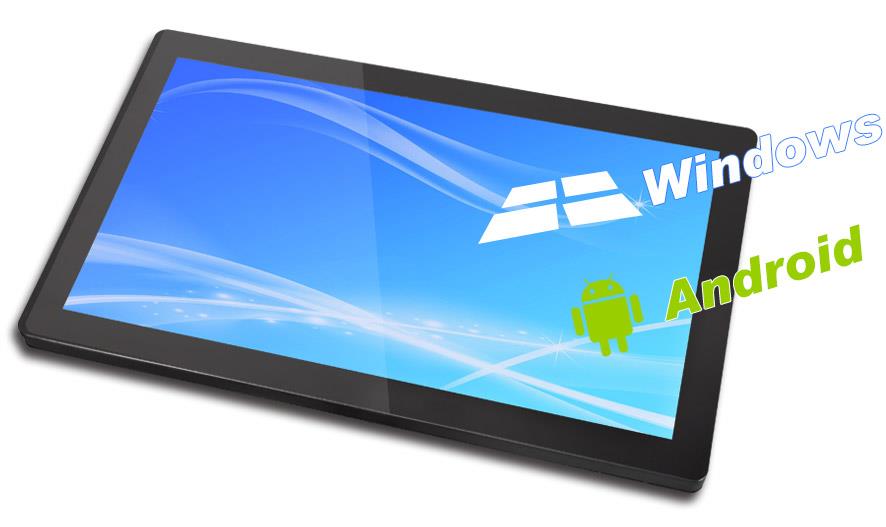

Support System
Support Windows 7/ Windows 8/ Windows 10 / Android system.



Projected Capacitive 10-point Touch
  • PF215-9CT with 10-point multi-touch capability and a durable, scratch-resistant surface offers a highly accurate and ultra-responsive touch experience, whether for web browsing, gaming, typing, or applications execution.

  • This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched.



  • Flexible Installation
    This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Store Retail. Support Embedded Rack Mounted / VESA Wall Mounted.





Application
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems.



1. 21.5 inch Full HD (1920x1080) 250cd/ m²
2. IPS wide view angle and high-contrast screen for stunning colors
3. Projected capacitive 10-point Touch Screen
4. Full metal construction
5. HDMI, DVI, VGA, YPbPr, Video, Audio Signal Input
6. OSD control on the back cover
7. DC 12V Power Input
8. Rugged industry design
9. Support embedded rack mounted / VESA wall mounted
10. USB touch interface Support Windows 7/ 8/ 10 Compliant, Android OS system

Display Spec.
 Model  PF215-9CT
 Touch Screen  Capacitive Touch
 Touch Interface  USB
 Multi-Touch Support  10 Points
 Screen Size  21.5" IPS
 Display Colors  16.7M colors (RGB 8-bit)
 Resolution  1920×1080 pixels
 Dot Pitch  248.25×248.25 um
 Aspect Ratio  16:9
 Brightness  250cd/m²
 Contrast Ratio  3000:1
 Backlight  LED
 Viewing Angle  89°/89°(L/R) 89°/89°(U/D)

Interfaces
HDMI, DVI, VGA, YPbPr, Video, Audio in, Audio out, USB for touch

Mounting Options
VESA 4-hole 100mm mounting / Rack Mount

General
 Input Voltage  DC12V
 Power Consumption  ≤12W
 Working Temperature  -0℃~50℃
 Storage Temperature  -20℃~60℃
 Unit Size   533.40L×324.86H×46.30D (mm)
 Unit Weight  6.38kg



Dimensions (Unit: mm)

Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
