SEETEC SC173-HD-56 17.3 Inch 1RU Pull Out Rack Mount Monitor Full HD 1920x1080




Screen Size:  17.3"
Resolution:   1920x1080 pixels
Aspect ratio: 16:9
Brightness:   300cd/m²


HDMI,, DVI, VGA, YPbPr, Video, Audio


Stereo Headphone











rack mount monitor

The metal housing SC173-HD-56 boasts a crisp 17.3" IPS display panel with 1920x1080 resolution. It has a host of inputs including 3G-SDI BNC (optional), HDMI, DVI, VGA, YPbPr, Video, and Audio making it a perfect fit for any broadcast or live event production. For added stow-and-go convenience, the SC173-HD-56 is designed with 1RU rack drawer design for rack mounting or as a stand alone unit. It an be folded down and slid into rack drawer to save space or to transport. It has multiple functions to help monitoring, including focus assist, image zoom, center marker, screen marker, image freeze, check field etc. This innovative drawer monitor is a cost-effective "all-in-one" solution for broadcast, post production, on set monitoring, broadcast trucks and more!
Product Features:
Full HD 1920x1080 Resolution
1RU pull-out rackmount Design
Rack-Mountable or Stand Alone
Space Saving & Portable with Handle
2 Adjustable Function Buttons
Metal Housing Protection

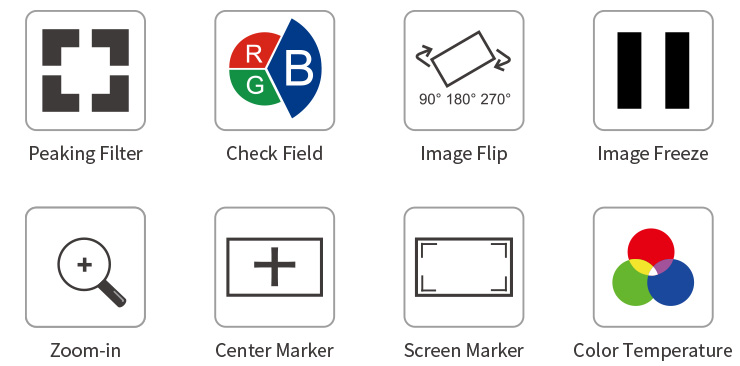

Advanced Monitoring Tools



Advanced Monitoring Tools
It has multiple functions to help monitoring, including focus assist, image zoom, image freeze, check field, center marker, screen marker, image flip, color temperature adjust etc. These assist users to accurately monitor when shooting, making and playing movies/ videos.

full hd rack mount monitor

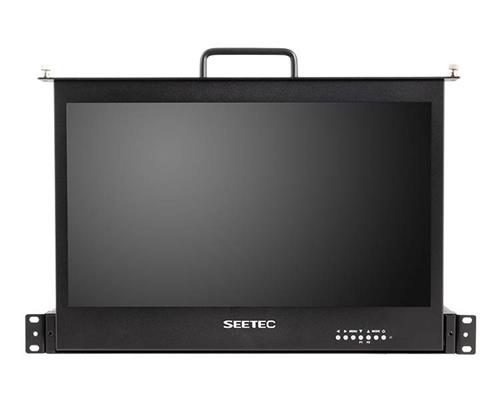

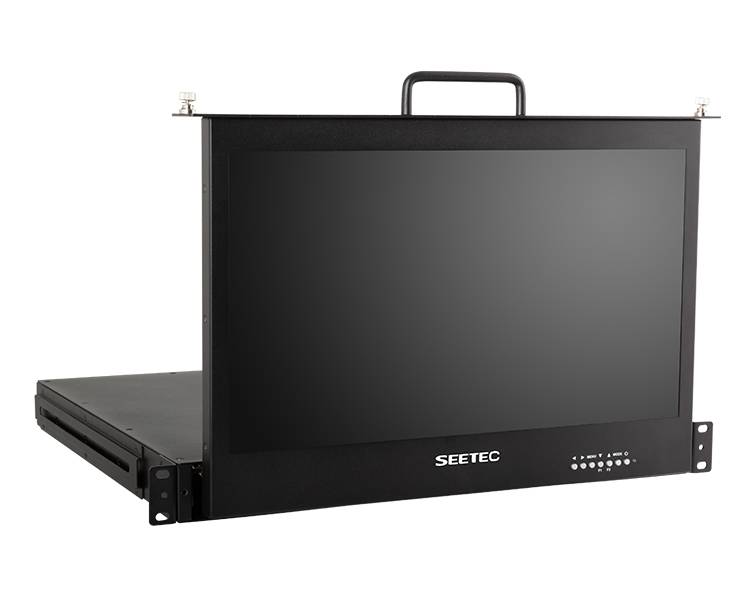

1RU pull-out rack mount monitor

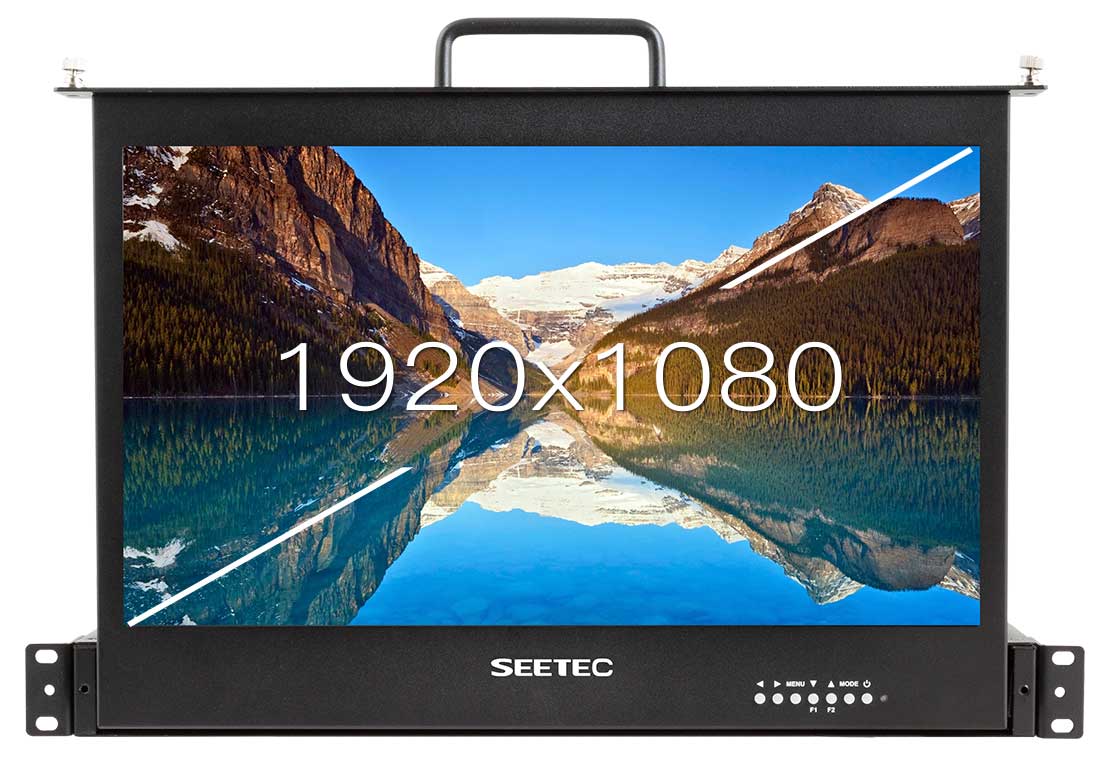

See Everything in Stunning Detail
The SC173-HD-56 has a full HD 1920 x 1080 native resolution panel at 17.3". The IPS screen panel gives crisp pictures and sharp color contrast, resulting in the high fidelity picture quality for both text and video alike. Combine that with its 178 degrees (horizontal and vertical) wide viewing angle and you'll see the same high-quality image from nearly any viewing position, whether you're leaning back in your chair or you're shifting from one side to the other.

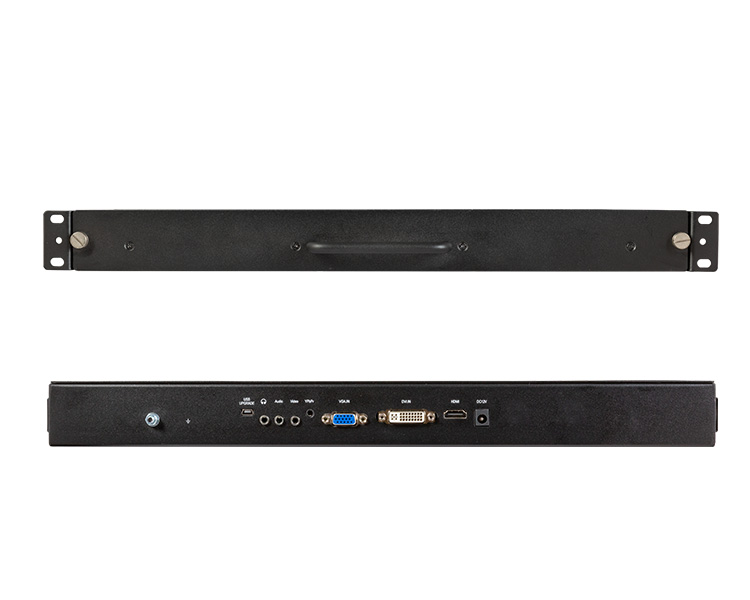

173 1RU rackmount monitor

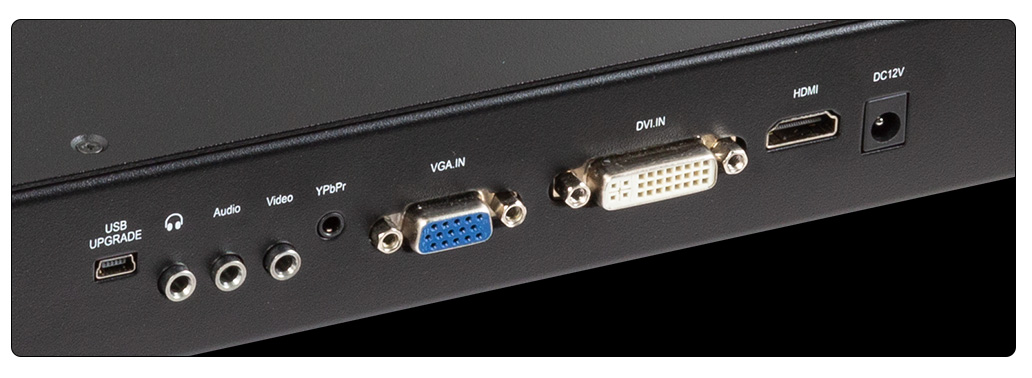

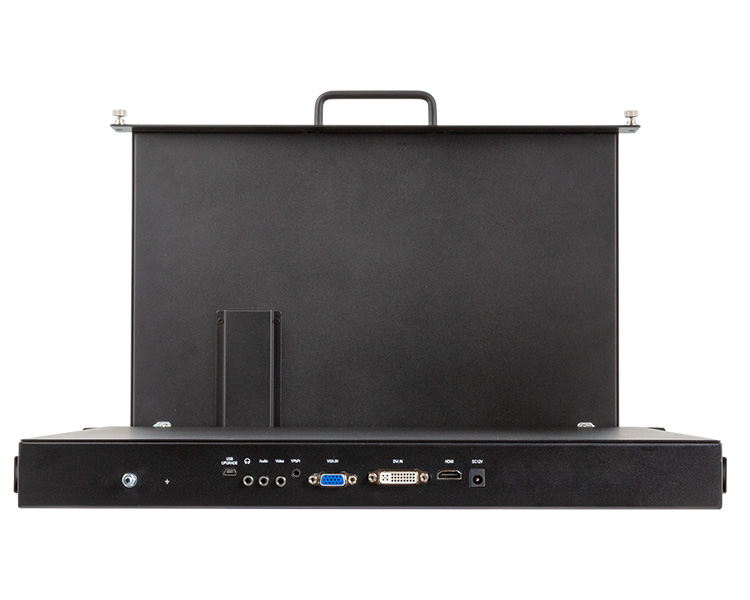

Easy Connectivity with Your Equipment
SC173-HD-56 features a machined metal design that’s durable and extremely strong! From its machined metal front to its professional broadcast connections, the SC173-HD-56 has been designed to handle the stress of professional broadcast, television, film and commercial production on the road or in your studio! Includes SDI input/output (optional), default configuration HDMI, DVI, VGA, YPbPr, Video, Audio input, and you can also monitor audio using the 3.5mm stereo headphone jack . For power, there’s a 12V DC input.

multiple interface monitor

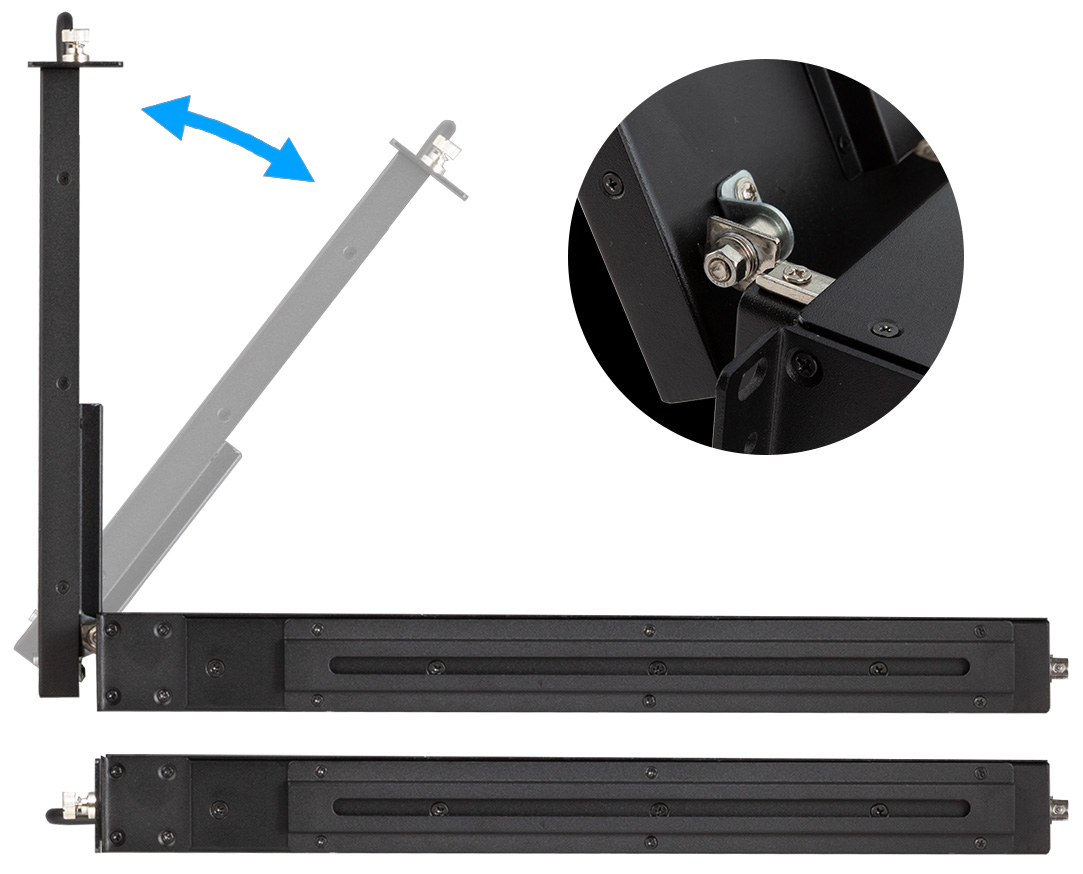

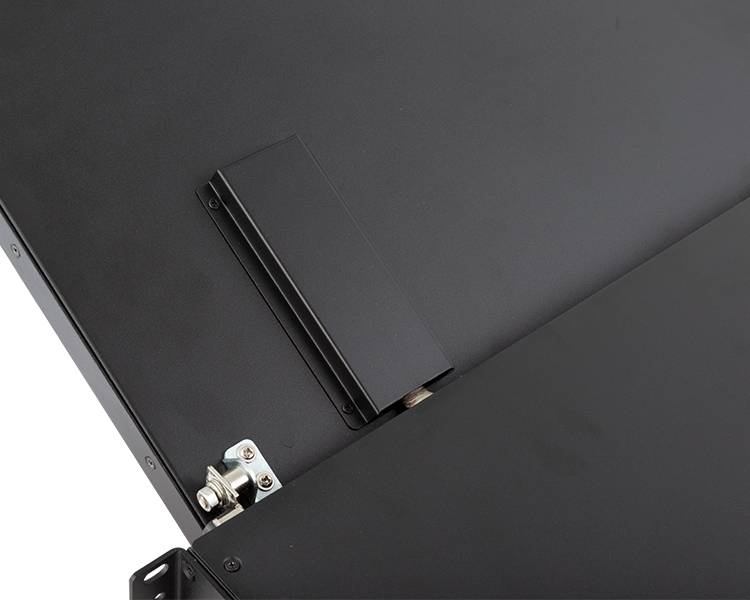

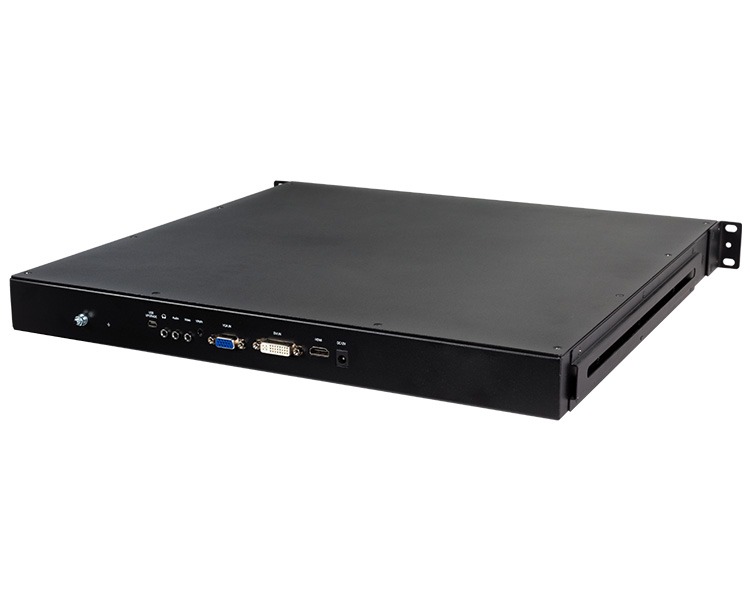

Innovative Design Saves Precious Rack Space
If the rack space is tight, the SC173-HD-56 was designed with you in mind. Metal housing with pull-out drawer type design, which occupies just 1 RU (rack unit) of space when it's housed and provides perfect protection for a 17.3 inch monitor from shock and drop. A 1RU rack design not only can save the space of rack greatly with a 17.3-inch monitor, but also viewed from different angles when monitoring. Easily pull it out when you need it, fold it up and store it after use. It's the ideal studio monitor for applications where space is constrained.

17 inch pull out broadcast monitor


hdmi broadcast monitor

1. Wide view angle screen, Full HD 1920x1080, bright, colorful display
2.  4K HDMI, DVI, VGA, YPbPr, Video, Audio inputs
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom (4X, 9X, 16X)
* Scan Mode (Under Scan, Over Scan)
* Zoom All
* U/D & L/R Zoom
4. Monitoring via 3.5mm stereo headphone jack


Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.


Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.


Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.


Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

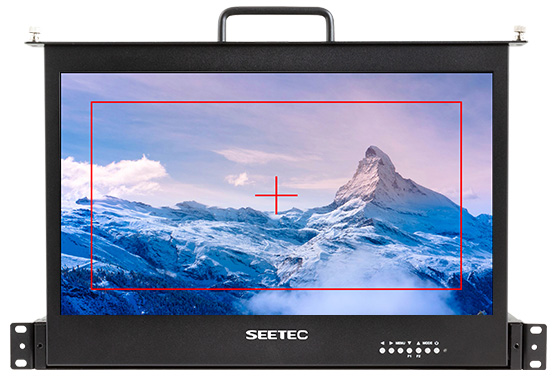

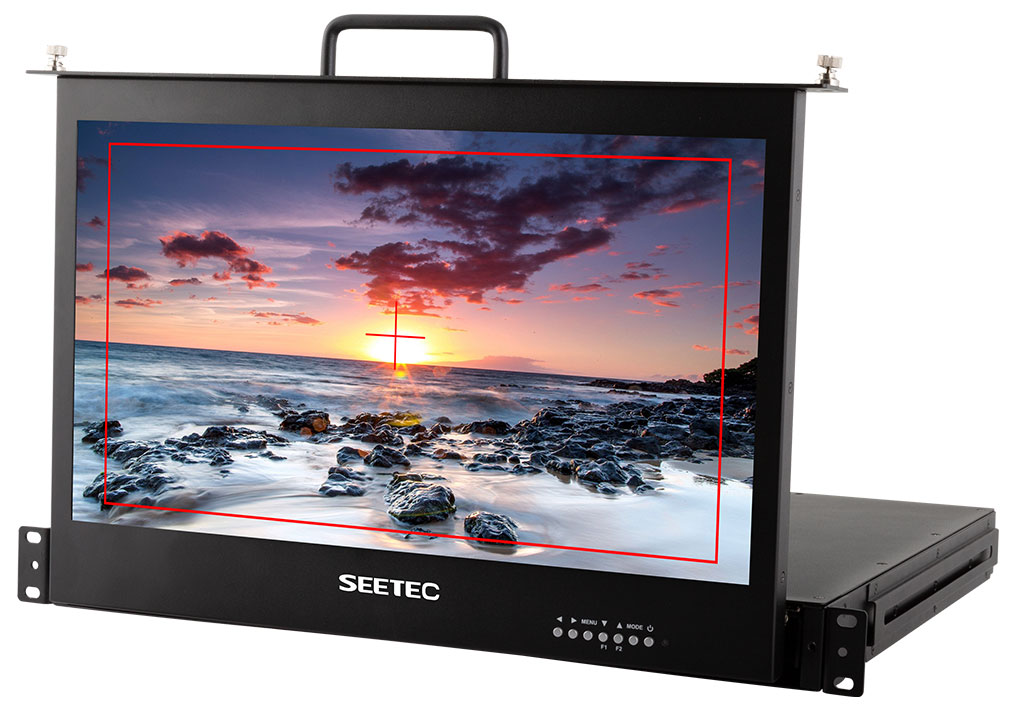

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)


Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.



Display Spec.
 Model  SC173-HD-56
 Screen Size  17.3"
 Color Depth  16.7M
 Resolution  1920×1080 pixels
 Dot pitch  0.1989(H)×0.1989(V) mm
 Aspect Ratio  16:9
 Brightness  300cd/m²
 Contrast Ratio  700:1
 Backlight  LED
 Viewing Angle  89°/89°(L/R) 89°/89°(U/D)
 1 X YPbPr  YPbPr
 1 X Video  Video
 1 X RCA  Audio
 Audio  Stereo Headphone
HDMI Support Format
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
 Input Voltage  DC7-24V
 Power Consumption  ≤10W
 Working Temperature  -10°C~50°C
 Storage Temperature  -20°C~60°C
 Unit Size   485Lx462Hx43.5D (mm)
 Unit Weight  7.7kg
Advanced Features
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%,2.35:1)
* Image Freeze
* Image Flip (H, V, H/V)
* Pixel-to-Pixel
* Check Field (Red,Green,Blue,Mono)
* Scan Mode (Under Scan, Over Scan)
* Zoom (4X, 9X, 16X)
* Zoom All (0~100)
* U/D & L/R Zoom (0~100)
* Custom Color Temperature

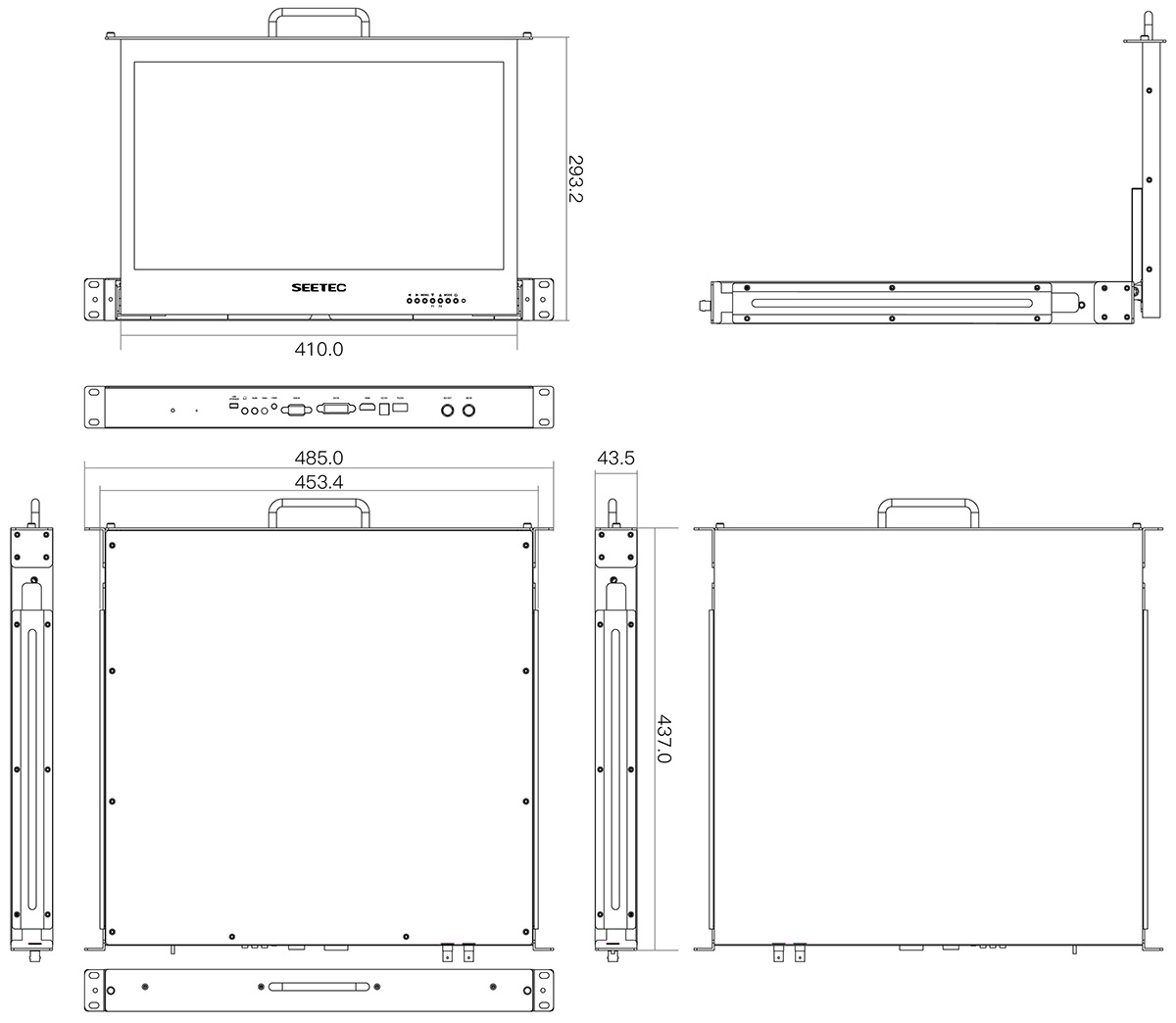

Dimensions (Unit: mm)

Standard Accessories:
  1× Power Adapter
  1× Operation Manual
