SEETEC ATEM156 15.6 Inch Live Streaming Broadcast Director Monitor with 4 HDMI Input Output Quad Split Display for ATEM Mini Video Switcher Mixer Pro Studio Television Production

Hits:

Model:ATEM156

Introduction

Screen Size:  15.6" IPS
Resolution:   1920×1080 pixels
Aspect ratio: 16:9
Brightness:   250cd/m²

Input

HDMIx4

Output

HDMIx4, 3.5mm Stereo Headphone,

Download

pdf Shop/2020/6/ATEM156-DM-02.jpg

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES

ATEM156 15 inch multiview monitor

ATEM Mini Pro



Professional Monitoring Functions
SEETEC ATEM156 has set up professional monitoring functions according to the actual needs of pre-shooting and post-production to help you improve the shooting efficiency. Equipped with four 4K HDMI inputs, it supports quad view, dual view, and single view monitoring functions, allowing you to get perfect multi-camera monitoring in any location! It contains focus-checking functions, such as Peaking Focus, False Color, and Pixel to Pixel, to assist in getting sharp images. It contains framing functions, such as Center Marker, Safety Marker, Grid Marker, to prevent the cut of the screen during the live, to leave the correct space for other functions during the live. It also includes other useful functions like Image Zoom, Check Field, Image Freeze, Color Temperature Adjustment, etc.

blackmagic atem mini



15.6” LCD, Full HD 1920x1080
The SEETEC ATEM156 equipped with a 15.6 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 800:1, and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It combines a wide 170° viewing angle in both horizontal and vertical directions. Easy viewing is ensured by reducing color changes due to the viewing angle.

15 inch studio monitor

15 inch director broadcast monitor



True Color . Professional Color Calibration
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

seetec-rec709



Accurate Color Reproduction
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

accurate-color-reproduction



quad view 4K director monitor



Easy Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment, and the ATEM156 can meet your needs. It is equipped with a simple control panel, , allowing you to be comfortable in the shooting process. With 4 separated HDMI buttons, you can switch the HDMI signal source quickly; with 4 shortcut keys (F1 ~ F4), you can customize the shortcut key functions and quickly call them out.

Business Presentations via Skype



4 X 4K HDMI Inputs and Outputs
Connect up to 4 cameras, game consoles or computers!
ATEM156 has 4 X 4K HDMI input and output, which can connect up to 4 cameras, game consoles, computers and other equipment. At the same time, it can also loop out 4 HDMI signals to other devices, such as ATEM Mini or ATEM Mini Pro. This is very useful for studio and live multi-camera shooting.

monitor with 4 hdmi input and loop



Realize ATEM Mini Multiview Monitoring
When your switcher does not have a multiview function, such as ATEM Mini, then you may need an ATEM156. When doing larger live productions with multiple cameras, you can first connect the camera to the ATEM156 monitor, check the shooting images of each camera on the ATEM156 monitor, and then put them to air, so you don't have to worry about the broadcast content. Help you preview the image and avoid the "blind cut" channel status.

live production switcher



Multiview
Quad View/ Dual View
When you’re creating a live program from multiple cameras, it’s important to be able to see more video sources at the same time. ATEM156 has four 4K HDMI inputs and outputs, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi camera monitoring in any location!

multi camera



Flexible Power Supply
The back of ATEM156 is equipped with a 12V DC power input and a V-mount battery plate. You can connect its 12V DC input for continuous power, or you can install a V-mount rechargeable battery on the V-mount battery plate to realize mobile applications. For outdoor shooting, you can use an external battery, and you can connect a standard DC power supply when using it in a shed or post-production room.

4 HDMI inputs outputs monitor



Attach to Camera Support or Hang It Anywhere
There are 3 mounting points located on the U-shaped bracket. The standard sized mounting points make it easy to mount and are compatible with third-party rigging equipment. Using the 1/4 inch holes, you can hang it from rigs or mounted it on the camera support, and use it as a monitor for the entire crew. And you can also set it up on a table to monitor.

Faster Video Production



VESA Mount Points
The included VESA mount points mean you don’t have to rack mount ATEM156, as you can use a wide range of computer monitor mounting hardware if you want to mount your broadcast monitor in cubicles, on walls or anywhere you need!

Broadcast Quality Switcher



Aluminum Metal Frame
The frame of ATEM156 is made from extremely durable and lightweight aircraft grade aluminum, the weight of the ATEM156 is as low as 1.57kg (without bracket), and this metal material has very sturdy and durable characteristics, suitable for high-intensity production such as mobile shooting, location shooting or live broadcast.

metal frame director monitor



Live Production Broadcast Monitor
ATEM156 is an affordable way to create incredible programs immediately from live events! It is very suitable for the use of broadcasters, live sports, concerts, lectures and seminars, eSports and gaming competitions, web broadcasters, and other scenarios. It can meet your indoor and outdoor multi-camera monitoring needs.

ATEM156



1. Full HD 1920x1080 resolution
2. HDMIX4 inputs and outputs
3. Special Features:
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* False Color
* Anamorphic (x1.33, x1.5, x1.8, x2.0)
* Display Rotate (0°, 90°, 180°, 270°, H Mirror, V Mirror)
* Check Field (Red, Green, Blue, Mono)
* Image Freeze
* Zoom
* pixel to Pixel
* Center Marker
* Safety Marker(80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
* Line Color (Red, Green, Blue, White)

4. Monitoring via front panel 3.5mm stereo headphone jack

blackmagic atem mini



  • Quad View
    Support 4x 4K HDMI inputs



Dual View
Meet your different screen display needs.



Input Swap
To exchange the input signal of the split screen.



Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows white highlight over parts of the image in focus.



Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.



Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.



Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1). You can switch the Mark color between Red, Green, Blue and White according to different tone of the subject.



Display Rotate
The 0°, 90°, 180°, 270°, H Mirror, V Mirror of the image around flip.

Display Spec.
 Model  ATEM156
 Screen Size  15.6" IPS
 Color Depth  16.7M colors (8-bits)
 Resolution  1920×1080 pixels
 Pixel Pitch  0.17925 (H) X 0.17925 (V)  mm
 Aspect Ratio  16:9
 Brightness  250cd/m²
 Contrast Ratio  800:1
 Backlight  LED
 Viewing Angle  85°/85°(L/R) 85°/85°(U/D)

Input
 4 X HDMI  HDMI (Support 4K 30Hz)

Output
 4 X HDMI  HDMI (Support 4K 30Hz)

Audio
 Audio Out  3.5mm Stereo Headphone

HDMI Support Format
480i/576i/480p/576p
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
3840×2160p (30/25/24), 4096×2160p (24)

General
 Input Voltage  DC12~24V
 Power Consumption  ≤12W
 Working Temperature  -10°C~50°C
 Storage Temperature  -20°C~60°C
 Unit Size (mm)  372L×262H×28.4D (mm) (Without Bracket)
 Unit Weight  1.57kg (Without Bracket)

Advanced Features
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* False Color
* Anamorphic (x1.33, x1.5, x1.8, x2.0)
* Display Rotate (0°, 90°, 180°, 270°, H Mirror, V Mirror)
* Check Field (Red, Green, Blue, Mono)
* Image Freeze
* Zoom
* Pixel to Pixel
* Center Marker
* Safety Marker (80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
* Line Color (Red, Green, Blue, White)
* Color Temperature Adjustment



Dimensions (Unit: mm)

Turn any event into a broadcast quality television program!
Whether you’re a broadcaster or even a student, educator, videographer, or web broadcaster, ATEM156 is perfect for creating broadcast quality programs from live events. This monitor is equipped with 4 x 4K HDMI inputs and outputs, and can be connected to various devices including consumer cameras, computers, video game consoles, and so on!



Broadcast Production
Create multi-camera programs in real-time! With ATEM156 you cut your show as it's happening, so you don’t have to spend time in post-production! It’s ideal for live sport, studio shows and more!



Internet Broadcasting
ATEM156 is ideal for small streaming programs because it is equipped with a 15.6-inch large screen and has 4 HDMI inputs, you can connect 4 cameras for wide, medium and close up shots.



Live Sports
ATEM156 lets you create big-league looking programs from your own sporting events! Whether you're playing table tennis, bowling or baseball, ATEM156 lets you connect multiple HDMI cameras so you can capture the match from multiple angles and see all of the action.



Conferences and Seminars
Instantly switch between a camera on the speaker and their computer with slides. You can add a picture in picture effects!



Gaming Competitions
Now you can capture every thrilling moment of gaming competitions, with multiple players connected via the HDMI inputs, and use the picture in picture effects and headset microphone to overlay a live commentator.

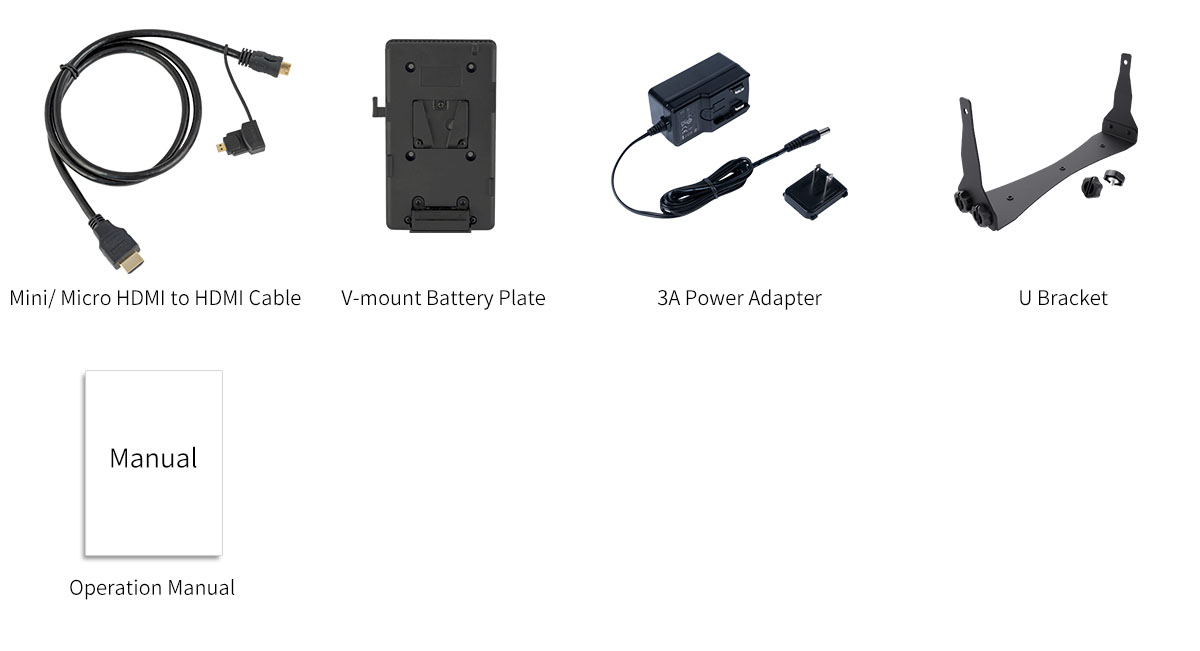

Standard Package Includes:
Mini/ Micro HDMI to HDMI Cable
1× V-mount Battery Plate
1× 3A
3A Power Adapter
1× U-shaped Bracket
1× Operation Manual
