SEETEC 12G270D 27inch 4K Broadcast HDR Monitor 12G-SDI HDMI UltraHD 3840x2160

Hits： 次

Model：12G270D

Introduction

Screen Size：  27" IPS
Resolution：   3840x2160 pixels
Aspect ratio： 16:9
Brightness：   300cd/m²

Input

2x12G-SDI, 1xHDMI 2.0, RS422, SFP GPI, Type-C

Output

2x12G-SDI, RS422, Stereo Headphone，speaker

DM

pdf

Download

    • OVERVIEW

    • FEATURES

    • SPECIFICATIONS

    • VIDEO

    • APPLICATION

    • ACCESSORIES

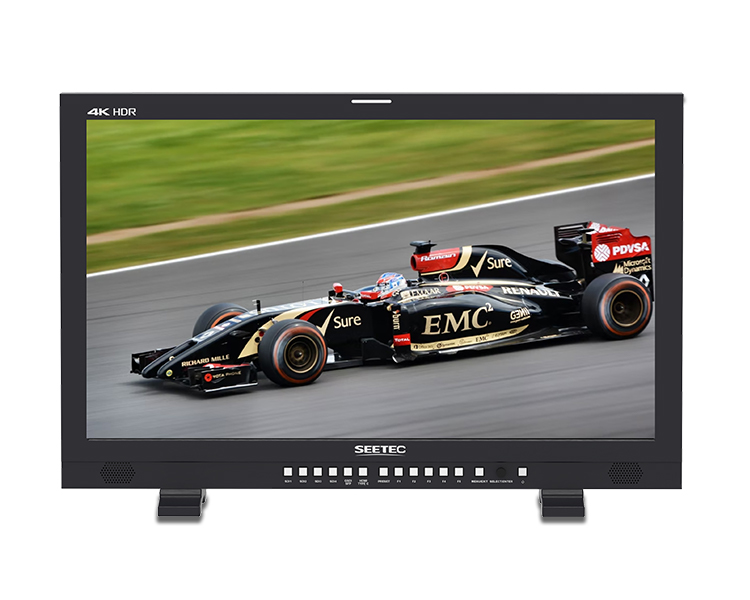

    27 inch 12G monitor



    Overview
    SEETEC 12G236D is a professional film and television production monitor equipped with 2*12G-SDI can support 4K signal input, and presenting you up to 2160p@60 native display. The 23.6-inch ultra HD IPS panel with the color depth up to 8 bit and a series of aux functions. And featuring the option of 12G-SFP Fiber Optic input connection for Ultra HD monitoring over massive distances! You also can connect your computer to control the monitor via applications. It is widely used in the pre-shooting and post color grading work of broadcast, film and television, and high-end advertising production.







    Key Features

    ● 27-inch 3840X2160 ultra HD large screen

    ● Rugged aluminium housing, durable

    ● Flexible and intuitive button operation, easy to use

    ● Supports multiple gamut, meet the different needs of photographers for color gamut.

    ● Mulitple display modes (Quade, Quadview triple side , Quadview triple bottom, PBP, PAP)

    ● SDR and HDR Image Comparison Function

    ● With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.

    ● Multiple interfaces, meet different needs (2*12G-SDI inputs and outputs, 1*HDMI 2.0 inputs, RS422 in and out, GPI, LAN, Type-C, SFP)

    ● Three Tally color(Red, Yellow, Green)

    ● Stereo Earphone output, speaker

    ● VESA standard mounting points support for hang wall installation



    12g sdi broadcast monitor



    Key Features:

    * 27-inch 3840X2160 ultra HD large screen
    * Rugged aluminium housing, durable
    * Flexible and intuitive button operation, easy to use)
    * Supports wide color gamut for broadcast TV and film standards, meet the different needs of photographers for color gamut.
    * Multiple display modes (Quad, Quadview triple side , Quadview triple bottom, PBP, PAP)
    * SDR and HDR Image Comparison Function
    * With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
    * Multiple interfaces, meet different needs (2*12G-SDI inputs and outputs, 1*HDMI 2.0 inputs, RS422 in and out, GPI, LAN, Type-C, SFP)
    * Three Tally color(Red, Yellow, Green)
    * Stereo Earphone output, speaker
    * VESA standard mounting points support for hang wall installation



    Display Spec.
     Model  12G270D
     Screen Size  27" IPS
     Color Depth  8Bit(1.67M)
     Resolution  3840×2160 pixels
     Pixel pitch  0.1369(W) x 0.1369(V) mm
     Aspect Ratio  16:9
     Brightness  300cd/m²
     Contrast Ratio  1000:1
     Backlight  LED
     Viewing Angle  89°/89°(L/R) 89°/89°(U/D)

    Input
     2 X 12G-SDI  12G-SDI
     1 X HDMI 2.0  HDMI (support 4K)
     1 X RS422  RS422
     1 X GPI  GPI
     1 X USB  USB (upgrade and LUT import)
     1 X LAN  Ethernet
     1 X Type-C  Tpye-C (compatible with Lightning 3)
     1 X SFP  SFP Module (optional)

    Output
     2 X 12G-SDI  12G-SDI
     1 X RS422  RS422

    Audio
     Audio  Stereo Headphone, Speaker

    SDI Support Format
     SMPTE-425M-A/B  1080p (50/59.94/60)
     SMPTE-274M  1080p (23.98/24/25/29.97/30p/psf)
     SMPTE-296M  720p(60/59.94/50)
     SMPTE ST 2036-1:2009  3840×2160(23.98/24/25/29.97/30/50/59.94/60p)
     SMPTE ST 2048-2:2011  2048x1080(23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)
     SMPTE ST 2081  3840x2160 (30/25/24p)
     SMPTE ST 2082  3840x2160 (60/50/30/25/24p)

    HDMI Support Format
    4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080i (60 / 59.94 / 50)
    720p (60 / 59.94 / 50)


    General
     Input Voltage  AC 100V~240V
     Power Consumption  ≤75W
     Working Temperature  -10°C~55°C
     Storage Temperature  -20°C~60°C
     Unit Size
     Unit Weight
     Outer Carton Qty
     Outer Carton Size
     Gross Weight

    Advanced Features
    * Built-in Multi camera Delog LUTs
    * User 3DLUTs upload via USB (up to 8)
    * Support GPI control
    * Support dynamic IMD, support TSL 3.1/4.0/5.0 and IMAGE VIDEO protocol
    * Support TALLY
    * Support 16-ch embedded audio meters display
    * Histogram
    * HDR
    * Color Preset Mode (T.709, BT.2020 , DCI-P3, PQ_DCI-P3, PQ_BT.2100, HLG_BT.2100)
    * Gamma-EOTF (Gamma2.0, Gamma2.2, Gamma2.4, Gamma2.6, SMPTE ST 2084(PQ), ITU-R BT.2100(HLG), S-Log3, Canon Log)
    * PQ Options (PQ-300, PQ-500, PQ-1000)
    * Timecode Display
    * Color Gain (Red, Green, Blue)
    * Color Bias (Red, Green, Blue)
    * Under Scan, Over Scan
    * EETF
    * Center Marker
    * Safety Marker (80%、85%、88%、90%、93%)
    * Marker Mat (16:9, 15:9, 14:9, 13:9, 4:3, 2.35:1, 1.85:1)
    *Waveform (Luminance waveform, component waveform, RGB waveform, RGB overlay waveform )
    * Gamma Warning
    * Gamma (ITU-R BT.709、SMPTE-C、EBU、DCI-P3、ITU-R BT.2020)
    * Crosshatch

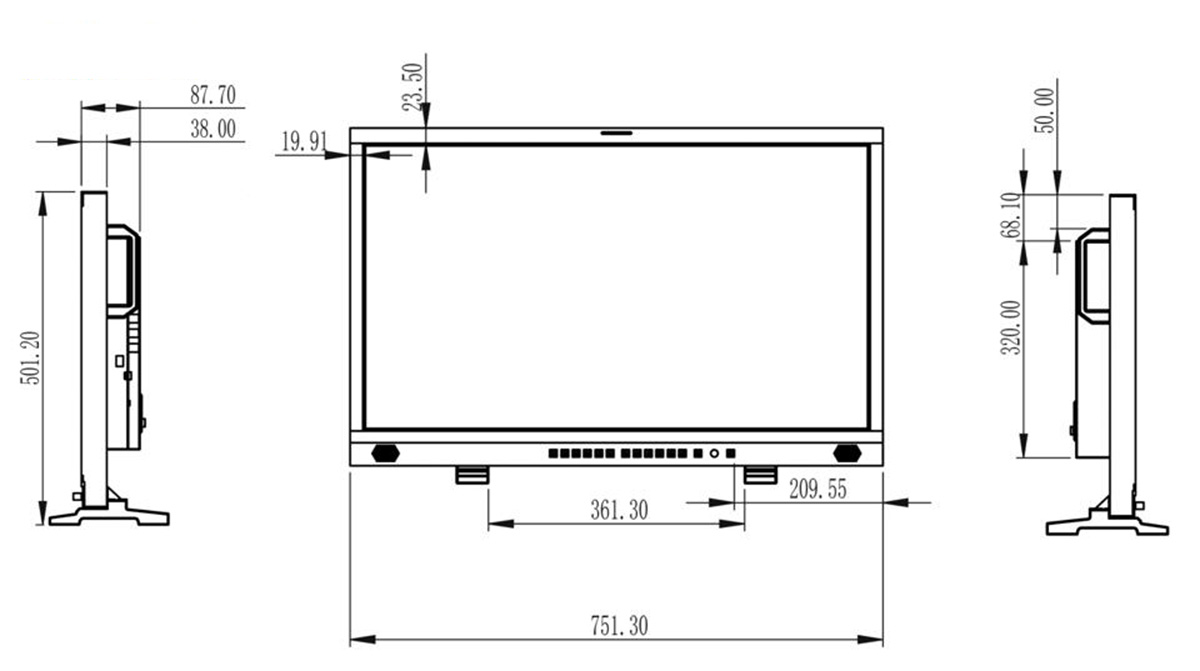

    Dimensions (Unit: mm)

    Standard Accessories:
