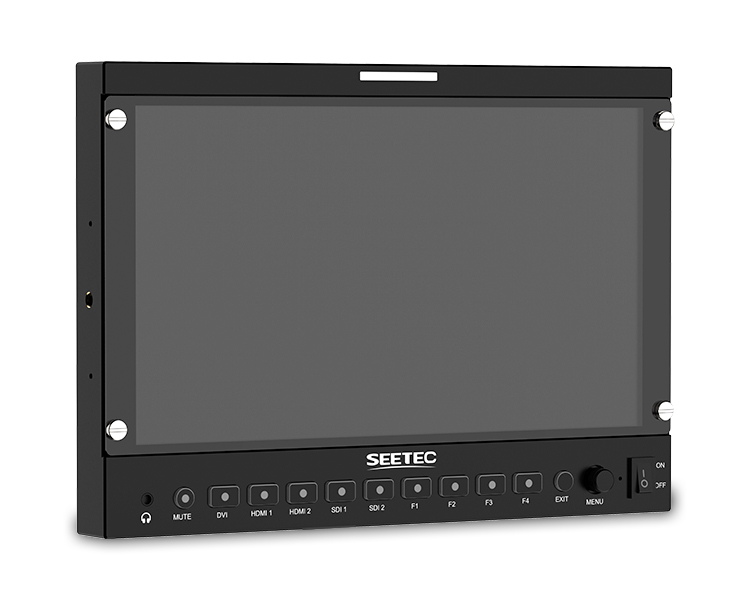

SEETEC P133 PRO 13.3 inch 1000nit High Bright Broadcast Monitor Full HD 1920x1080

Hits:

Model:P133 PRO

Introduction

Screen Size:  13.3" IPS
Resolution:   1920x1080 pixels
Aspect ratio: 16:9
Brightness:   1000cd/m²

Input

2*HDMI 2.0, 2*3G-SDI, 1*DVI 1*Tally 1*USB

Output

1*HDMI 2.0, 2*3G-SDI, Stereo Headphone,speaker

DM

pdf Shop/2024/6/P133PRO&P215PRO-DM-EN.pdf

Download

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES

13 inch broadcast monitor

high contrast monitor

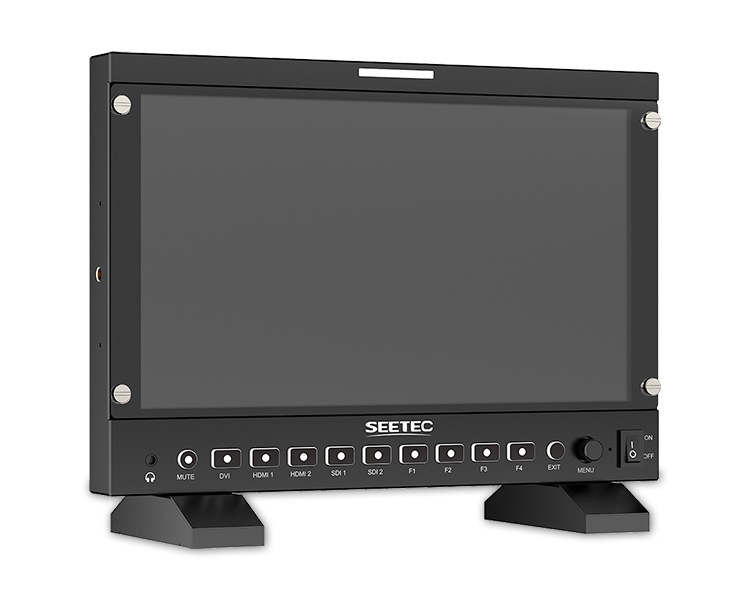

High Quality Professional Monitoring
P133 PRO is a high quality monitor that is versatile enough to be used for broadcast studio,live production or crew outdoor shooting. P133 PRO works with all SD/HD/3D-SDI and up to 4K HDMI@60Hz video formats and including XLR,DC IN power input and V-mount battery plate so you can use it with battery or plug it into DC power. A series of camera auxiliary functions can help photographer to compose on-site and save post production time. This monitor can be mounted on wall through a VESA stand in addition to a desktop stand.

large screen field monitor

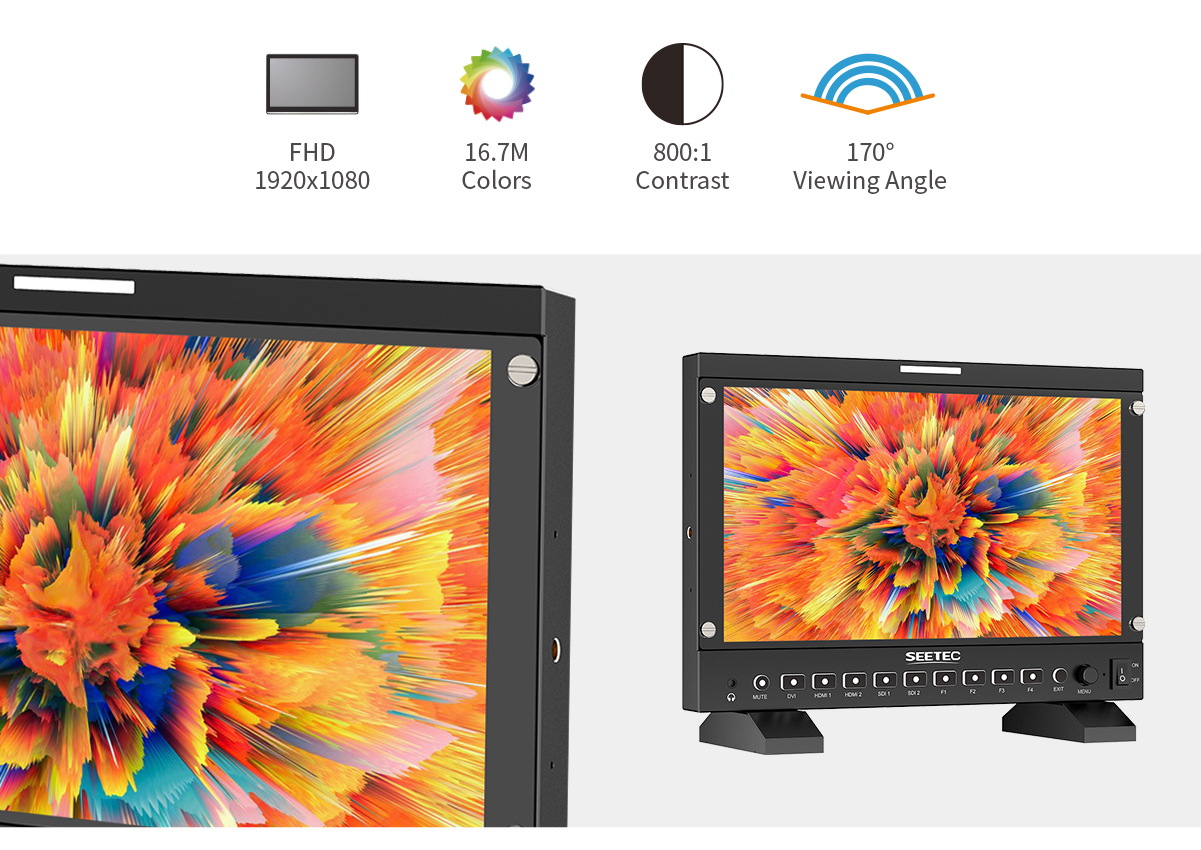

13.3-inch Full HD Screen
Clearly checking and capture every nuance
With extremely high resolution 13.3-inch IPS panel,a wider field of view and clearly present more detailed image. 8bit color depth with 16.7M colors display.



rich color monitor

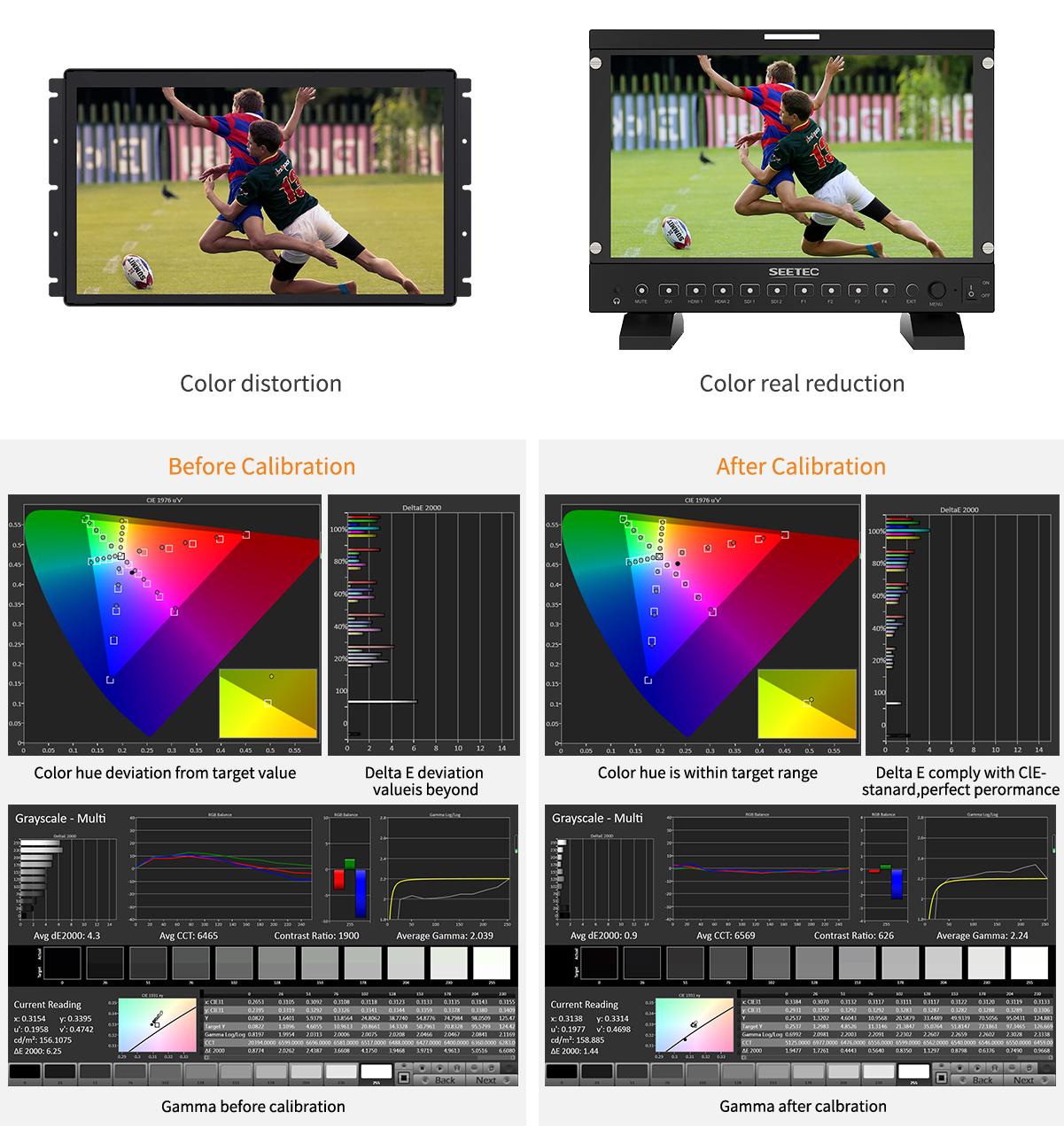

CalMAN Software Calibration, True Color Presentation
Each monitor is calibrated by CalMAN professional color calibration software before ex-factory to ensure color accuracy and good reproduction.

accurate calbration monitor



1000NIT, Daylight Viewable
High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.

sunlight visible monitor

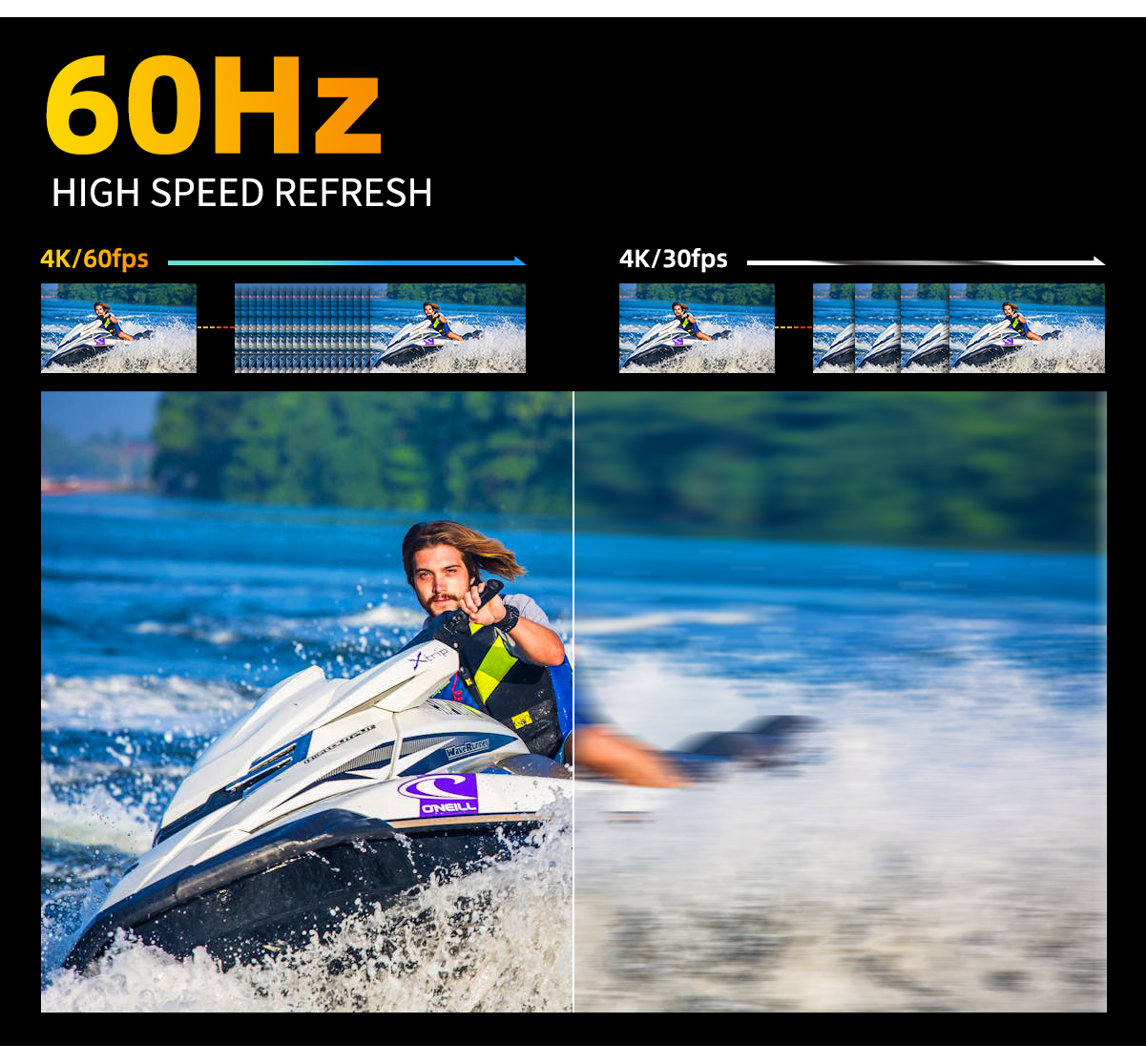

4K 60Hz,Provide Smoother Experience
HDMI upgraded for 4K at 60HZ, capable of transmitting double the video data of 4K at 30HZ. Provide smoother visuals and maintains high-frame-rate dynamic images from cameras.

4k hdmi monitor

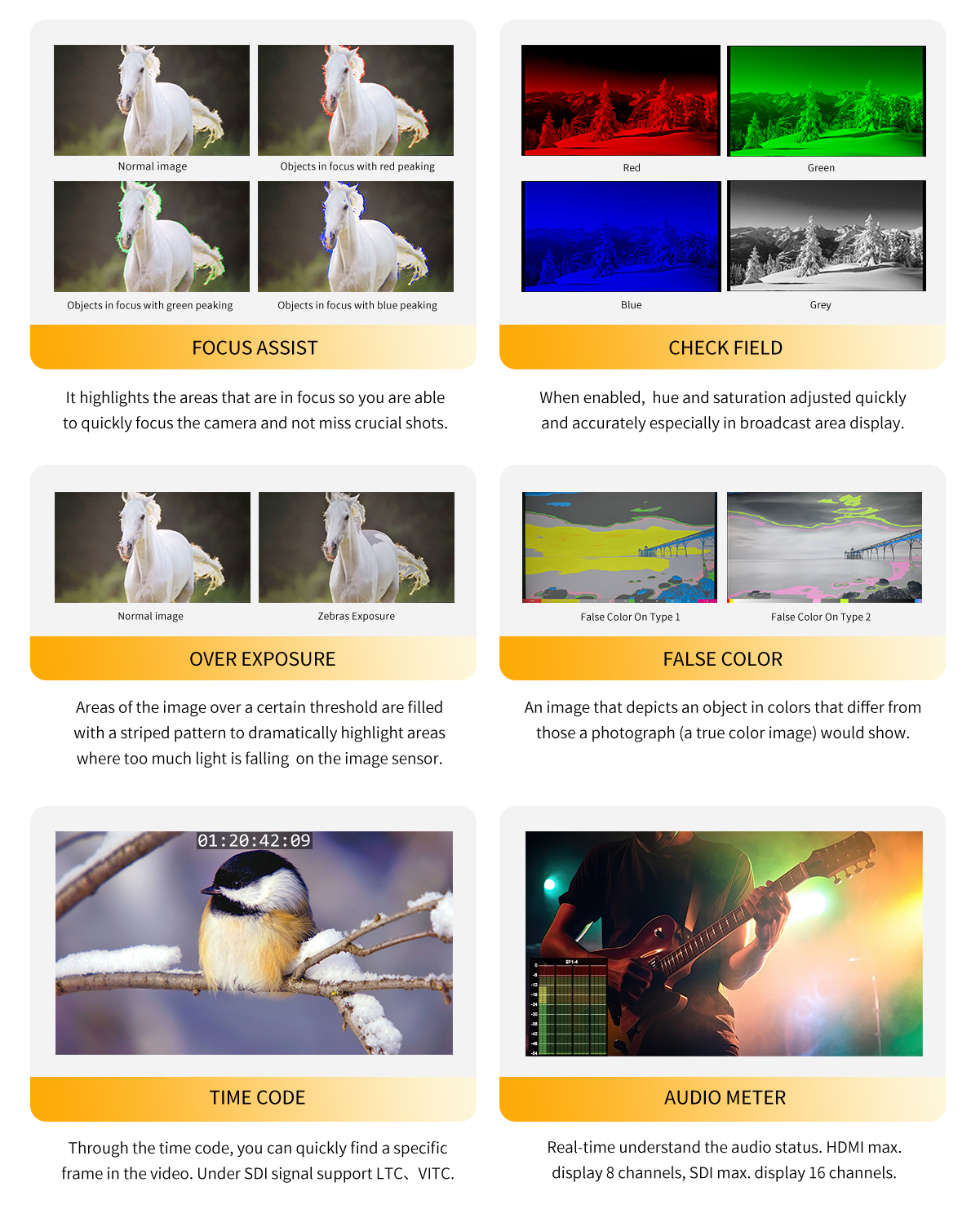

Full Range of Auxiliary Functions



full featured monitor



zoom mode monitor





Load Custom 3D LUTs,Preview Filming Look in Field Shooting
Supports upload 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. P133 PRO allows you to load internally up to 32 custom LUTs, looks or profiles at any time via USB flash driver and instantly select between them, maintaining creative intent, always.

custom lut monitor



HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty,it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

dynamic hdr monitor

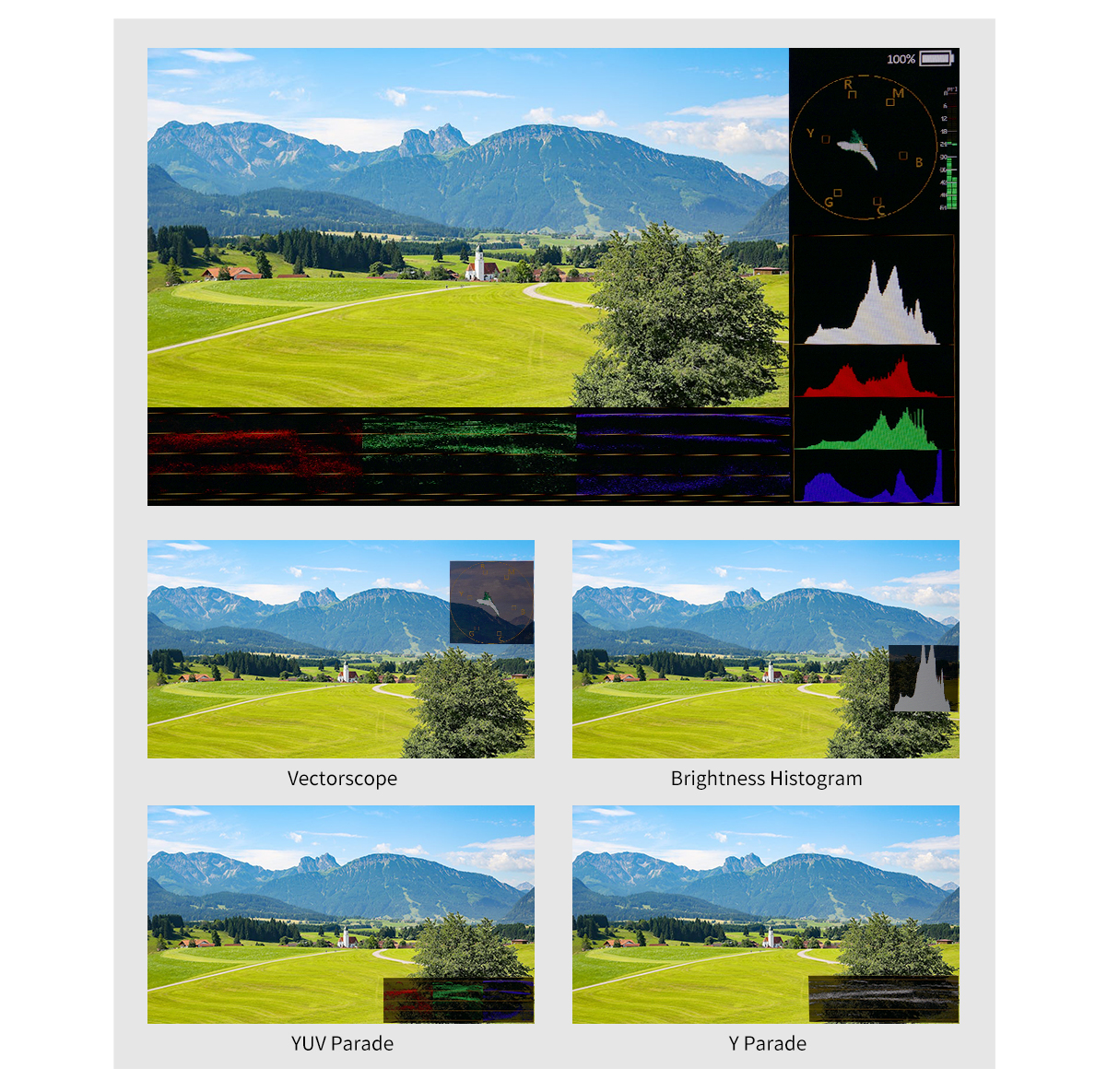

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position. P133 PRO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

all waves monitor

full hd broadcast monitor

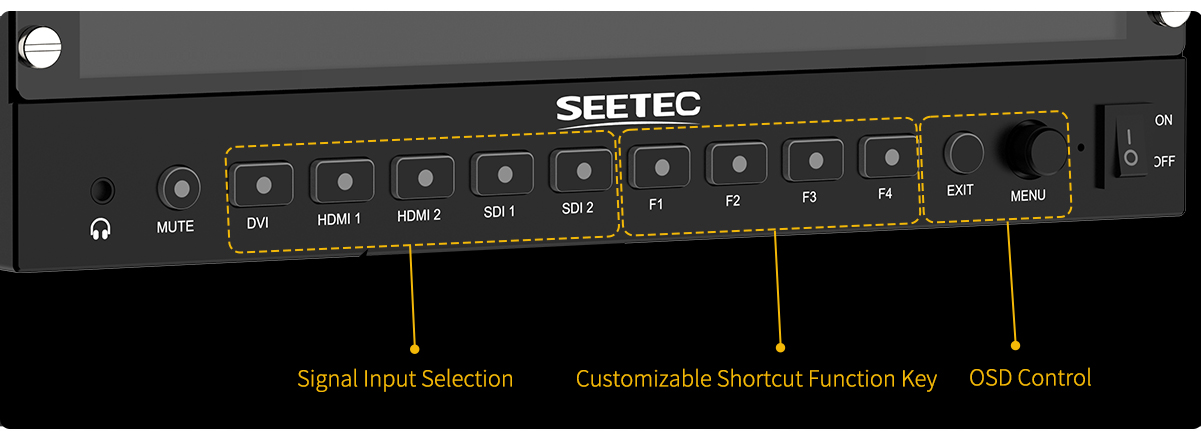

Intuitive Button Operation
When you are busy at the shooting scene,you need to be able to easily control the equipment.P133 PRO comes with multiple intuitive buttons, you able to one-key mute or easy to switch the signal input source,and the button with green LED backlight,you can fast to know the signal being played even if the dim environment. The 4 customizable shortcut keys, you can custom shortcut function according to your needs, such as all waves,focus assist and so on, improve the shooting efficient.

button setup monitor

stable desktop montior

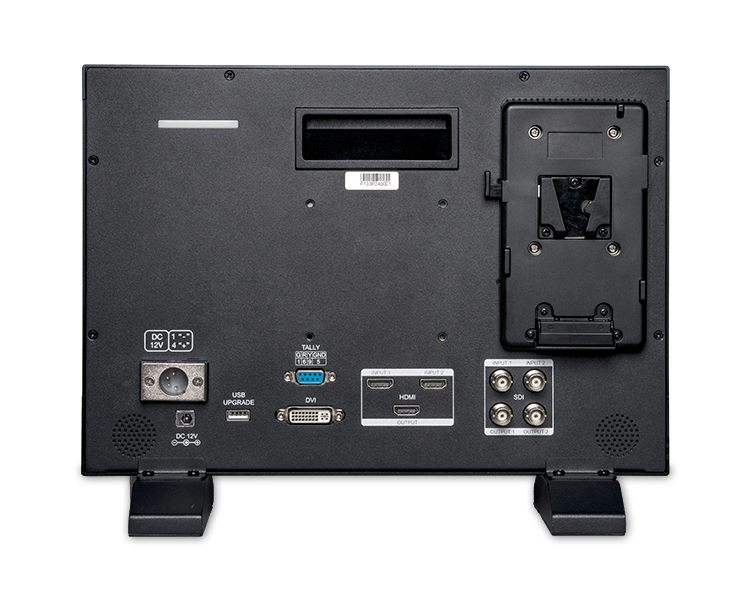

Compatible with Camcorder and DSLR
Equipped with 3G-SDI, HDMI2.0 DVI signal ports, compatible with professional camcorder and the latest DSLR cameras on the market.

rich interface monitor



3-color TALLY Light, Enhance Team Cooperation
The front and rear panel of P133 PRO including tally light, it can display in red, green or yellow Tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.

tally indicator monitor

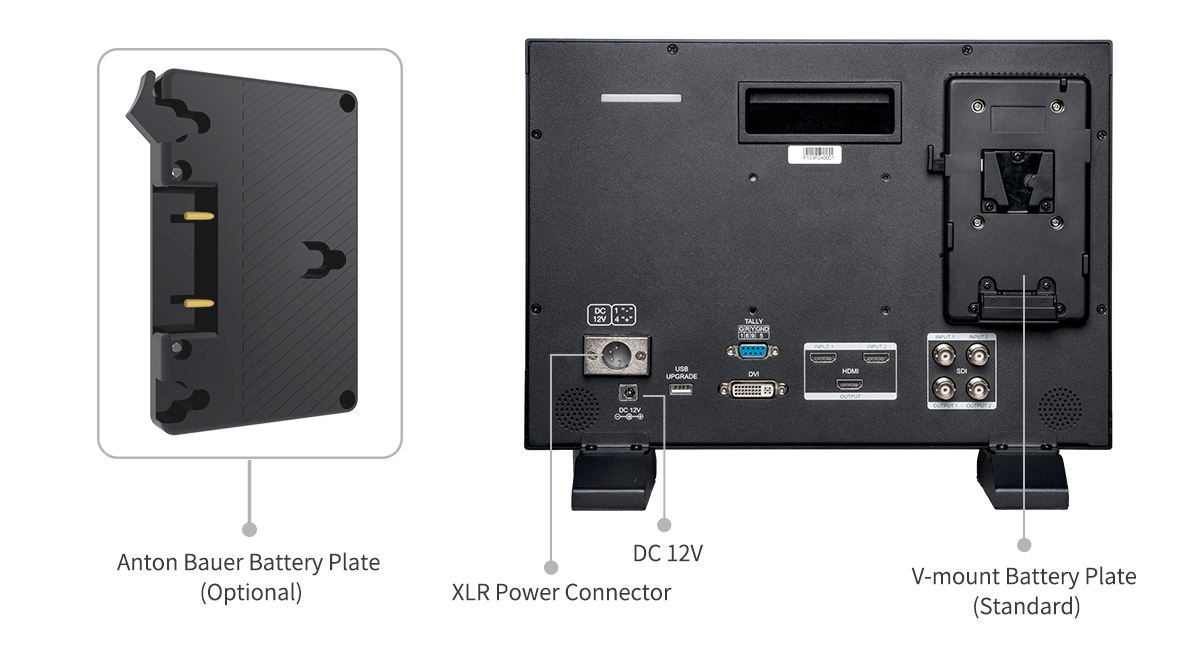

Multiple Power Supply Modes
Via V-mount battery plate (standard) or Anton Bauer battery plate (optional),support to install V-mount battery or Anton Bauer Battery; via XLR or DC IN interface,support DC10-24V XLR power adapter or 5.5*2.1mm power adapter.

flexible power supply monitor

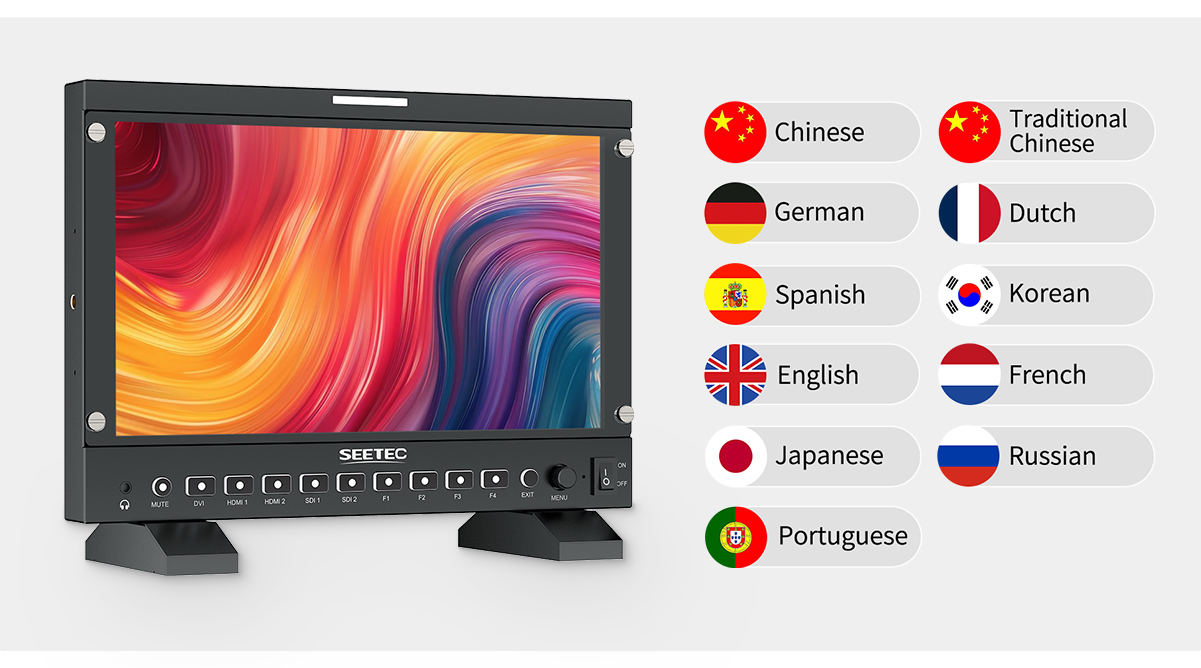

11 Languages Supporting

Built-in up to 11 languages, that means P133 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need.

multiple language monitor



VESA Bracket Mount Point, More Monitoring Method

The rear of monitor with 75x75mm VESA mount points, you can mount it in rack or hang it on the wall. Ideal for broadcast studio or live production.

vesa mount monitor

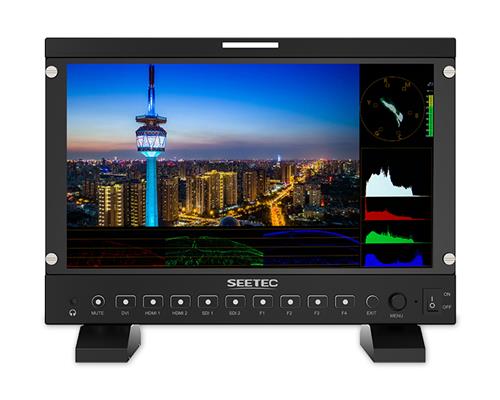

broadcast studio monitor

on site monitor



Product Comparison

product comparison monitor

Key Features:

* 13.3-inch 1920x1080 full HD large screen,view details with confidence
* 1000nits high brightness, ideal choice outdoor shooting
* Intuitive buttons operation, 4 custom function shortcut buttons to improve work efficient
* Custom 3D-LUT, preview film look
* Support 4K@60 HDMI Input and Output
* Under HDMI signal the audio meter level can be display max 8 channels; under SDI signal can be display max.16 channels
* HDR monitoring, what you see is what you get
* Built-in front and rear Tally light, enhance team cooperation
* The top, left, and right side of the protective case are equipped with 1/4 "and 3/8" screw threads, which can be used to install video transmission or other devices
* Stereo Earphone output



Functions:
* All waves (waveform, vector, histogram and embedded audio)
* Waveform (RGB、YUV、Y)
* Vector
* Histogram(RGB1、RGB2、Y)
*Focus Assist ( Red, Green, Blue three colors optional highlight over parts of the image in focus; focus level 1~10)
*Embedded Audio (HDMI signal with pr1, gp1, gp2, gp12 modes; SDI signal with pr1, gp1, gp2, gp12, gp3, gp4, gp14 modes)
*Over Exposure (10IRE~100IRE)
* Check Field (Red, Green, Blue, Gray)
*False Color (Normal, ARRI)
*Time Code (LTC, VITC) for SDI
*Grids (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9)
*Safe Frames ( 80%, 85%, 90%, 93%, 96%, 2.35:1)
*Center Marker
*Ratio Marker(4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
*Scan Mode (Under Scan, Over Scan)
*Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
*Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User.Under User, you can custom adjust nx 1.20x~2.00x)
*Image Flip (H Flip, V Flip, H_V Flip)
*Zoom Mode(2X、4X、9X、16X、User. Under User, you can adjust 100%~200%)
*Image Freeze
*Pixel to Pixel
*3D-LUT(built in SLOG2, SLOG3, LOGC; support upload custom LUTs up to 32)
*HDR (HLG1, HLG2, HLG3)
*Display Adjustment (can be adjust screen Backlight, image Brightness,Contrast,Saturation, Tint 0~100)
*Colortemp (5600K, 6500K, 9300K, User)



Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.



Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.





Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.



RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.



Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring.

Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.



Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip



Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.





Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.















Display Spec.
 Model  P133 PRO
 Screen Size  13.3" IPS
 Color Depth  16.7M
 Resolution  1920×1080 pixels
 Pixel pitch  0.153 (H) X 0.153 (V) mm
 Aspect Ratio  16:9
 Brightness  1000cd/m²
 Contrast Ratio  800:1
 Backlight  LED
 Viewing Angle  85°/85°(L/R) 85°/85°(U/D)

Input
 2X SDI  3G-SDI
 2 X HDMI  HDMI-A
 1 X DVI  DVI-I
 1 X Tally  9 pin
 1 X USB  USB (upgrade and LUT import)

Output
 2 X SDI  3G-SDI
 1 X HDMI  HDMI-A

Audio
 Audio  Stereo Headphone, Speaker

SDI Support Format
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

HDMI Support Format
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
4K 3840×2160p (60/50/30/29.97/25/24/23.98Hz)
4K 4096×2160p (60/50/30/29.97/25/24/23.98Hz)


General
 Input Voltage  DC 12V
 Power Consumption  ≤28W
 Working Temperature  0°C~50°C
 Storage Temperature  -20°C~60°C
 Unit Size  330.5x231x30.15mm
 Unit Weight  2.07kg(w/o feet stand)
 Outer Carton Qty  1
 Outer Carton Size 385*115*300mm
 Gross Weight kg

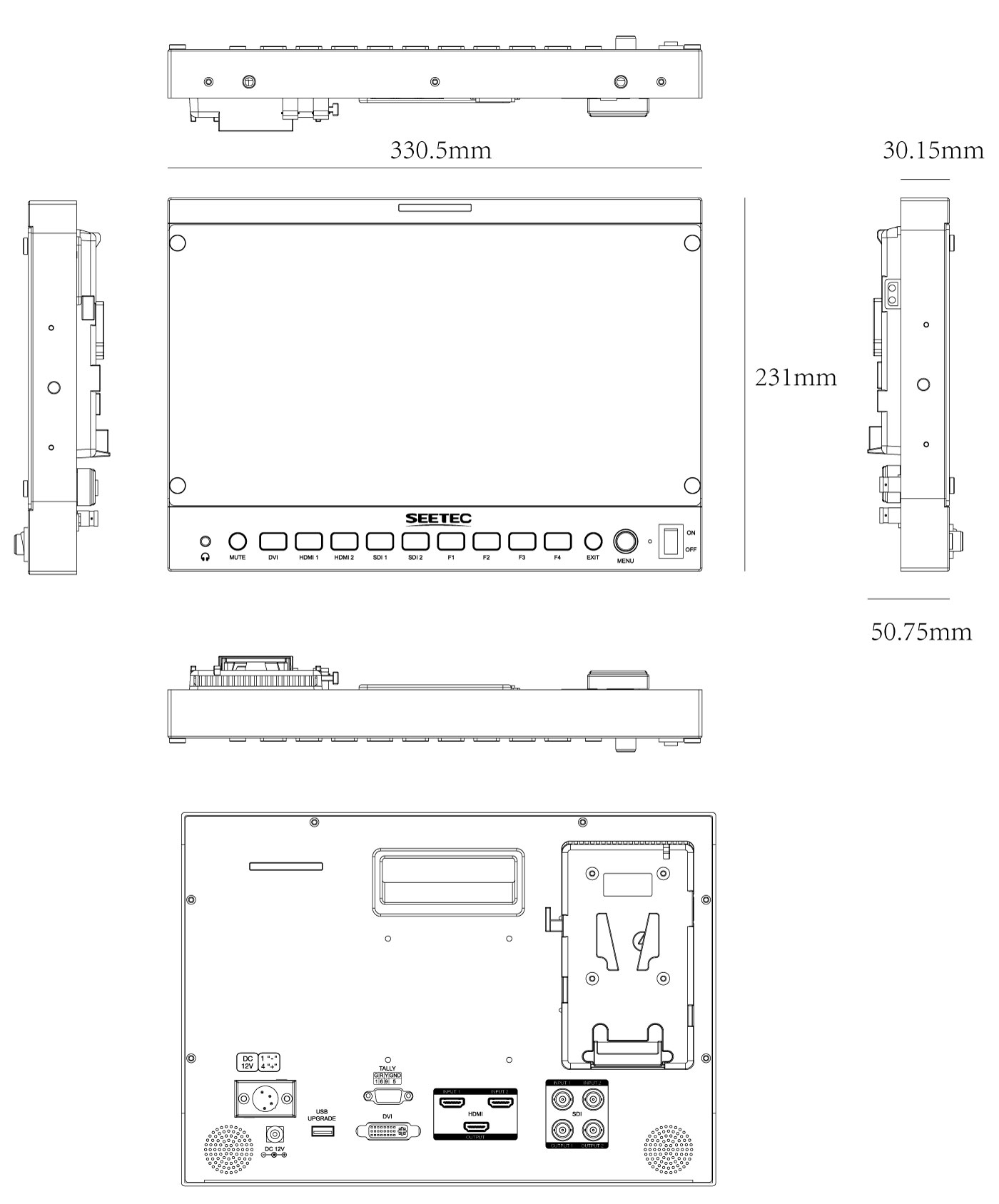

Dimensions (Unit: mm)

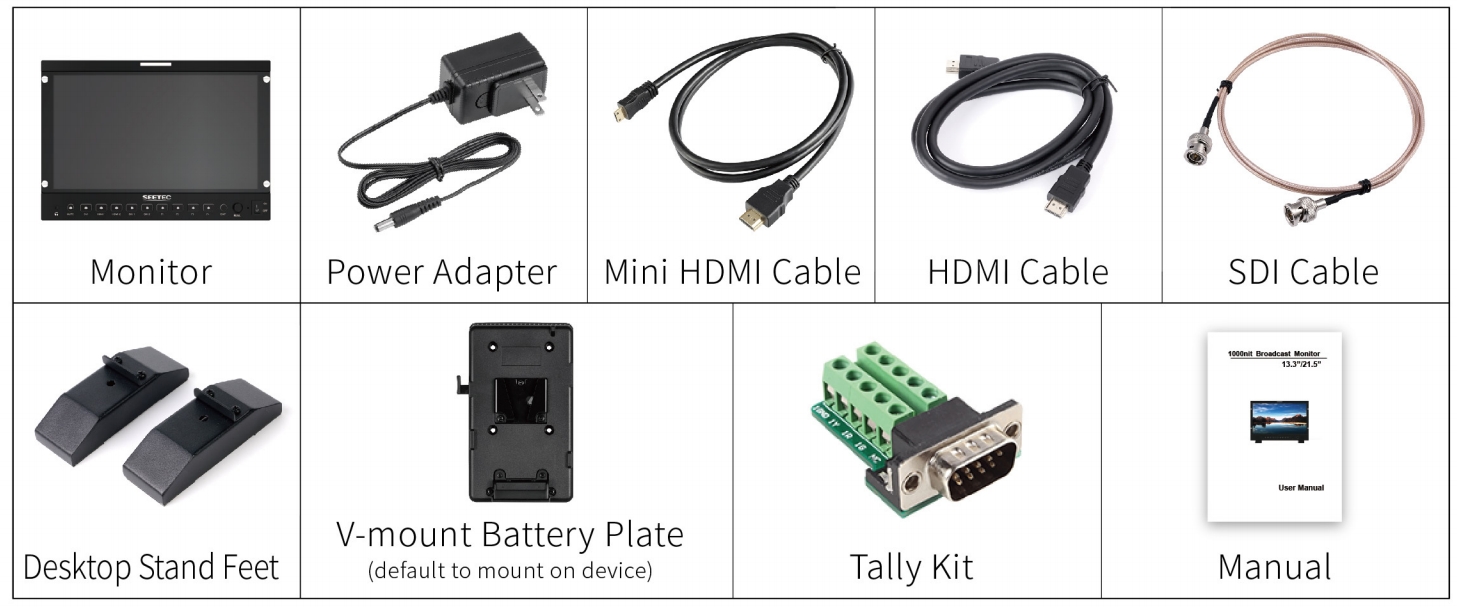

Packaging List:
  1× monitor
  1× 3A Power Adapter
  1× Tally Kit
  1× V-mount Battery Plate (default to mount on device)
  1× Mini HDMI Cable
  1× HDMI Cable
  1× SDI CableCable
  1× User Manual Manual
