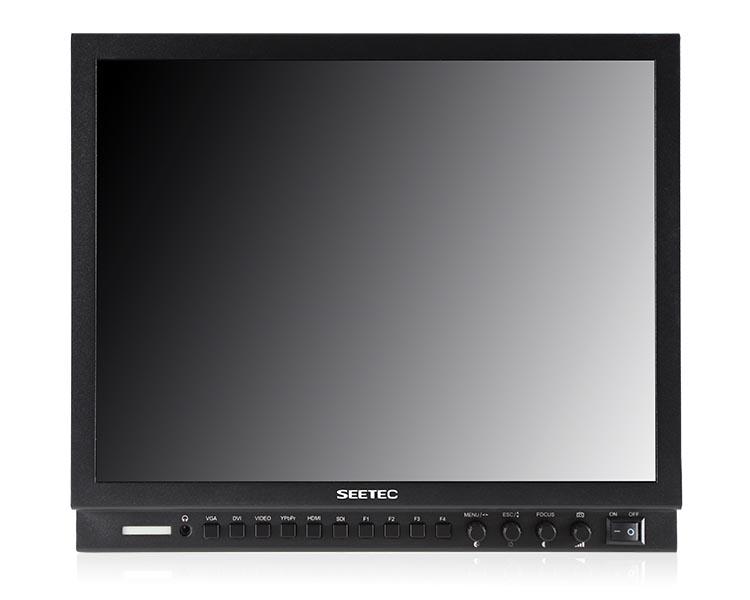

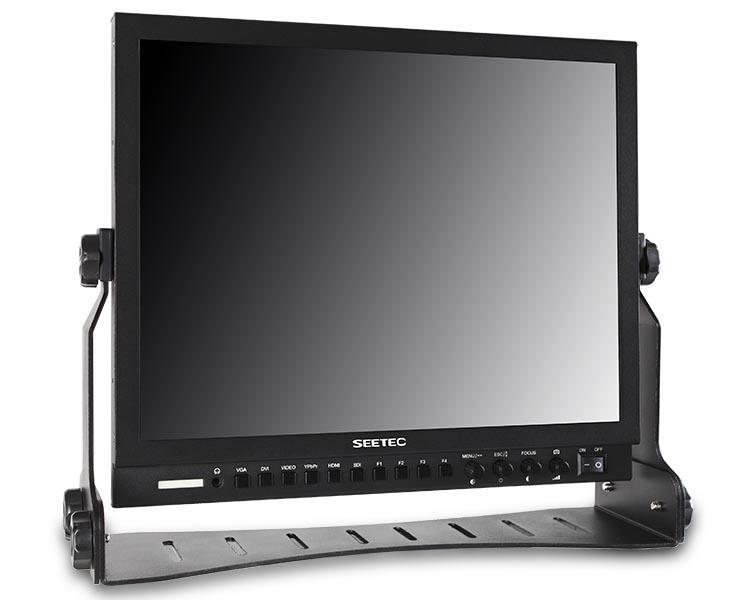

15" Aluminum Design 1024×768 HD Pro Broadcast LCD Monitor with 3G-SDI HDMI AV YPbPr P150-3HSD

Hits： 次

Model：P150-3HSD

Introduction

Screen Size：  15"
Resolution：   1024x768 pixels
Aspect ratio： 4:3
Brightness：   350cd/m²

Input

3G-SDI, HDMI, YPbPr, DVI-I, Video, Audio(L/R)

Output

3G-SDI, HDMI, YPbPr, Video, Stereo Headphone, Speaker(built-in)

DM

pdf Shop/2018/6/Specification.jpg

Download

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES


SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
Stability and Reliability
The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability!

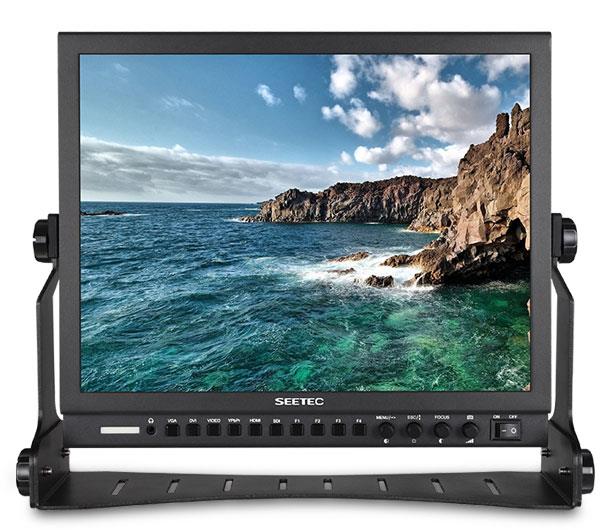

  • 1024X768 Pixels HD Panel
    With the P150-3HSD's large size 15-inch 1024×768 HD panel, 4:3 ratio, 800:1 Contrast, 350cd/m², it's good choice for film crews field application.

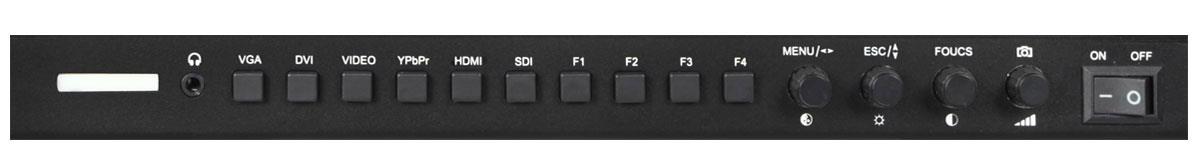

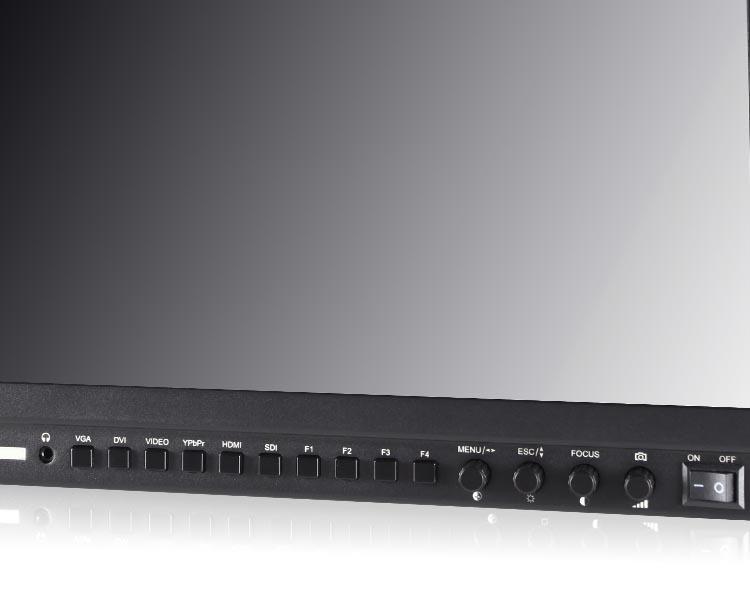

Innovation OSD Operation
P150-3HSD not only set up four "F key" for peaking focus asist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.

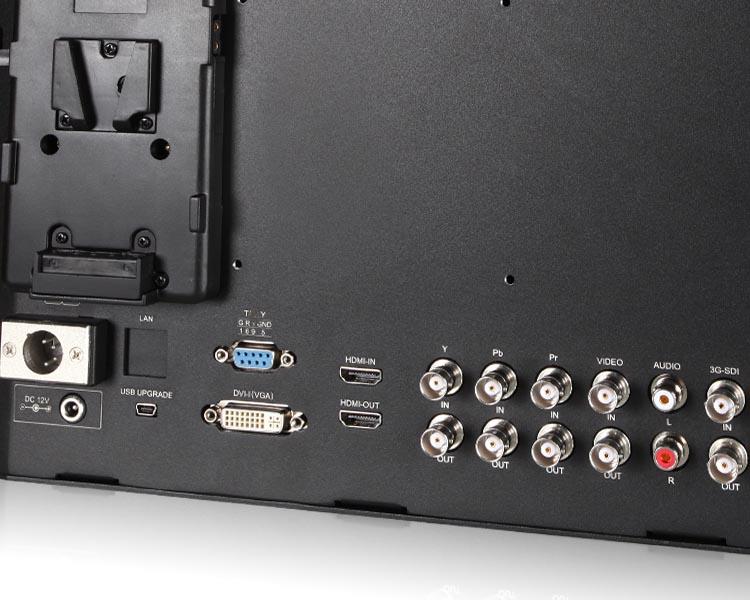

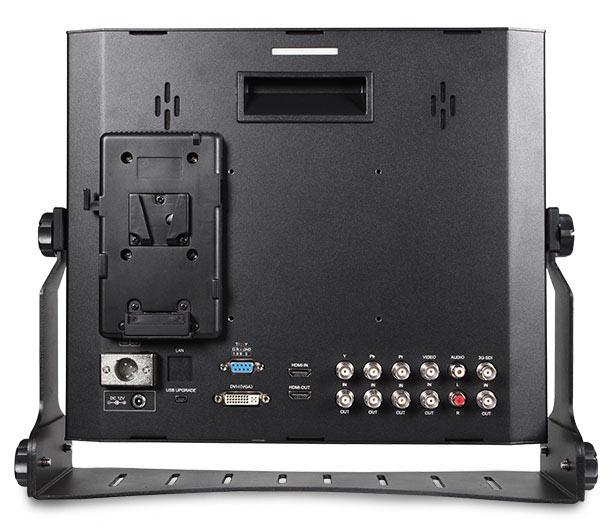

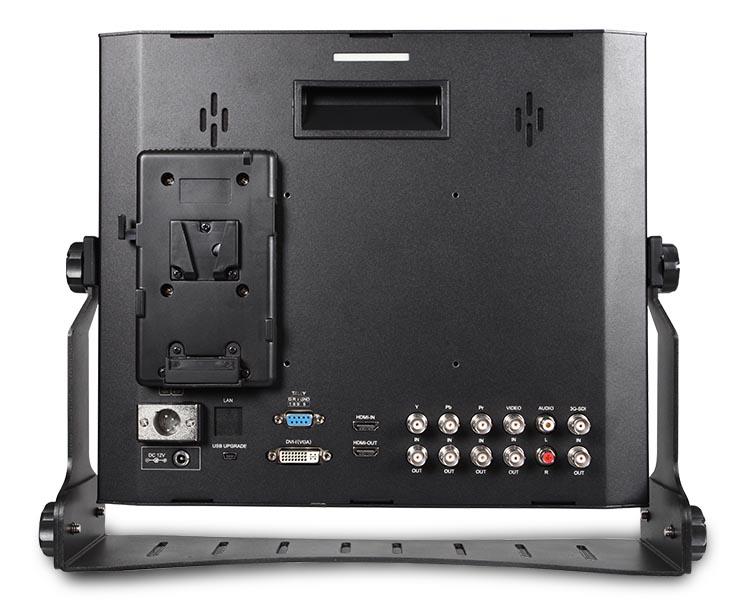

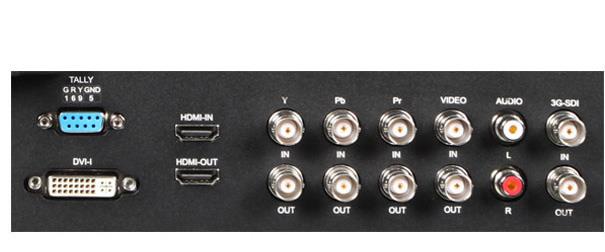

  • Multiple Inputs and Outputs
    Input:
    3G-SDI X 1
    HDMI X 1
    YPbPr X 3
    DVI X 1
    Video X 1
    Auido (L/R) X 2
    Output:
    3G-SDI X 1
    HDMI X 1
    YPbPr X 3
    Video X 1
    Audio:
    Stereo Headphone
    Internal Speaker

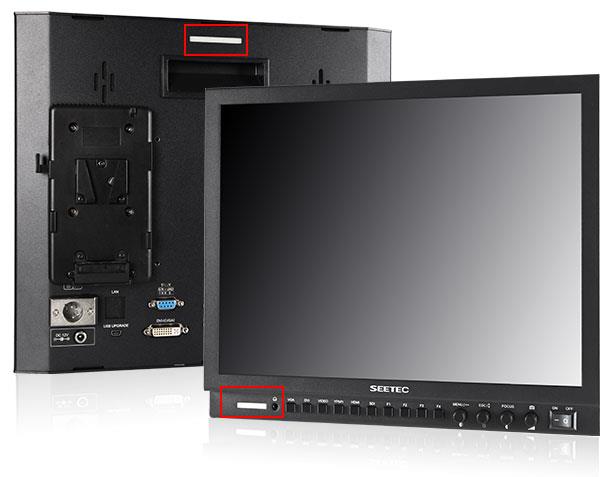

  • 3-color Tally Light
    Both front and rear side
    There is front and rear TALLY lights for with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel.

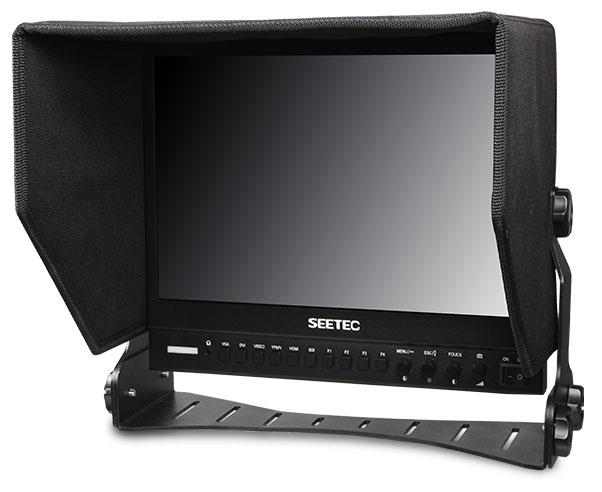

  • Portable Sunshade
    New extended screen hood, to acquire the ideal visual effect in almost all environments.



1. Wide view angle, HD 1024×768, bright, colorful display
2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R) inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
6. Power using included 12-volt supply or use standard 4-pin XLR
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Camera Mode Function
It will be full screen under camera mode.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

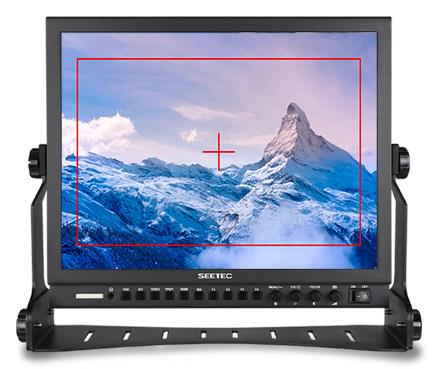

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.



Display Spec.
 Model  P150-3HSD
 Screen Size  15"
 Resolution  1024×768 pixels
 Pixel Pitch  0.297(H)×0.297(V) mm
 Aspect Ratio  4:3
 Brightness  350cd/m²
 Contrast Ratio  800:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 65°/80°(U/D)

Input
 1 X BNC  3G-SDI
 1 X HDMI  HDMI
 3 X BNC  YPbPr
 1 X DVI-I  DVI-I
 1 X BNC  Video
  2 X RCA  Audio(L/R)

Output
 1 X BNC  3G-SDI
 1 X HDMI  HDMI
 3 X BNC  YPbPr
 1 X BNC  Video

Audio
 Audio Out  Stereo Headphone, Speaker

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General
 Input Voltage  DC9～24V
 Power Consumption  ≤15W
 Working Temperature  -10°C~50°C
 Storage Temperature  -20°C~60°C
 Unit Size  331.1L×282.6H×33.8D mm (W/O Bracket)
 Unit Weight  2.07kg (W/O Bracket)/ 2.60kg (W/Bracket)
 Outer Carton Qty  2
 Outer Carton Size  417*332*477 (mm)
 Gross Weight  10.2kgs

Advanced Features
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%,2.35:1)
* Image Freeze
* Image Flip (H, V, H/V)
* Camera Mode
* Pixel-to-Pixel
* Check Field (Red,Green,Blue,Mono)
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
* Built-in LED tally indicators



Dimensions (Unit: mm)

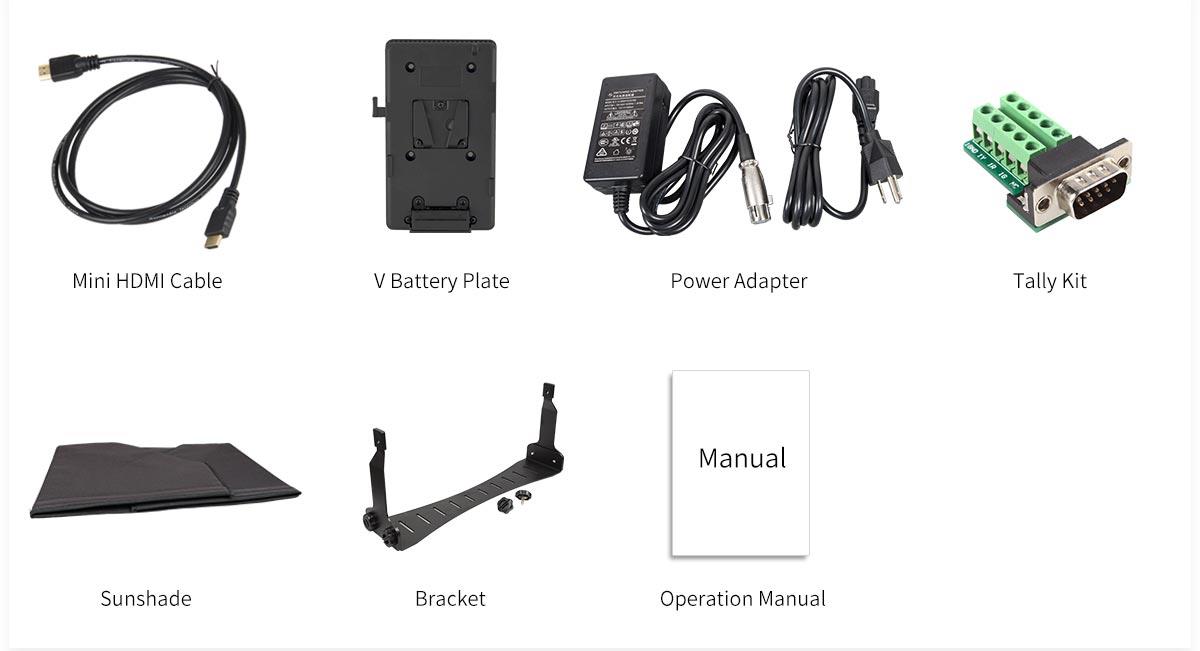

Standard Accessories:
1× Mini HDMI Cable
1× V Battery Plate
1× 1.5A Power Adapter
1× Tally Kit
1× Sunshade
1× U bracket
1× Operation Manual
