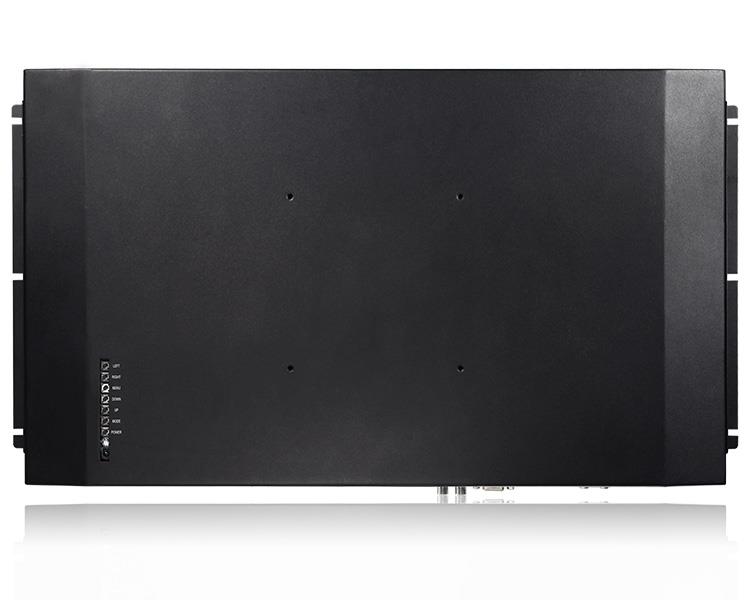

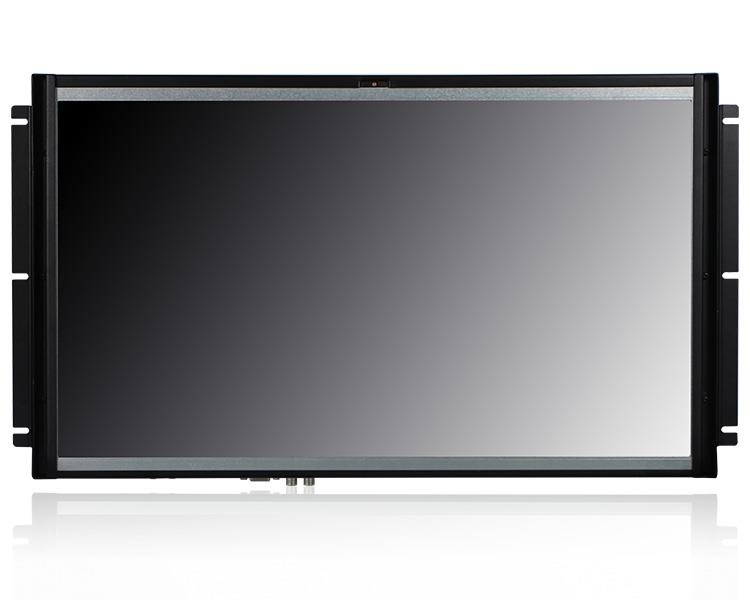

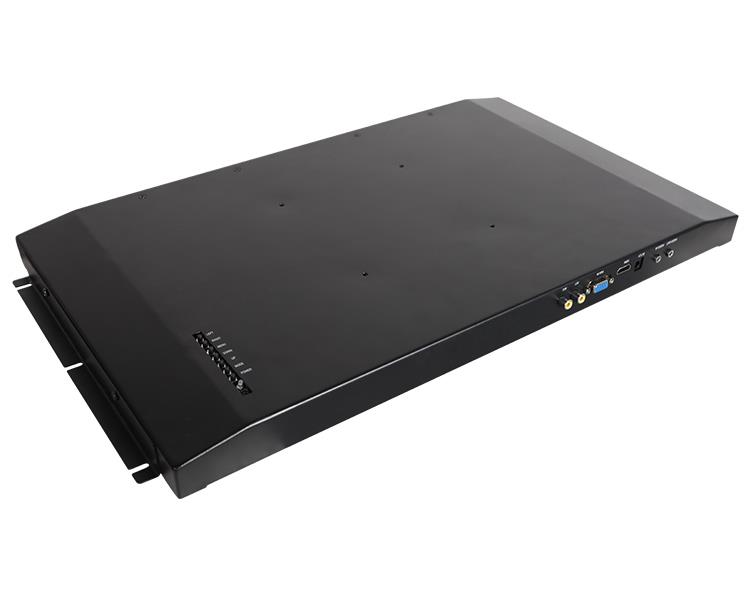

21.5" Light Sensor Digital Outdoor Sunlight Readable Lcd Open Frame Monitor P215-9AH

Hits： 次

Model：P215-9AH

Introduction

Screen Size：  21.5"
Resolution：   1920×1080 pixels
Aspect ratio： 16:9
Brightness：   1000cd/m²

Input

HDMI, VGA, AV1, AV2, Audio

Output

Audio

DM

pdf Shop/2017/9/SEETEC-P215-9AH-Specification.pdf

Download

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES


SEETEC's Open Frame LCD display is designed for commercial and industrial applications, Auto Light Sensor, high brightness 1000cd/m² for sunlight readable. Features wide operating temperature, high brightness, and customized mechanical design; fulfill the demand for extreme environments. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality. And guaranteeing product life cycle longevity, stability, and reliability.
Perfectly suitable for kiosks, ATM, POS, marline,  military,  medical, transportation, Avionics, industrial automation, gaming, digital entertainment display and outdoor application.
Customization Services
We're able to design and adjust both hardware and software to match your cost and application requirement. Screen Size Optional, and the interface optional.
Features Highlights
As display technologies evolve, so do our customer's imaginations. SEETEC continues to engineering solutions to meet the diverse needs of the display marketplace. Whether your application is for a kiosk, CRT replacement, HMI, POS, Public Information Display or Digital Signage, this is the simple all-in-one solution for you. Easily integrated, we combine performance and quality with the versatility of an open frame chassis mountable product. Select from a wide variety of optional touch screens, protective glass, films or privacy shields. SEETEC custom designs and builds for OEM's, providing custom enclosures, private label products, display selection assistance, special power requirements and customized warranty and service programs.



Display Spec.
 Model  P215-9AH
 Screen Size  21.5"
 Color Depth  16.7M
 Display Mode  TN Mode, Normally White
 Resolution  1920×1080 pixels
 Pixel Pitch  0.24825×0.24825 mm
 Aspect Ratio  16:9
 Brightness  1000cd/m² (Light Sensor)
 Contrast Ratio  1000:1
 Backlight  LED
 Viewing Angle  85°/85°(L/R) 80°/80°(U/D)

Interfaces (Optional)
P215-9AHD: HDMI, DVI, VGA, YPbPr, Video, Audio in, Aduio out

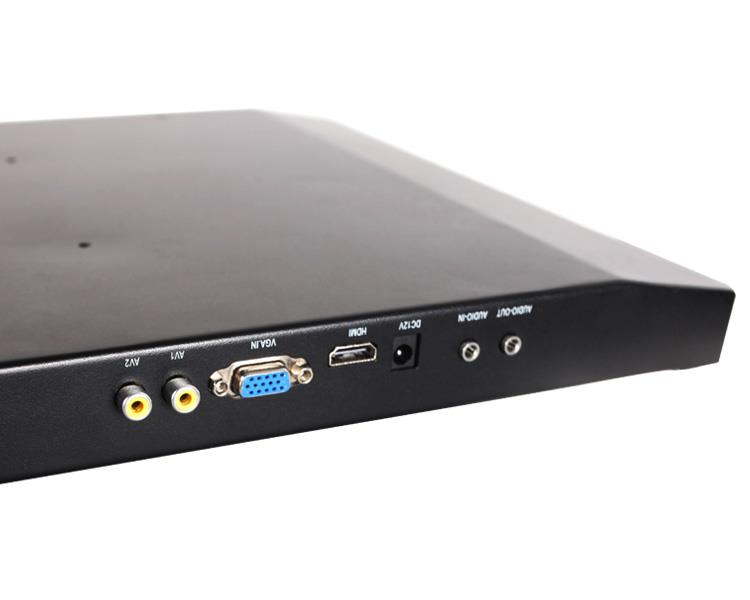

P215-9AH: Audio out, Audio in, HDMI, VGA, AV1, AV2
P215-9A: VGA, S-video, Video, Audio R/L in, Audio in, Audio out

General
 Input Voltage  DC12V
 Power Consumption  ≤32W
 Working Temperature  -20℃～60℃
 Storage Temperature  -30℃～70℃
 Relative Humidity  5(%RH)～90(%RH)
 Unit Size  550L×301.6H×34D (mm)
 Unit Weight  4.3kg



Dimensions (Unit: mm)
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
