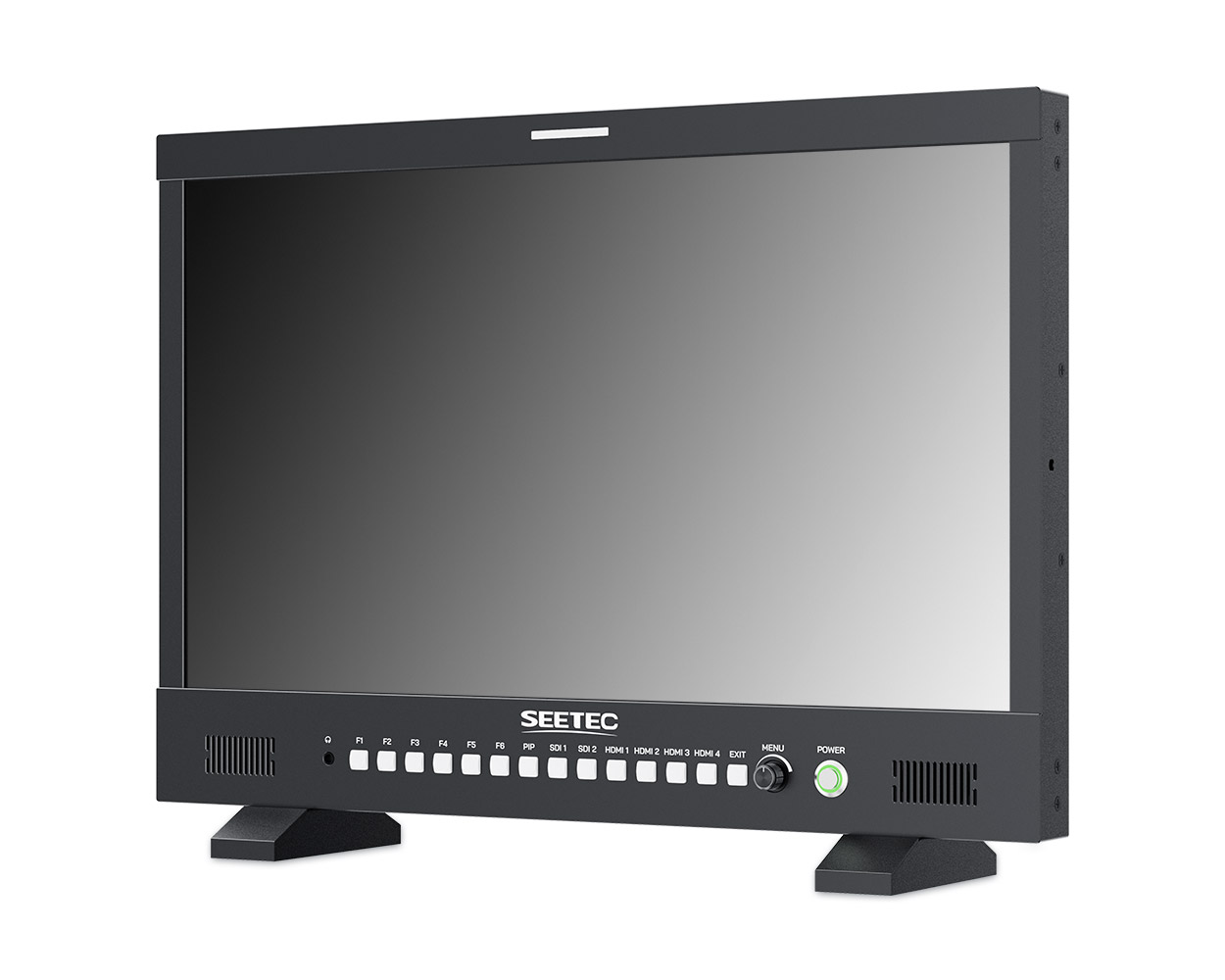

Multi-Camera Horizontal & Vertical Broadcast Monitor
SEETEC M215S is a 21.5-inch Full HD high-brightness multi-view monitor. It is equipped with dual 3G-SDI and four HDMI 2.0 ports, supporting signal transmission up to 4K60p.

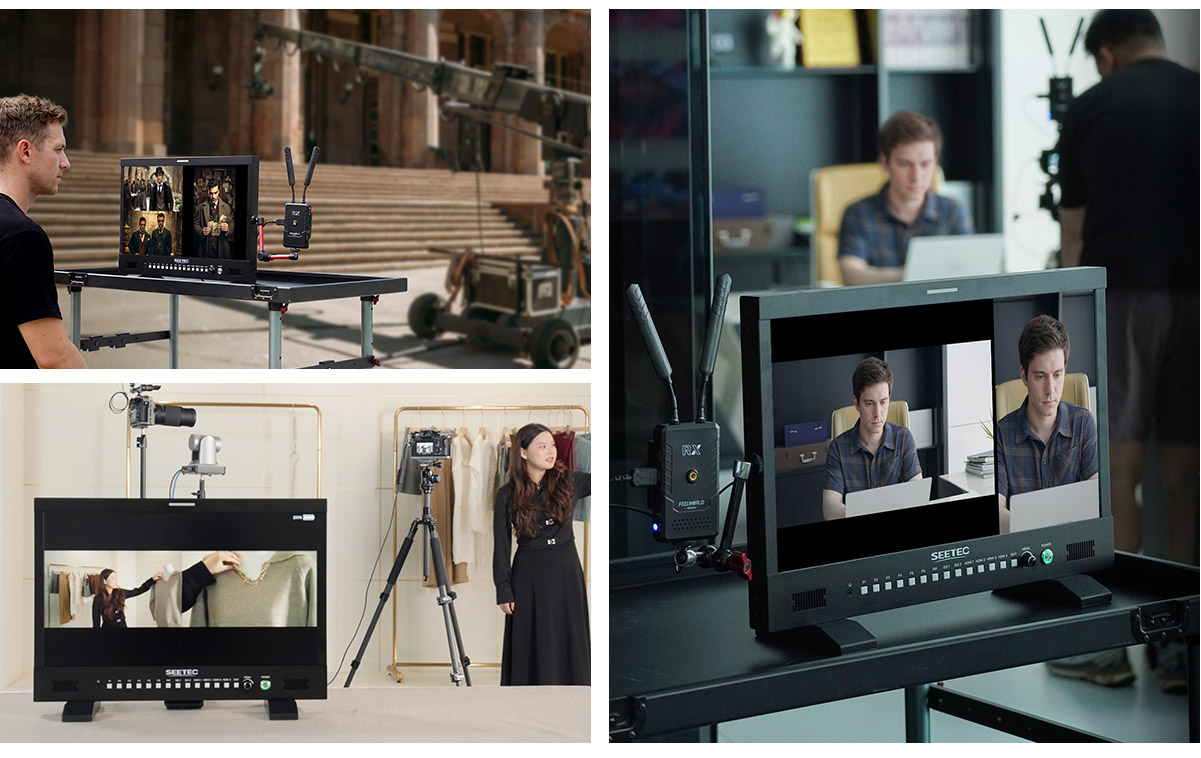

The M215S built for short drama production, multi-camera workflows,broadcast studio,and outdoor shooting, the monitor accepts up to 4 video input channels and offers a variety of multi-view monitoring layouts, including landscape and portrait modes.
A full set of professional assist tools such as waveform, 3D LUT, HDR, and audio monitoring is integrated to support efficient on-site production.

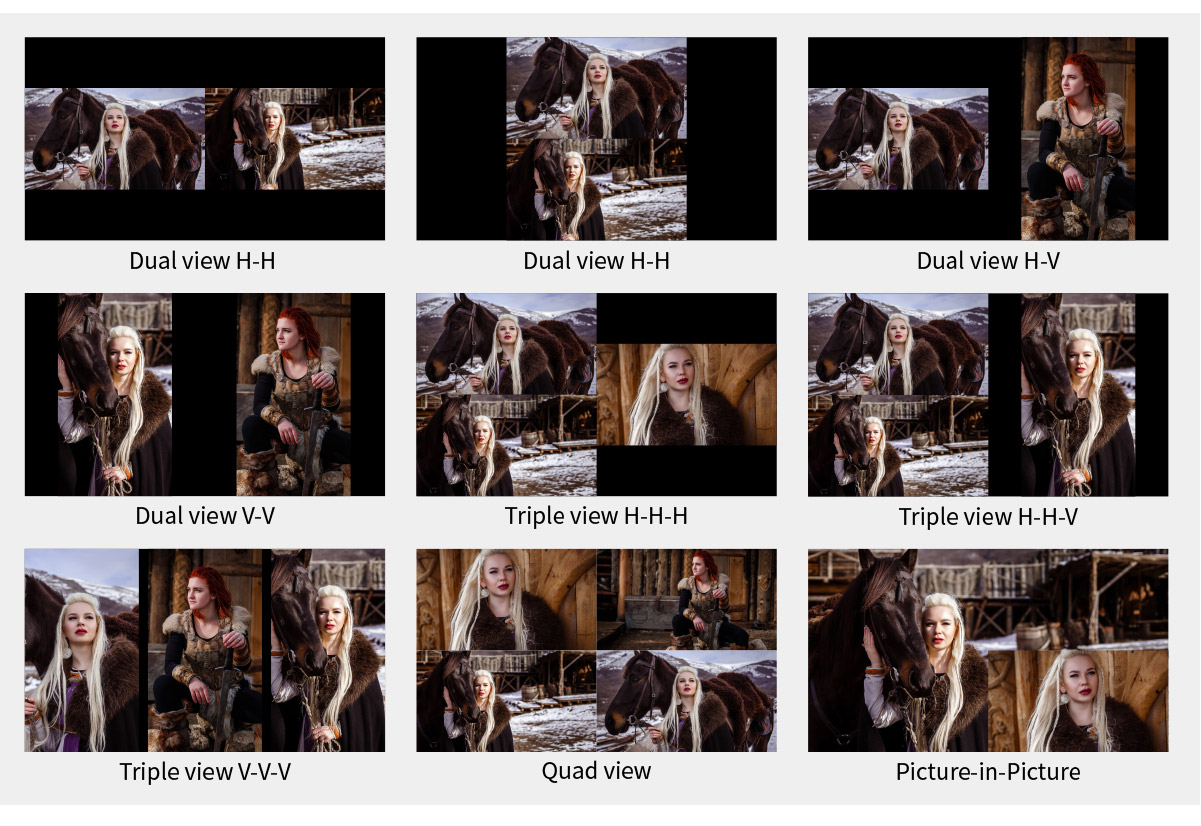

Multi-view Monitoring Mode
The screen can be set to dual, triple,and quad view through menu settings, supporting picture-in-picture mode, it perfectly fits diverse complex monitoring needs and delivers flexible, efficient use.

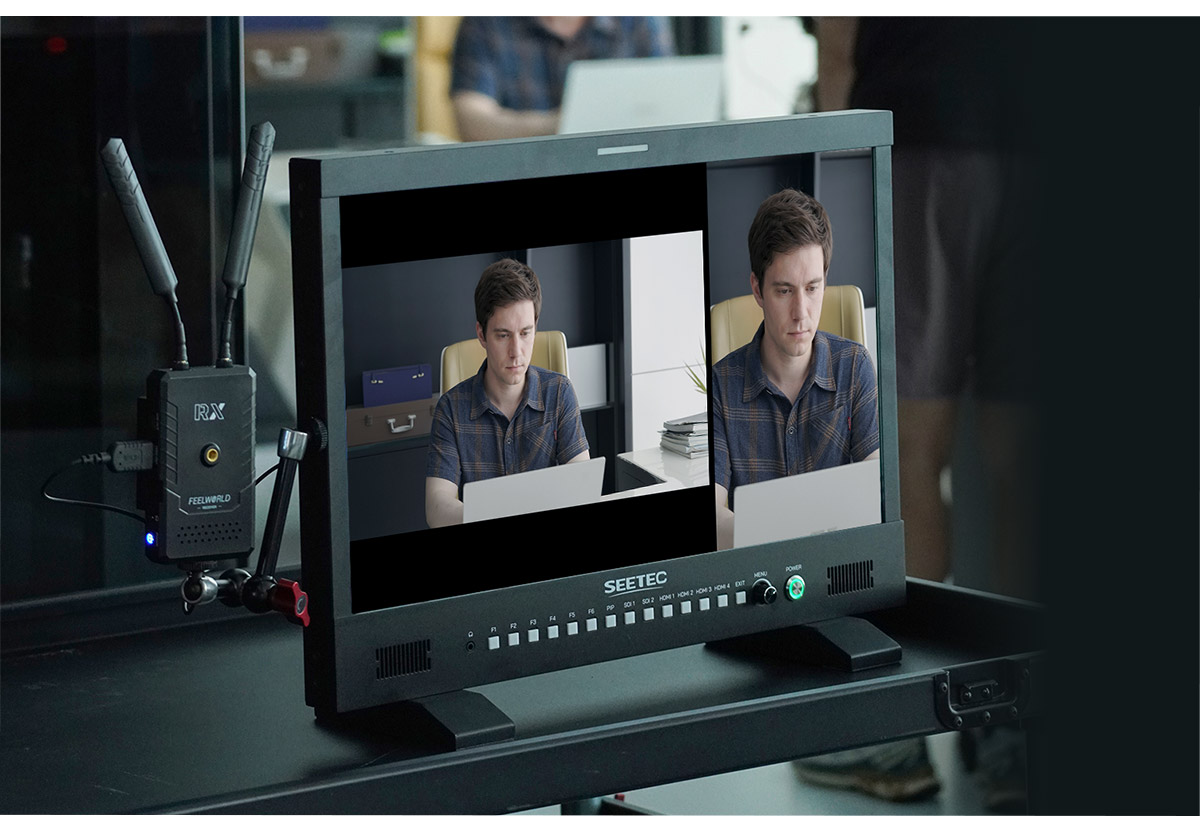

Horizontal Shooting & Vertical Cropping
The M215S comes with cropping function. It enables seamless connection from horizontal shooting and vertical output, perfectly suited for short drama filming and mobile content creation.

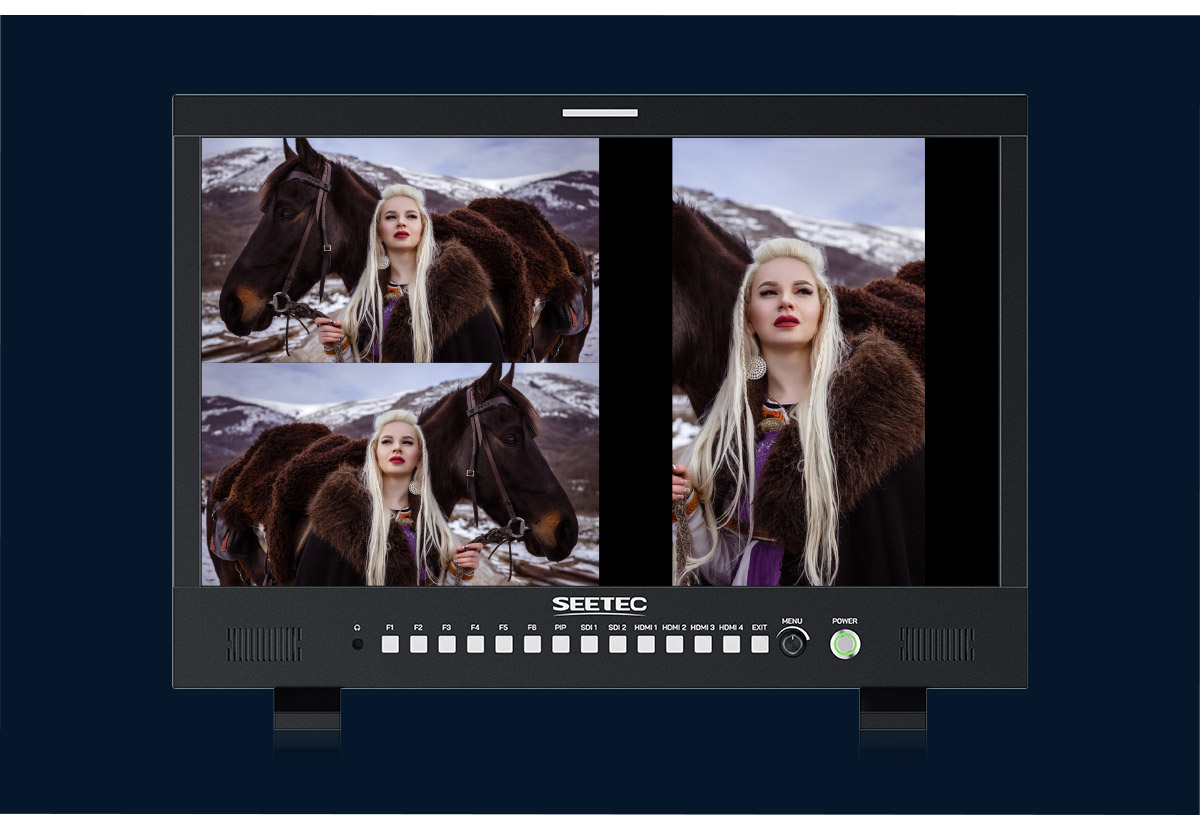

Independent Mirror Flip for Each Window, Easier Monitoring
In multi-screen mode, the independent image flip function for a single window is supported. Without adjusting the camera angle or wiring installation, any single screen can be freely mirror flipped, making camera installation more flexible and efficient, and improving monitoring efficiency.

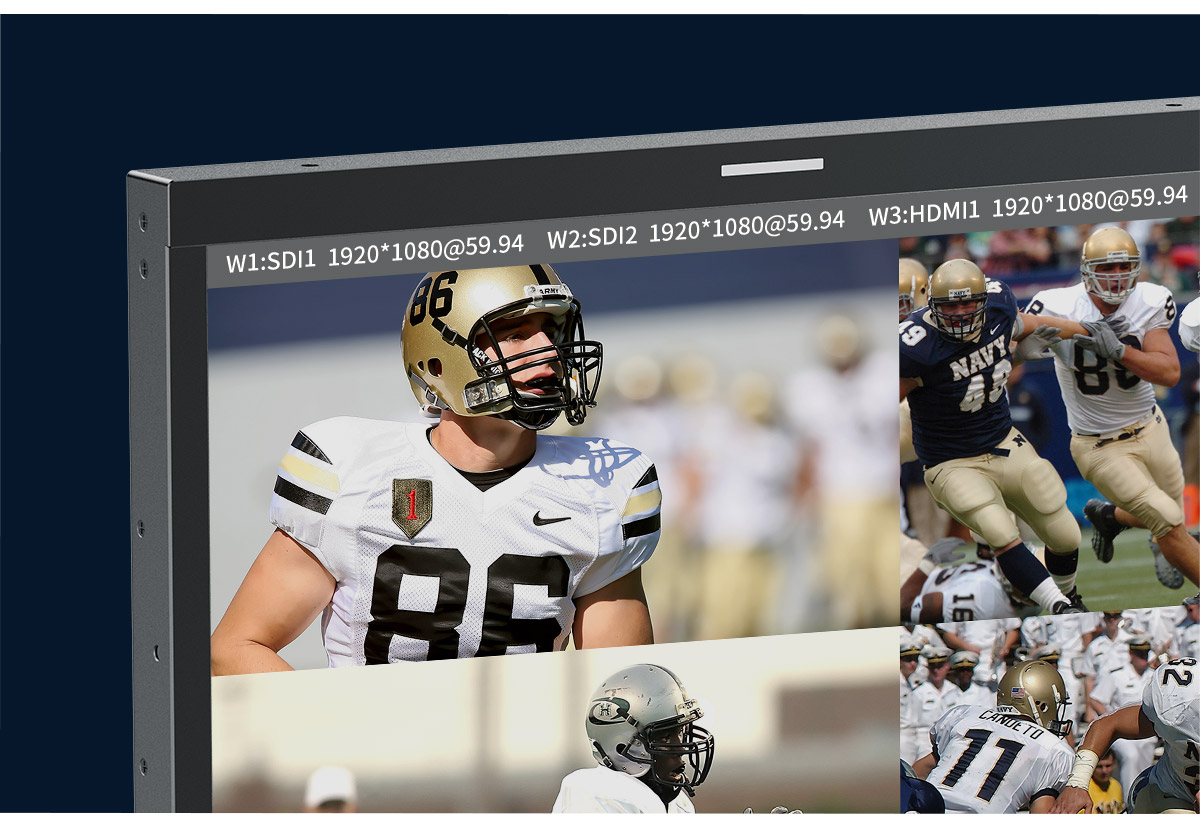

Camera Status Display
The top of the monitor screen can display the signal input status of each camera in real time, facilitating the crew's overall management of shooting and effectively improving shooting efficiency.

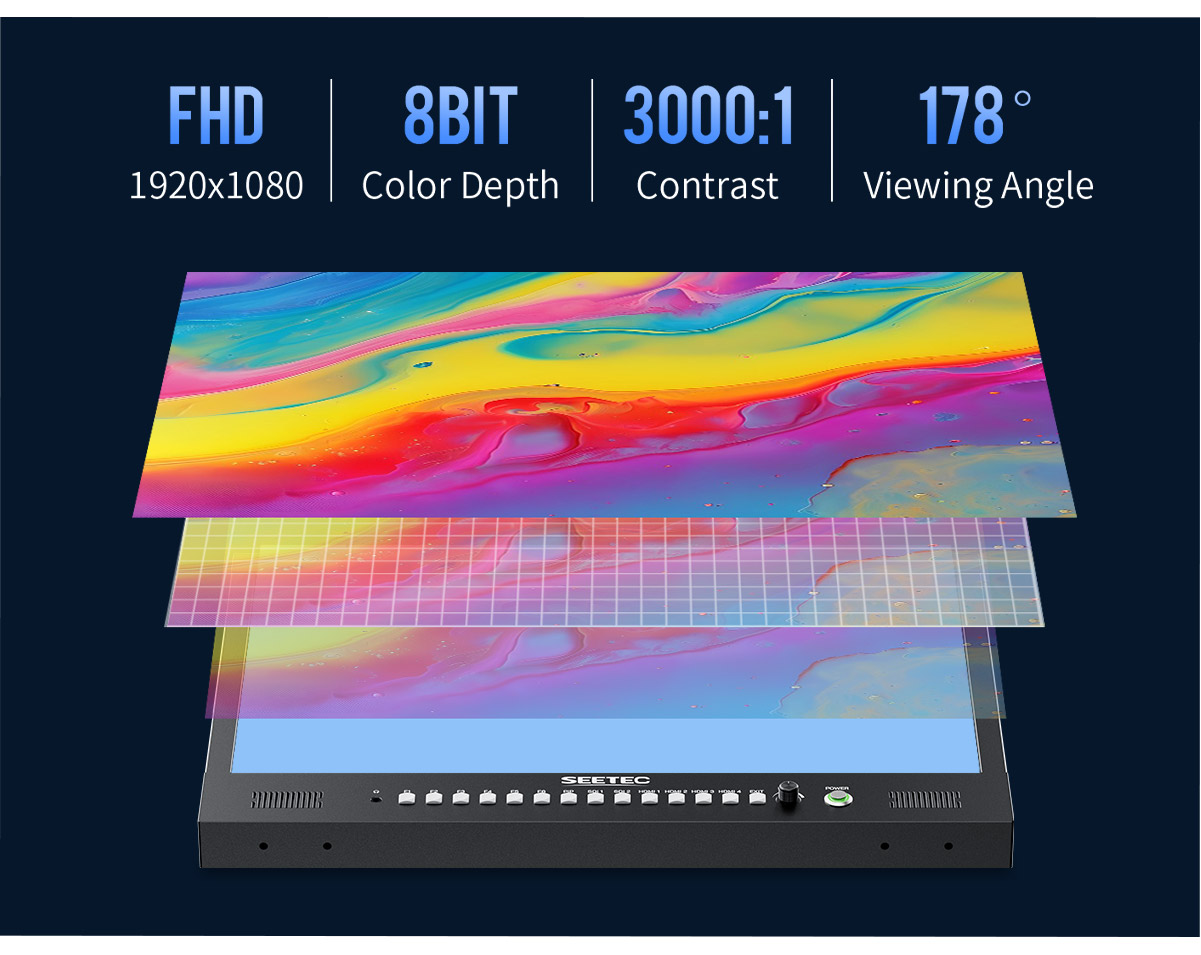

21.5" Full HD IPS
Clearly checking and capture every nuance
With extremely high resolution 21.5-inch 8bit IPS panel provides rich colors,a wider field of view and clearly present more detailed image. 178 °wide viewing angle, support multiple members to monitor the image from all angles, facilitate team collaboration for filmmaking

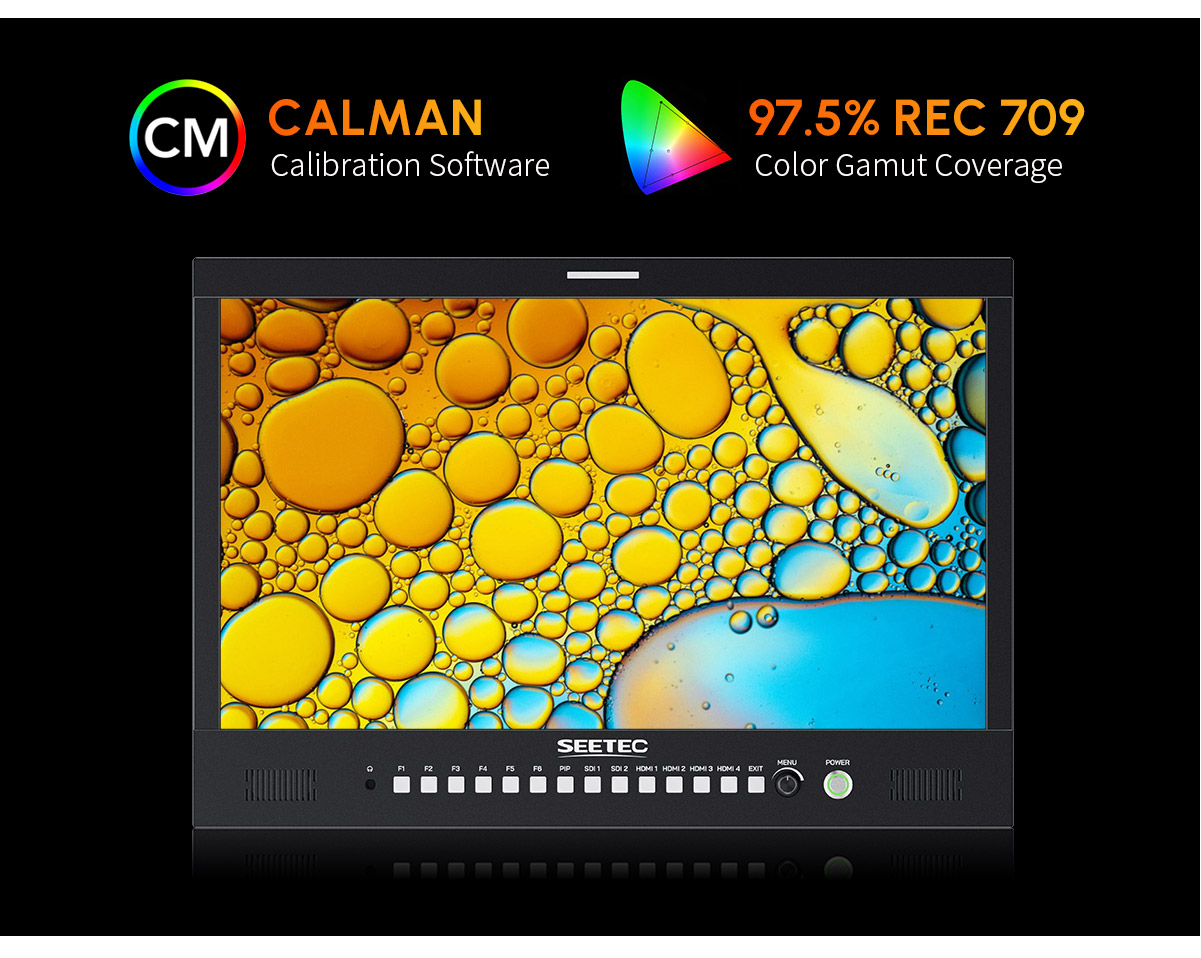

Professional CalMAN Software Calibration
Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction, and the delta E value ≤1.5.

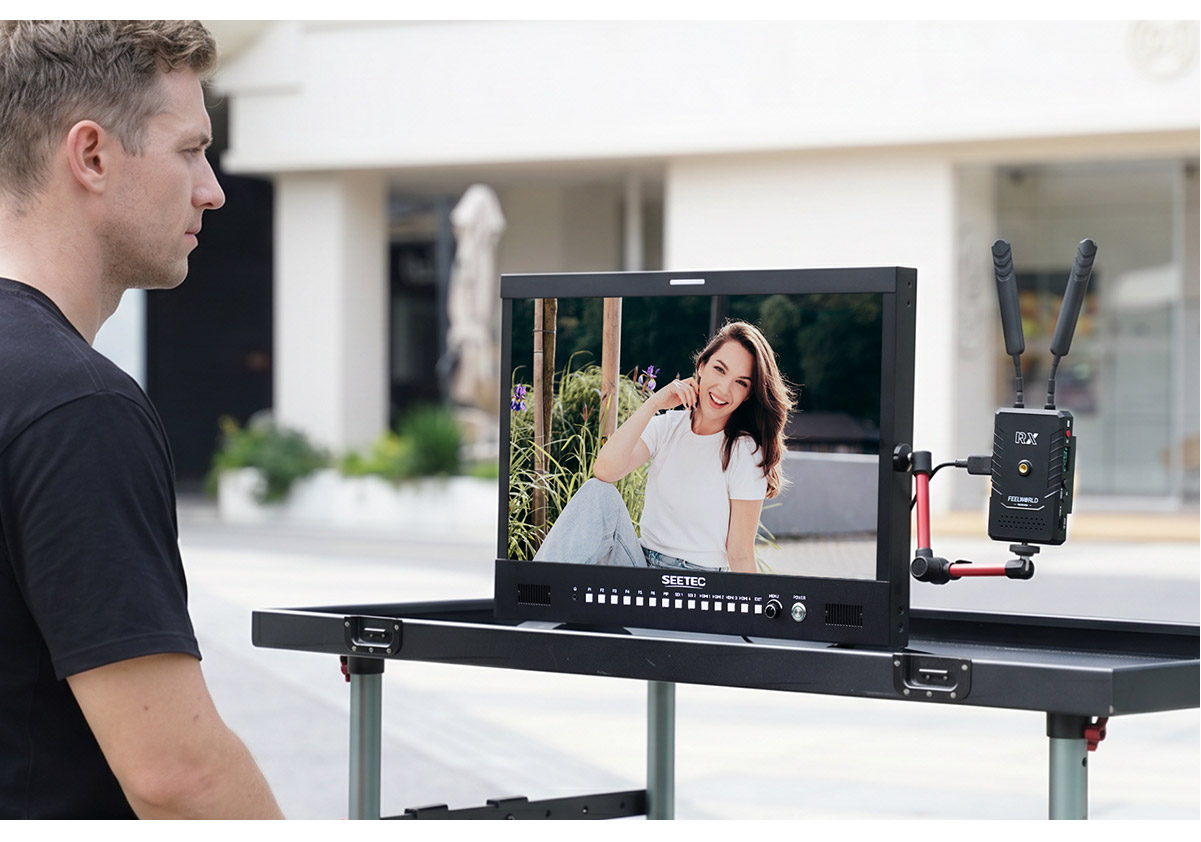

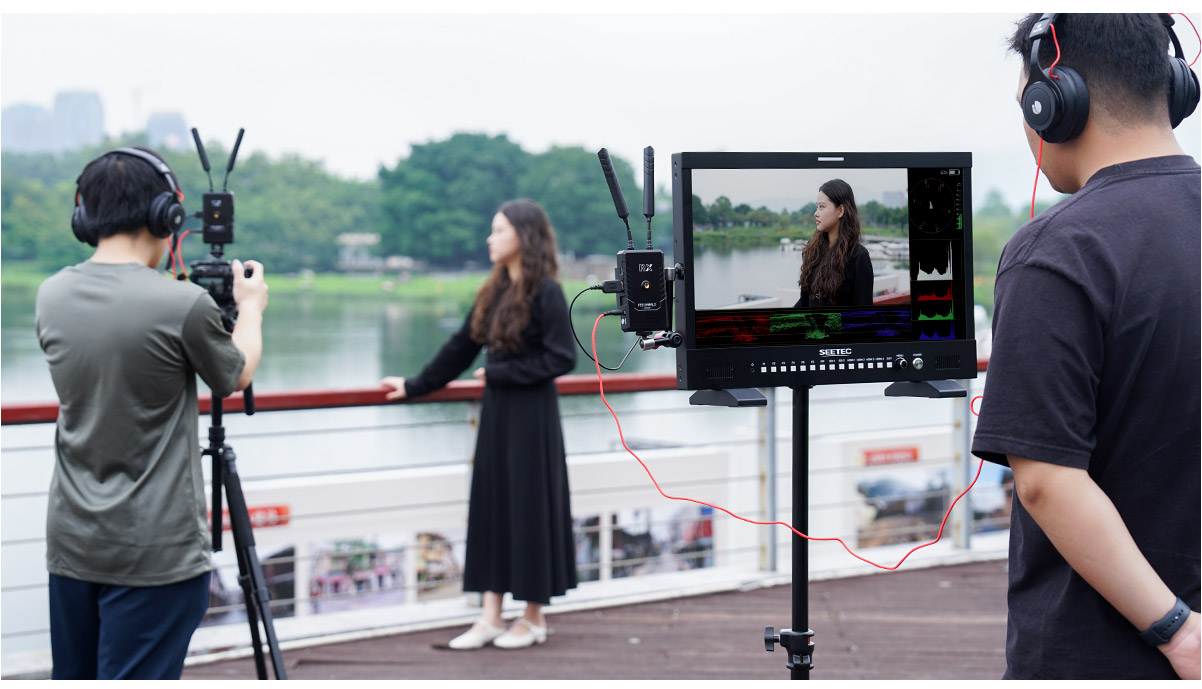

1000nits, Visible in Sunlight
High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.

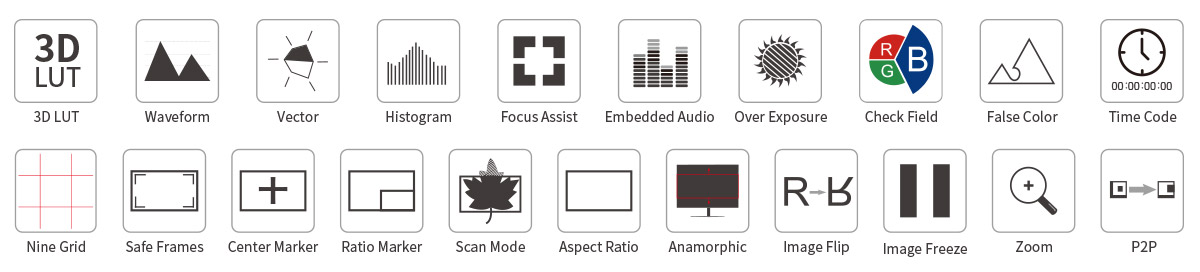

Full Range of Auxiliary Functions

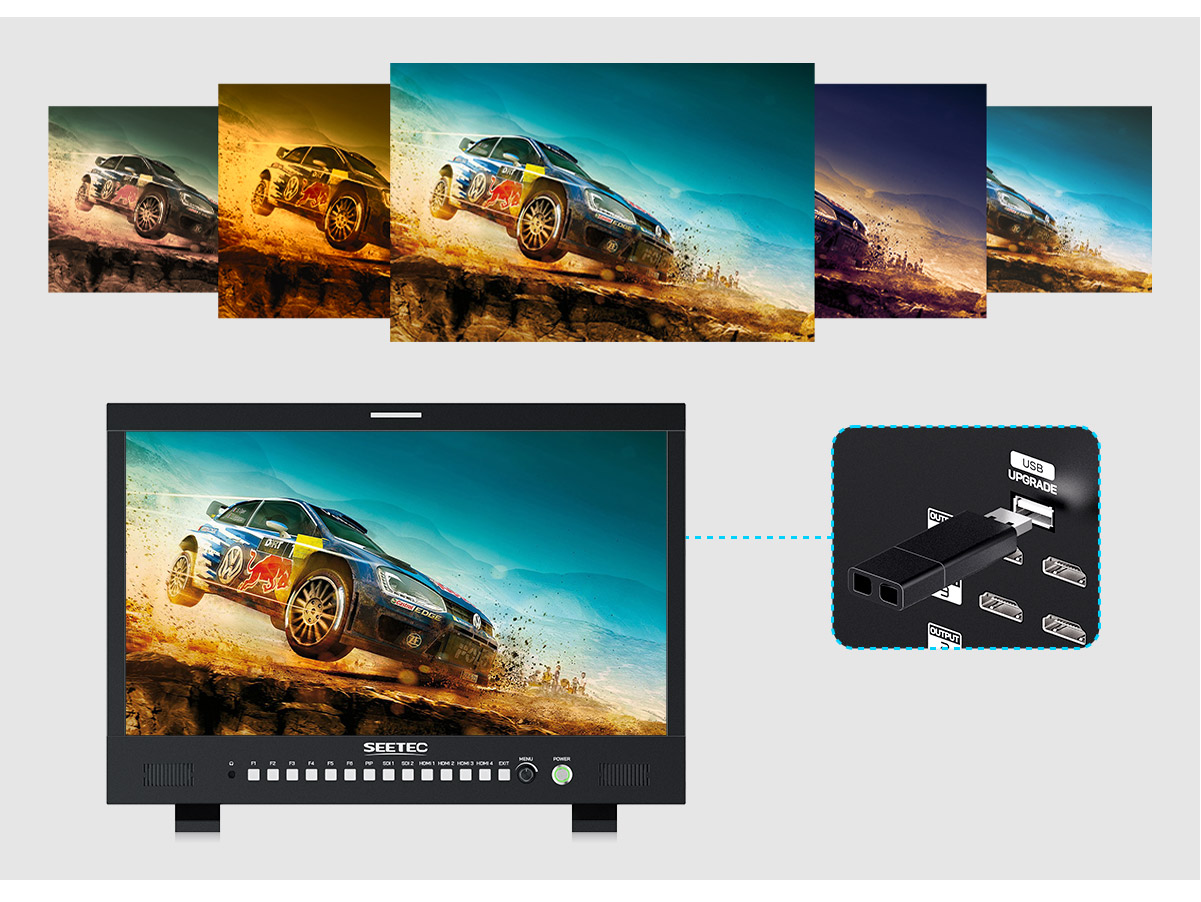

Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Supports to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in 4 types(S-Log2,s-Log3, C-Log, V-Log) or upload .cube files define your own creative cinematic style Whatever you like. The user stores the LUT document in the root directory of the USB flash drive, and insert to the USB interface of M215S to import (up to 32 custom files can be imported).
Dynamic HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

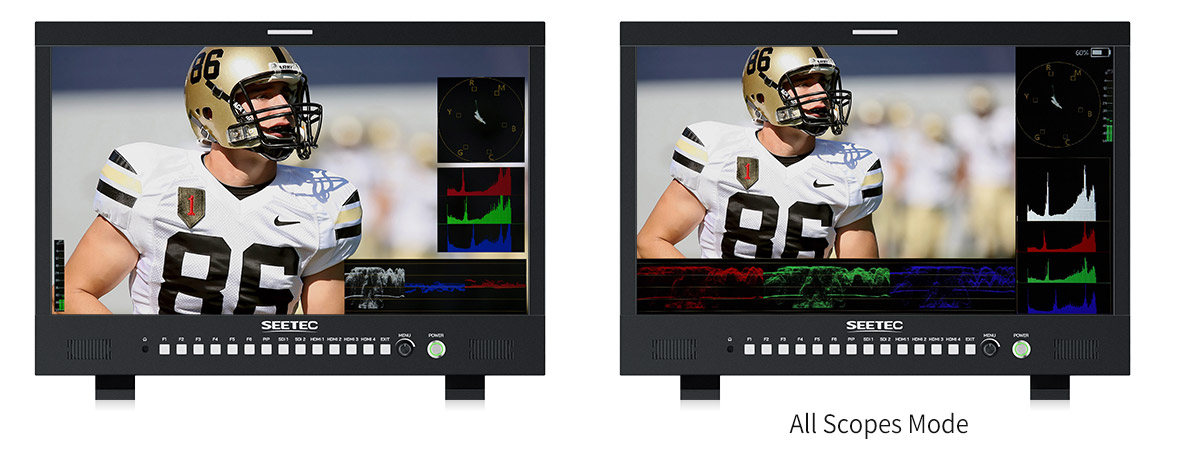

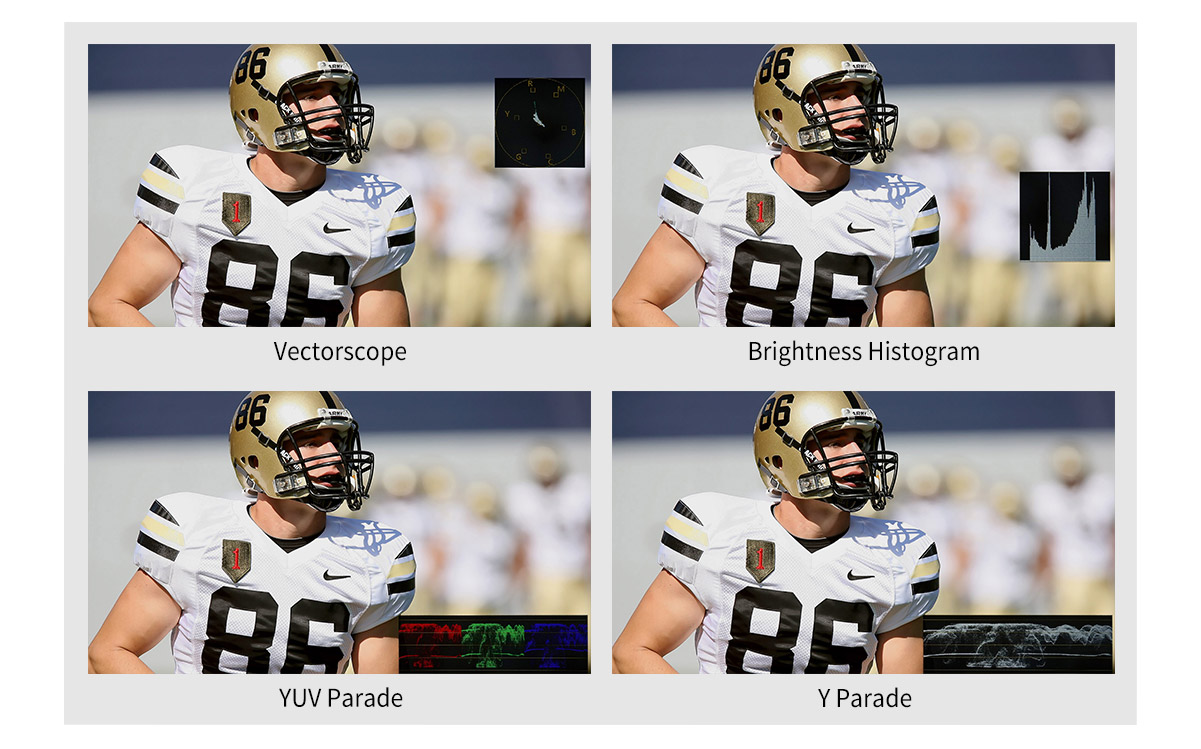

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position. M101S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

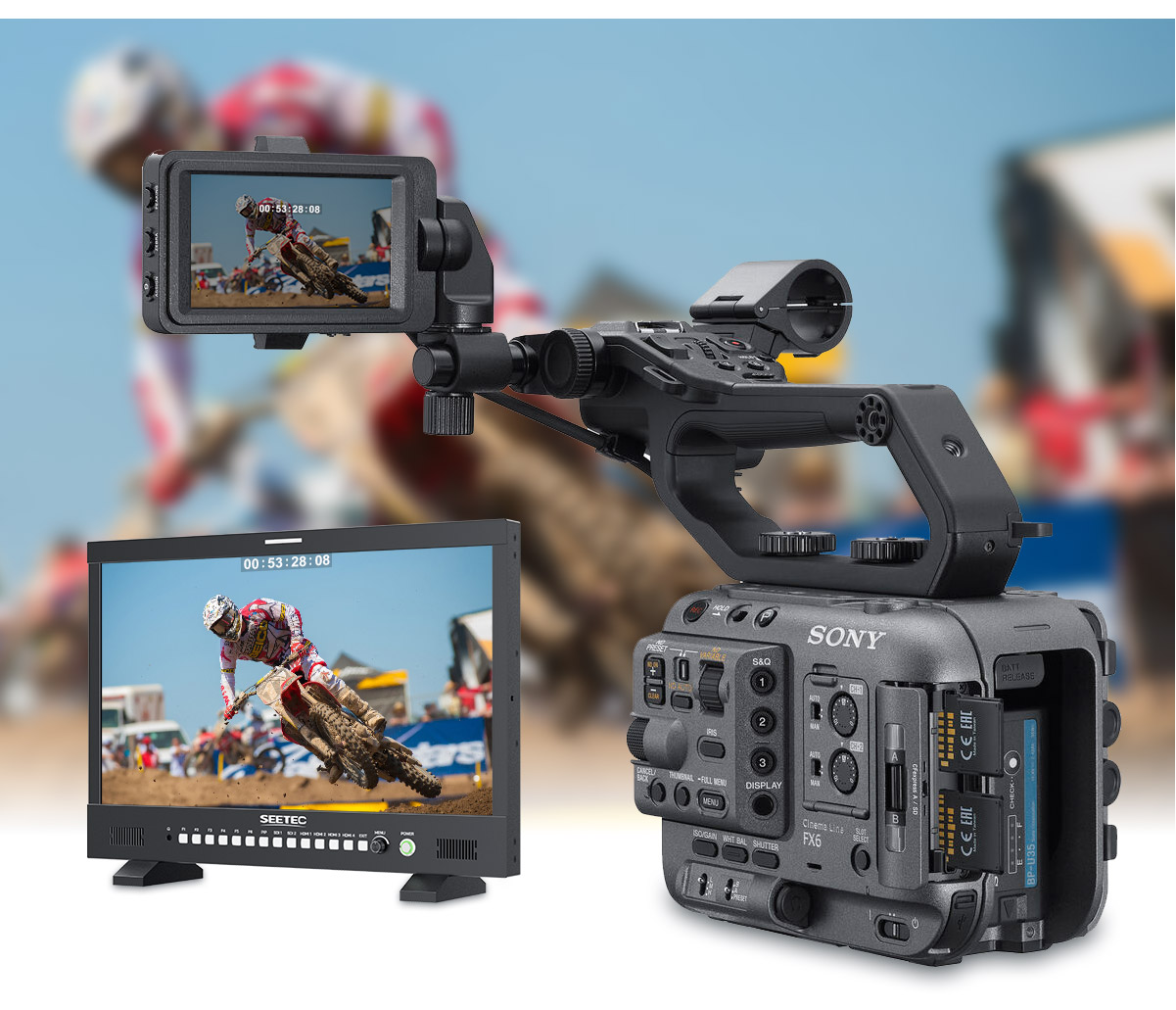

SDI Time Code
M215S supports LTC、VITC time code display under SDI signal, it is synchronization with the camera. It is particularly convenient to identify specific frame rates in film and video production.

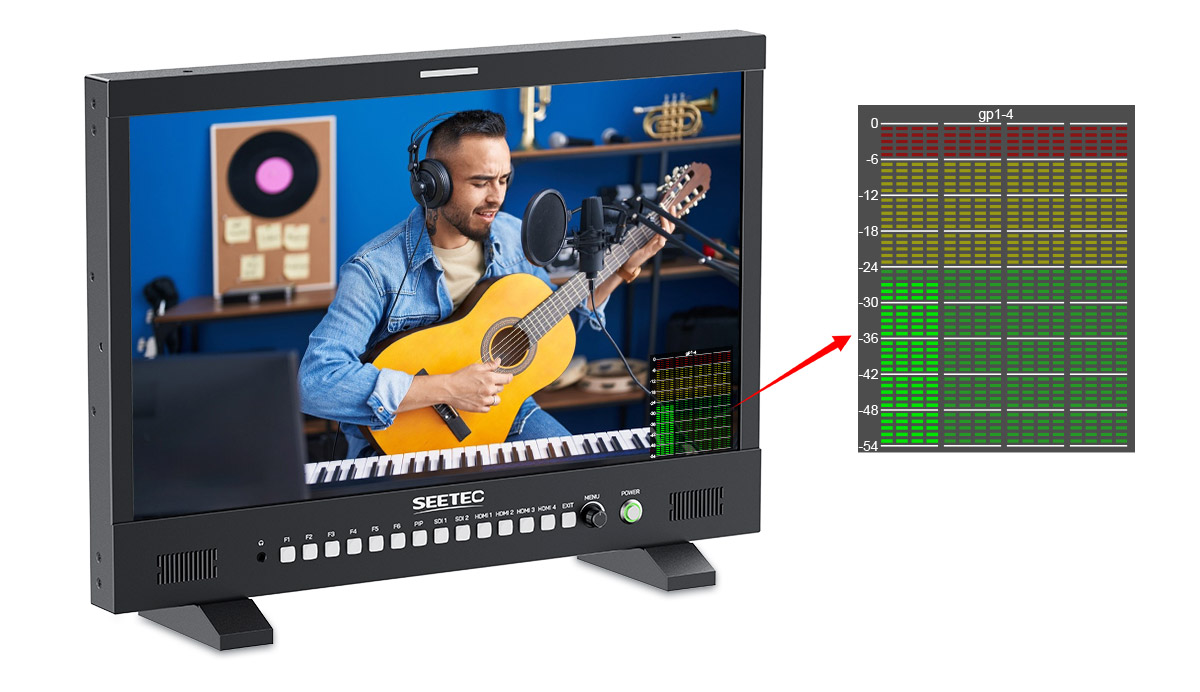

Up to 16-channle Audio Meter Level
M215S can de-embedded audio from SDI and HDMI. Under HDMI, you can select 2 channels, 4 channels, 8 channels audio meters display; under SDI, you can select 2 channels, 4 channels, 8 channels, 16 channels audio meters display . You also can move it horizontal or vertical position , and don' worry cover the image.

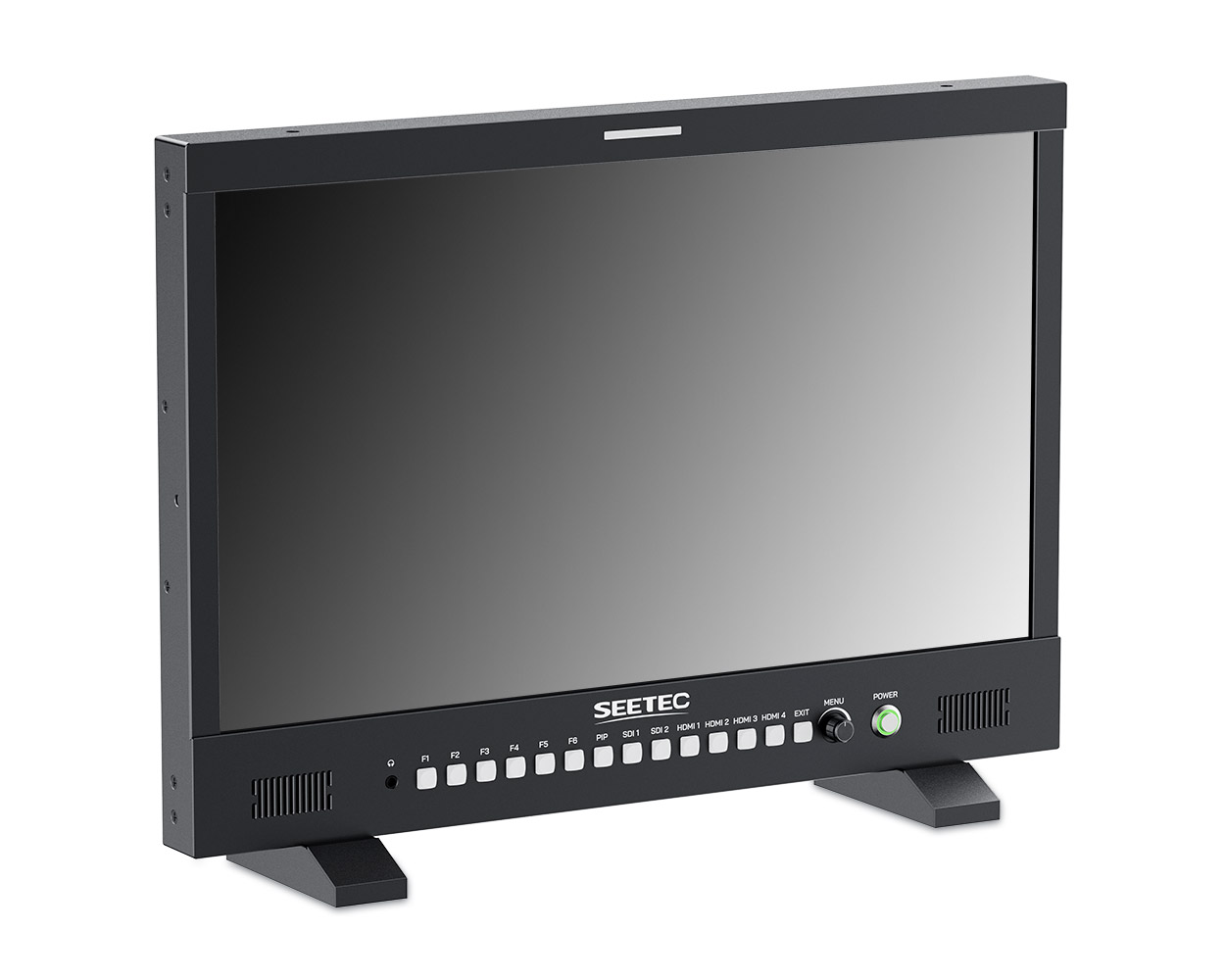

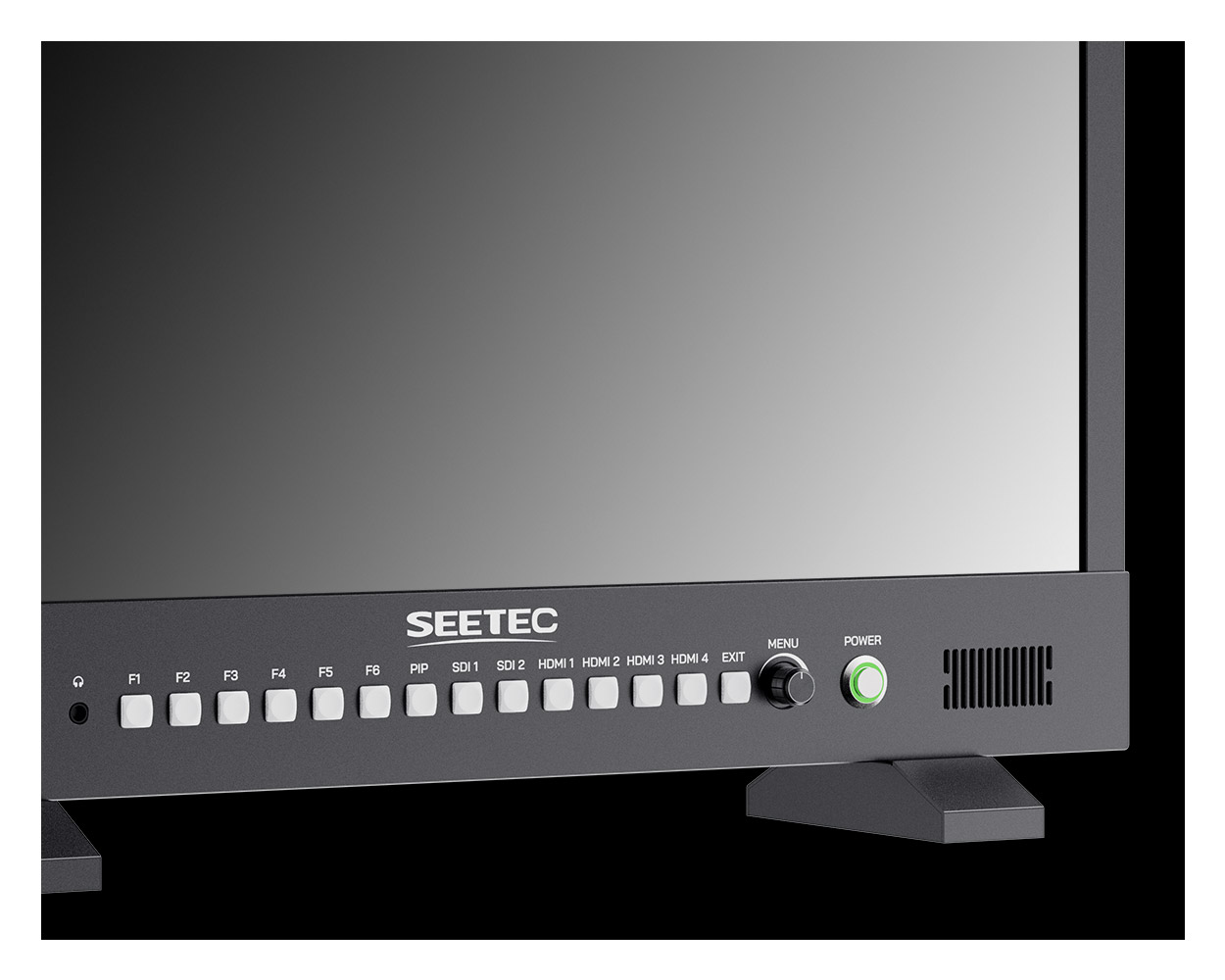

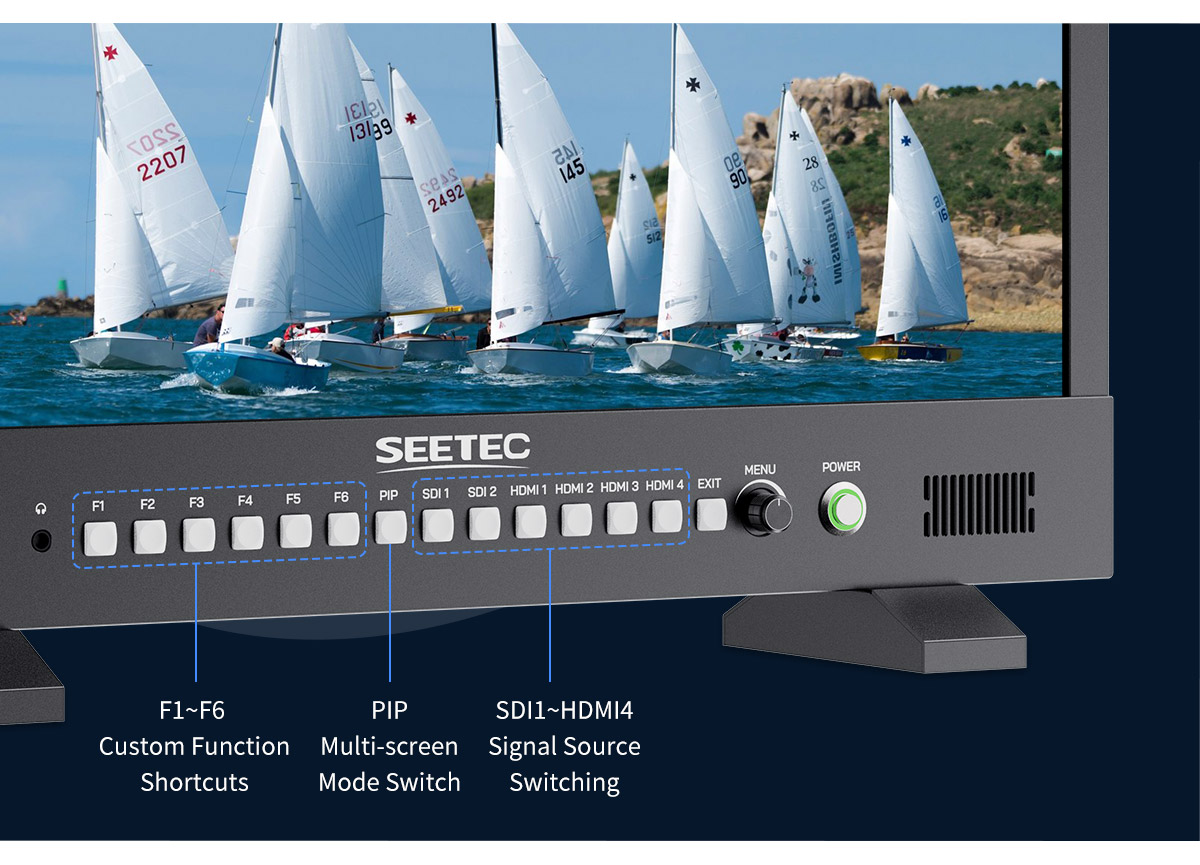

Intuitive Buttons Control, One-key Access
Intuitive key operation allows directors and cinematographers to control the device effortlessly on the busy shooting set. The signal source can be switched with one click,multi-screen mode switching and there are 6 customizable shortcut keys—cinematographers can pre-set the shortcut functions according to the actual needs of the shooting site and call up the required functions quickly during shooting, which greatly boosts shooting efficiency.

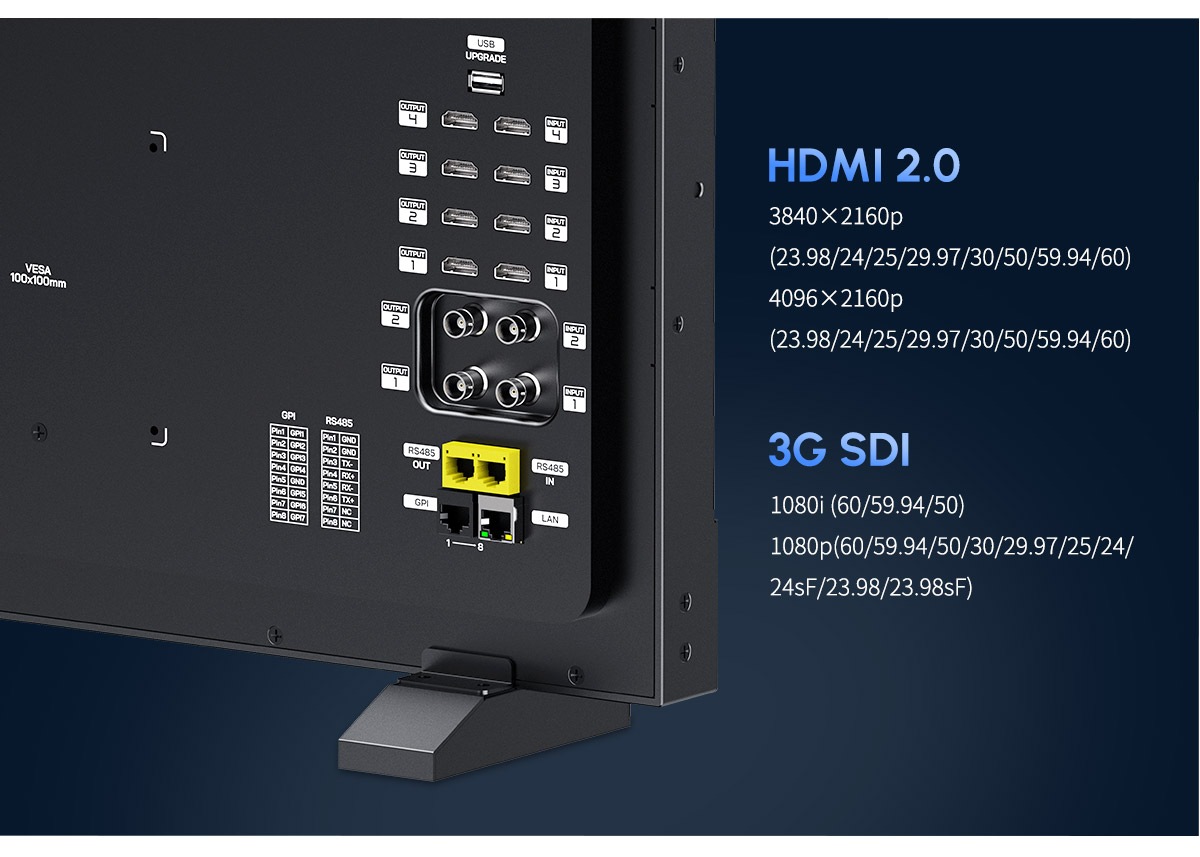

Multiple 3G-SDI & 4K HDMI Inputs and Outputs
The monitor is equipped with 2 channel 3G-SDI, 4 channel HDMI 2.0 inputs and loop outputs interface,which support up to 2160p 60Hz video signal,compatible with camcorder and various DSLR or mirrorless camera.

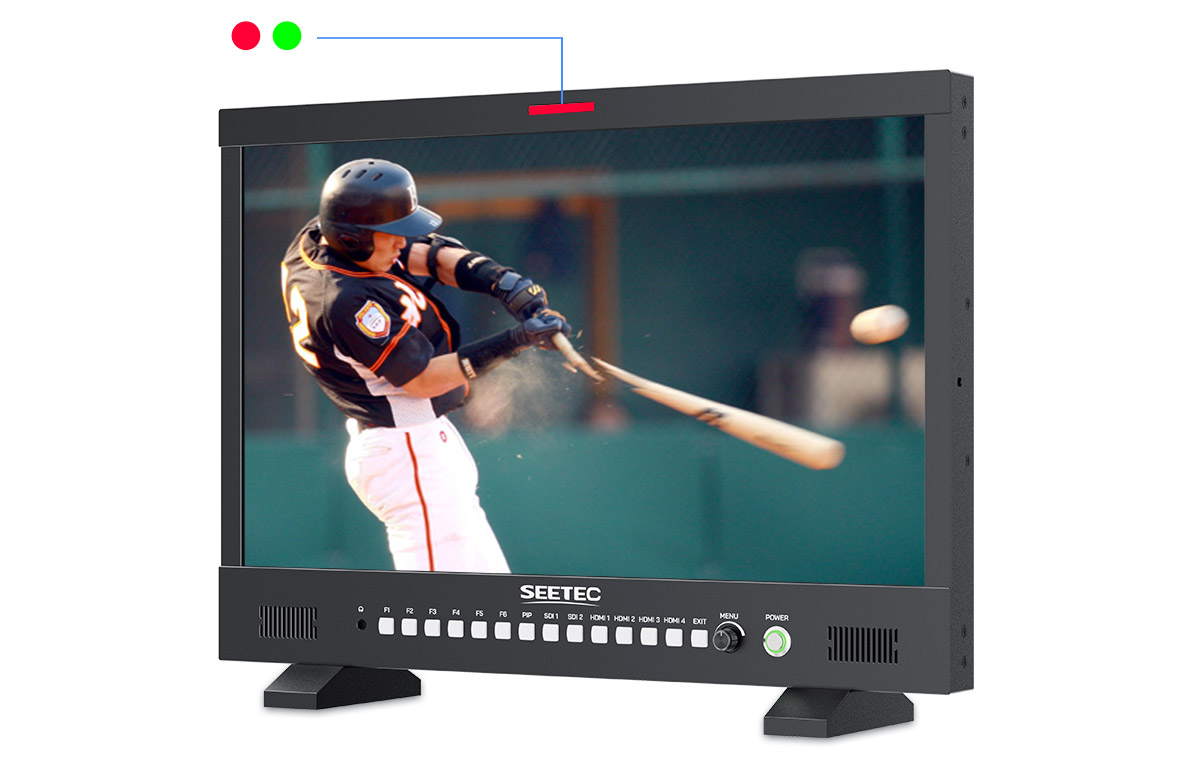

Tally Indicator, Enhance Team Cooperation
GPI controls Red Tally and Green Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.

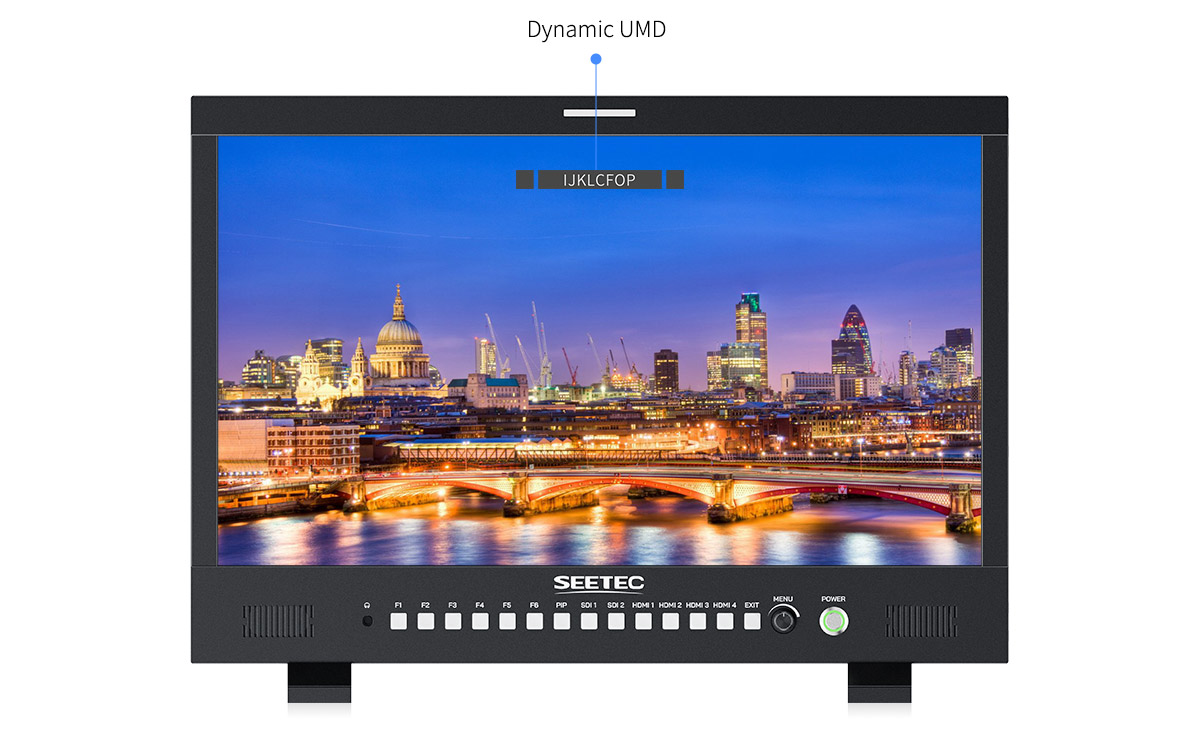

Dynamic UMD
The monitor supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD input via RS485 input port and output via RS485 output port.

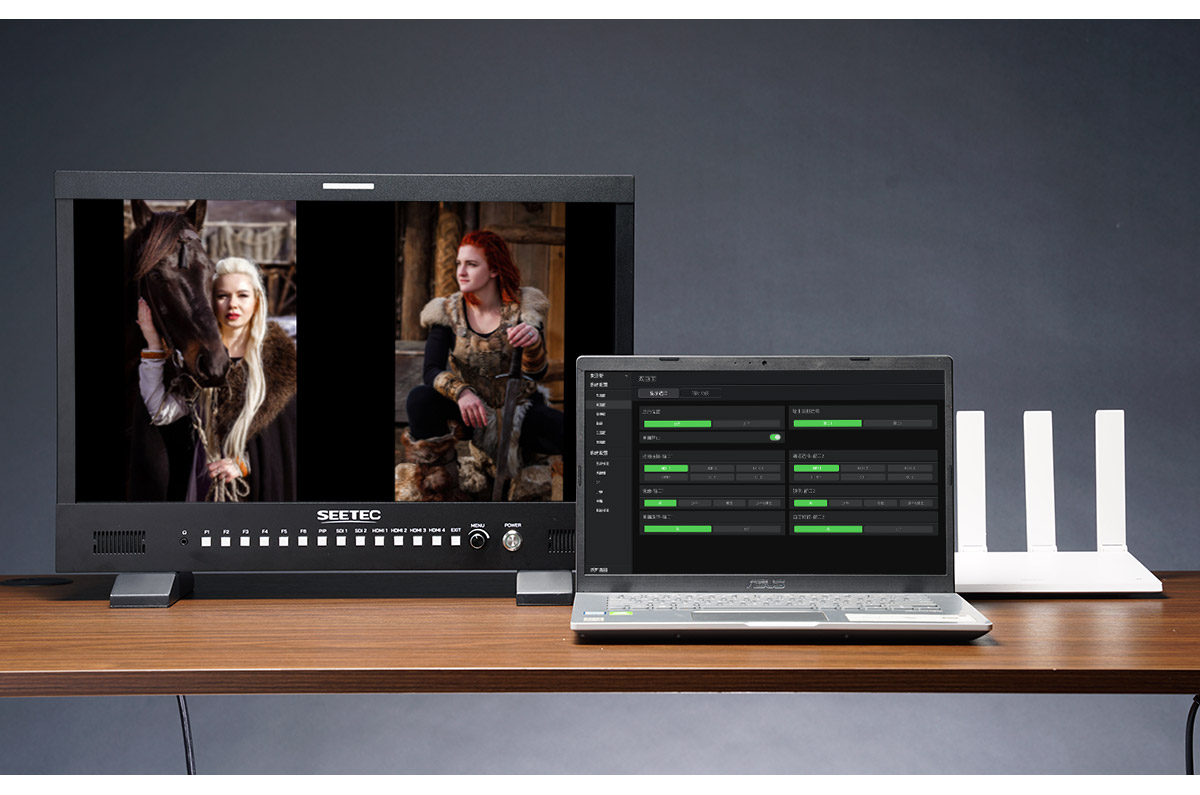

Remote Control Software for Mac and Windows
Connect your computer via LAN interface, and install the exclusive APP to control the monitor, support Windows & Mac system.

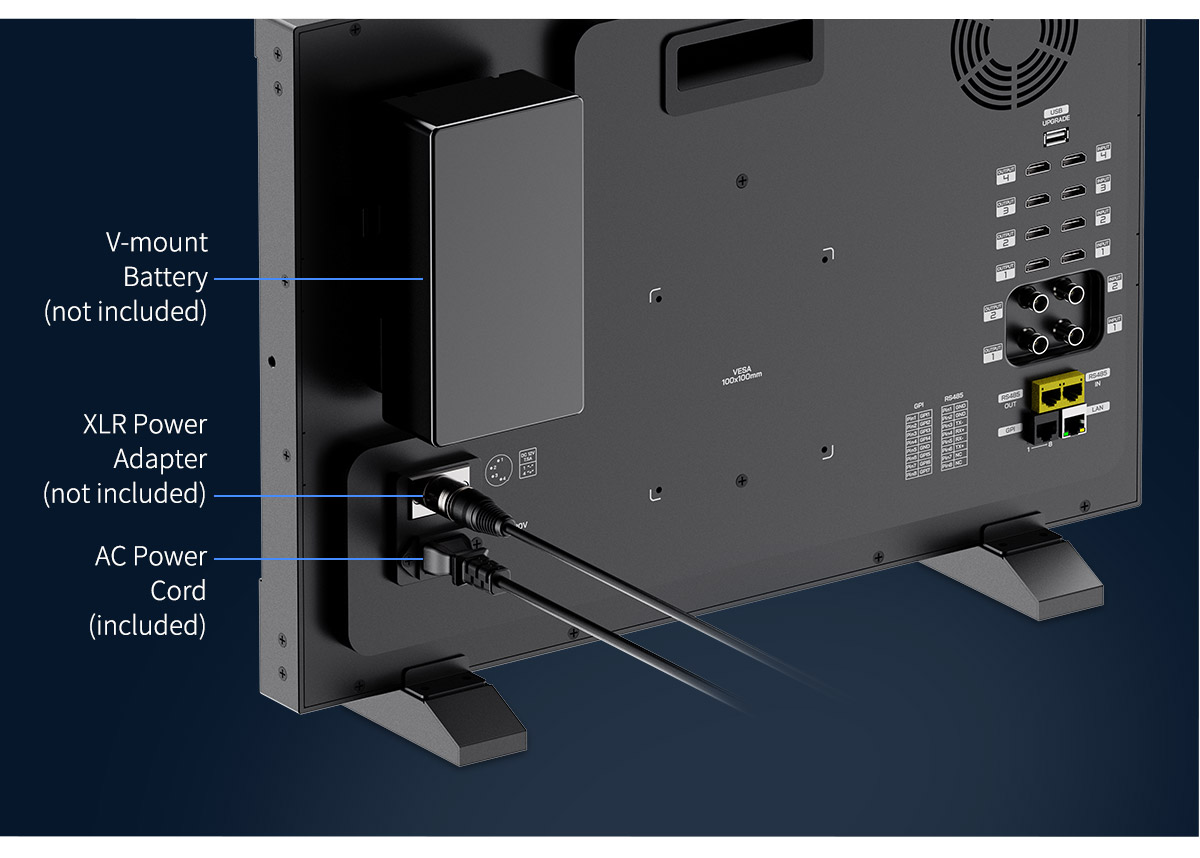

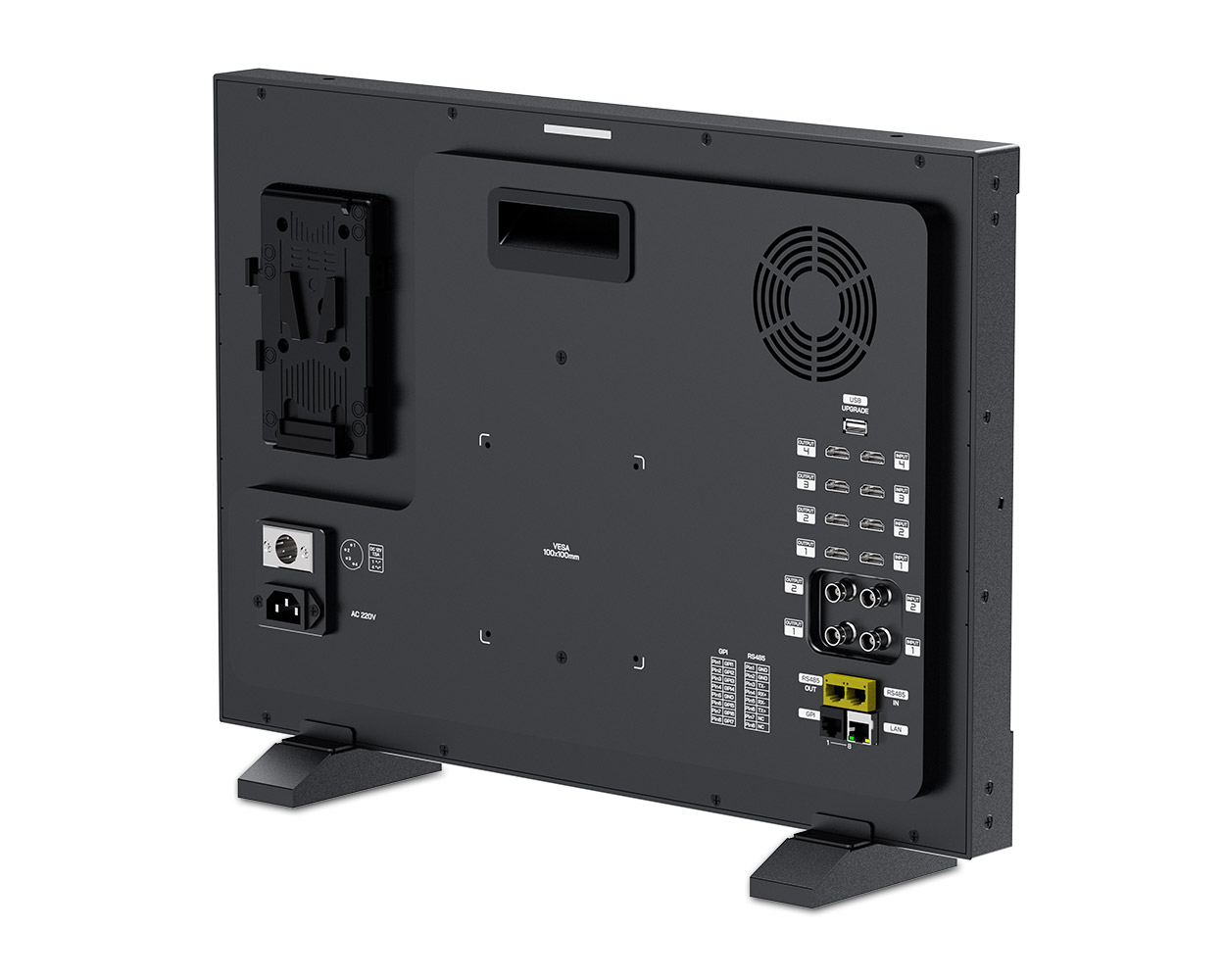

Triple Power Supply Options
You can use the accompanied power cord to connect AC power input or use DC 12V/5A power adapter to connect XLR power input to get continuous power, you can also install V-mount battery on the V-mount battery plate for mobile application.

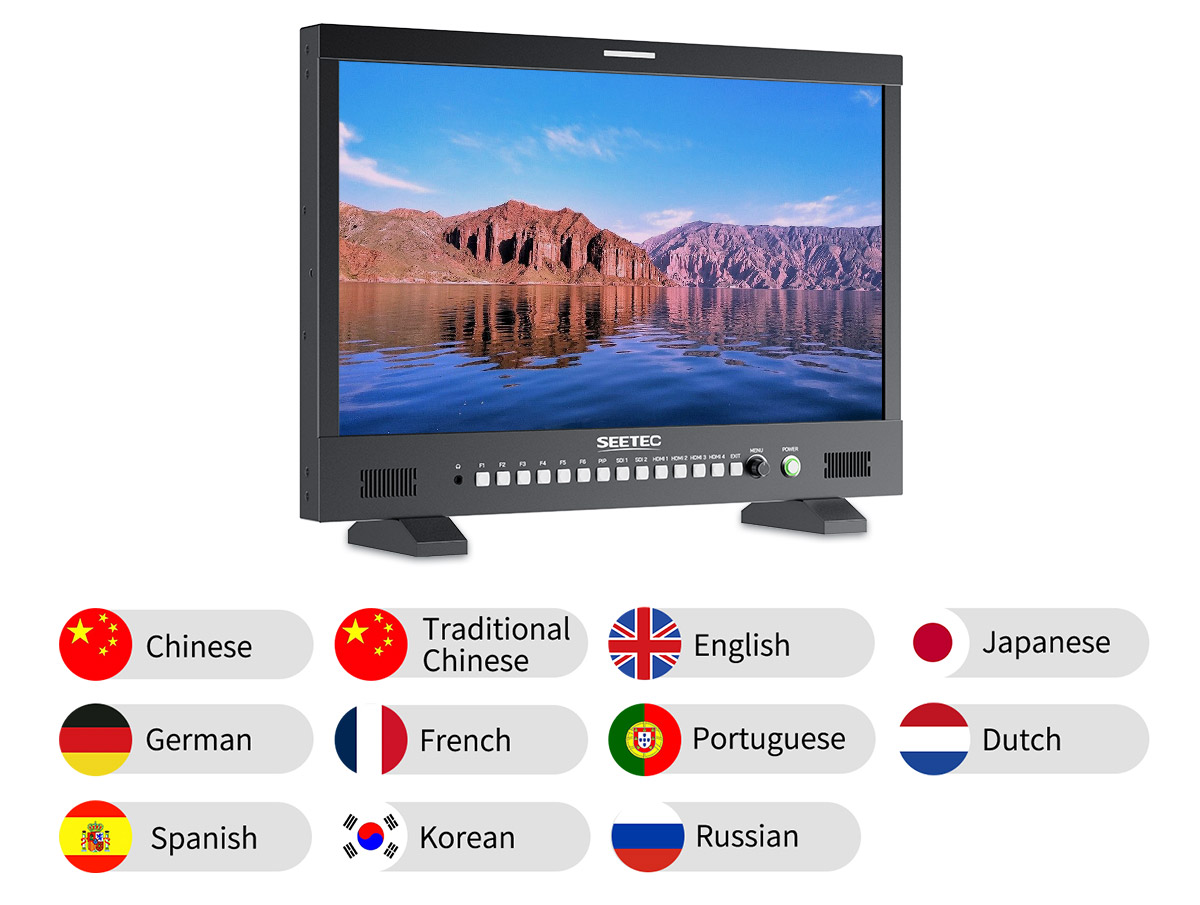

11 Languages Supporting
M215S built-in up to 11 languages, that means M215S is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

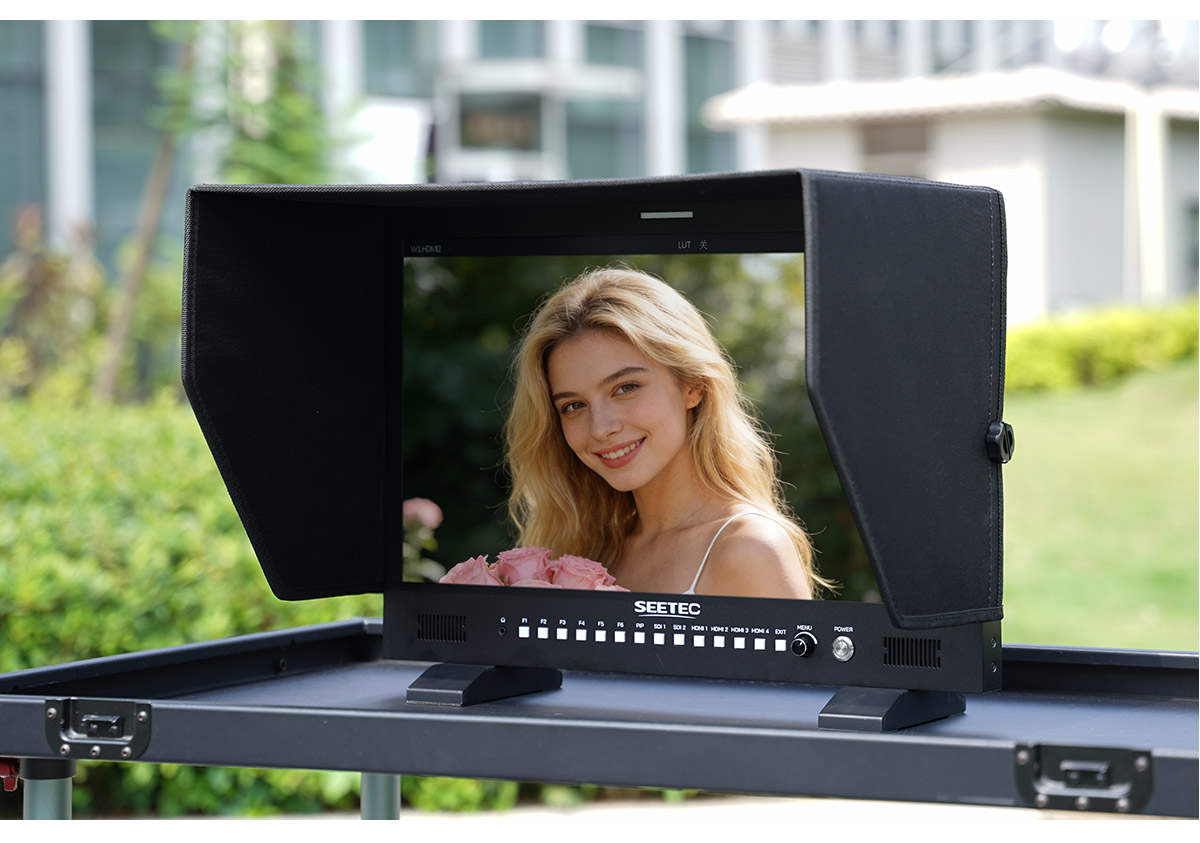

Portable Sunshade
The monitor comes standard with a sunshade, which effectively resists strong light interference and is easy to install and remove.

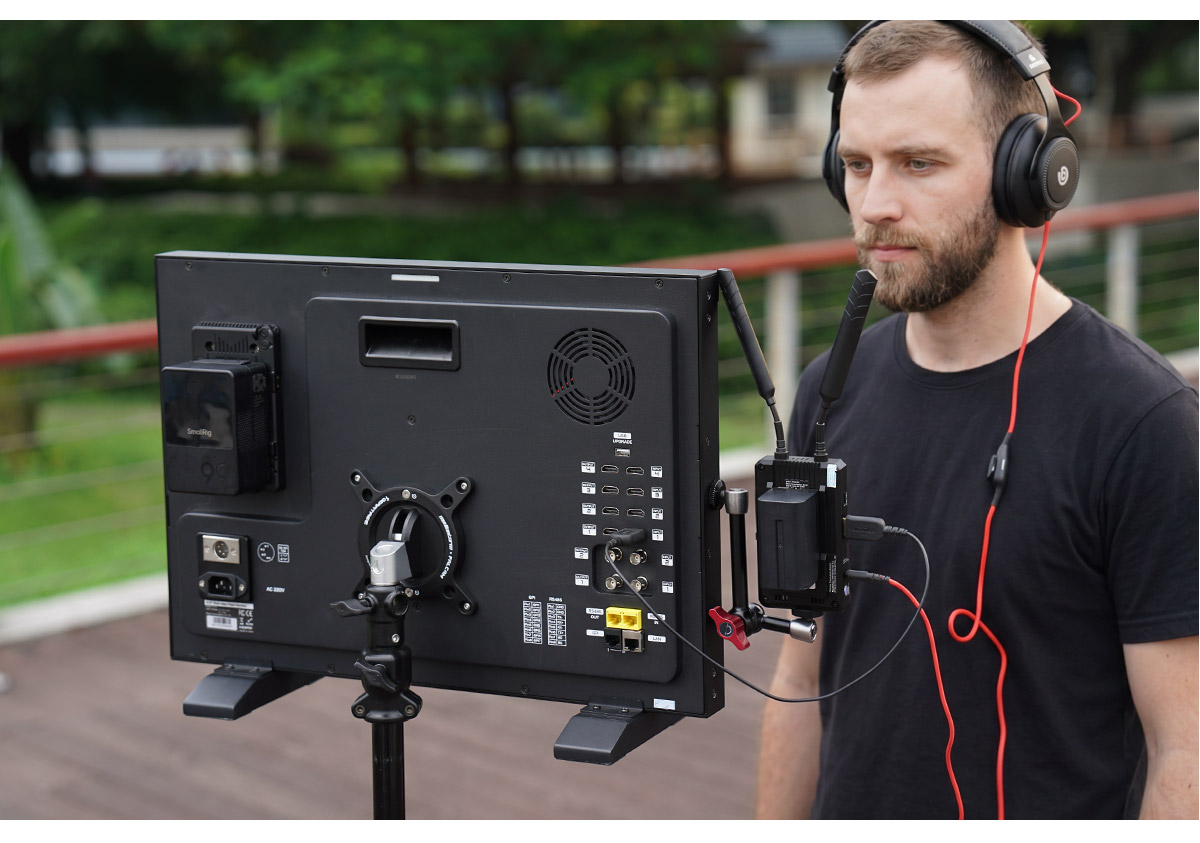

VESA Bracket Mount Point, More Monitoring Method
The rear of monitor with 100x100mm VESA mount points, you can mount it in rack or hang it on the wall. Ideal for broadcast studio or live production.
1. FHD Resolution 1920x1080 IPS,view details with confidence
2. 1000nit high brightness, ideal for outdoor shooting
3.Flexible and intuitive buttons operation
4.Professional Calman software calibration,ensure color accuracy and good reproduction
5. Multiple screen modes (Single, PBP, PIP, Crop, Triple, Quad)
6.Supports GPI control, dynamic UMD
7. In single display mode, SDI audio supports 16 channels
8. Dynamic HDR monitoring, what you see is what you get
9. Custom 3D LUT, preview film look
10. Multiple power supply ways( XLR connector, AC In, V-mount battery plate)

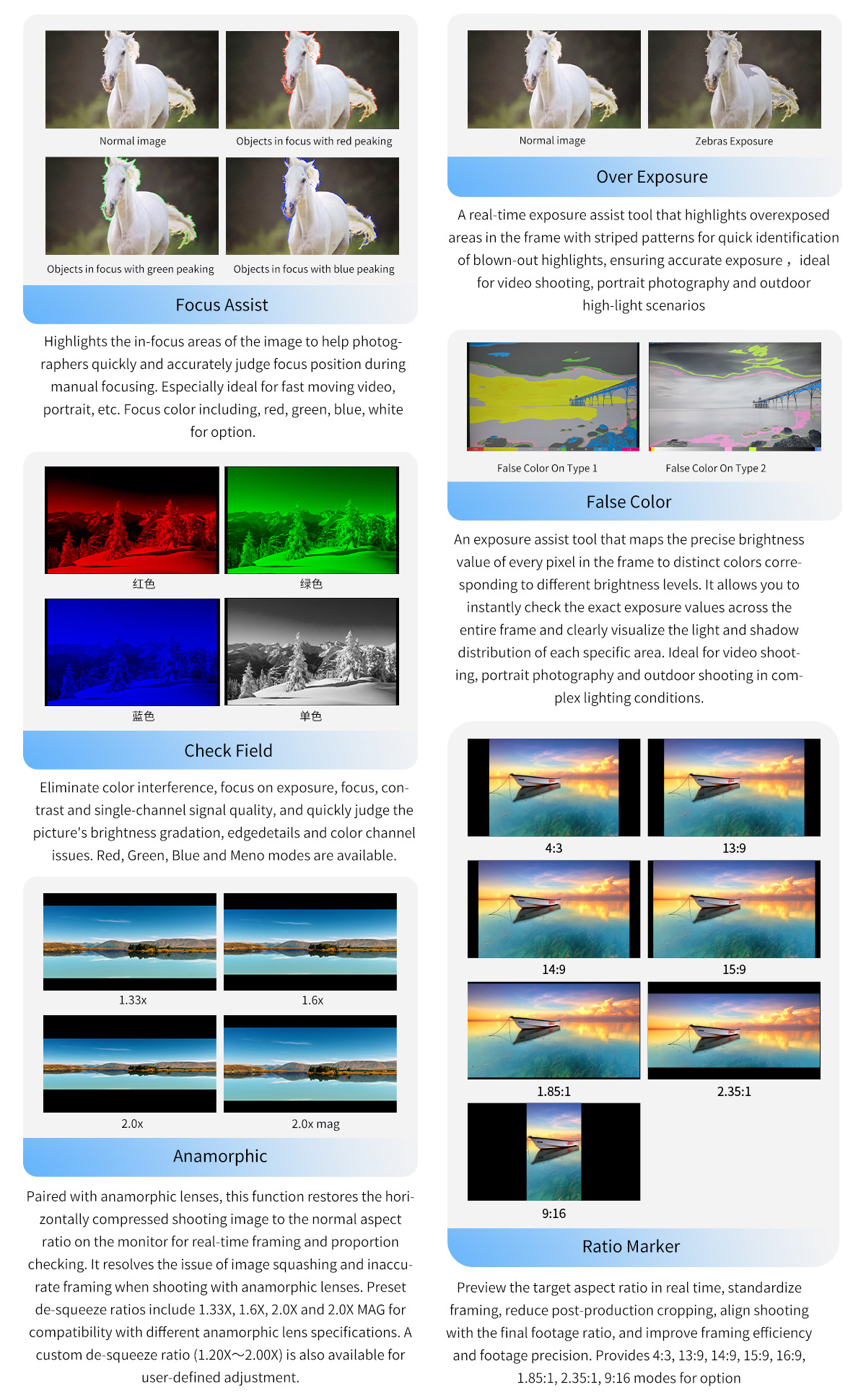

Function
| * All waves |
| * Waveform（RGB、YUV、Y ） |
| * Vector |
| * Histogram |
| * Focus Assist (Red, Green, Blue, White),1~10 adjustable for peaking level |
| *Embedded Audio (HDMI support up to 8 channels, SDI support up to 16 channels) |
| * Over Exposure（10~100 adjustable） |
| * Check Field (Red, Green, Blue, Gray) |
| * False Colors（Normal, ARRI ） |
| * SDI Time Code （LTC, VITC） |
| * Grids (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom) |
| * Safe Frames(80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16) |
| * Center Marker（Red, Green, Blue, Black, White, Gray） |
| * Ratio Marker (Ratio Marker) |
| * Aspect Ratio(Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen ) |
| * Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User) |
| *Zoom Mode (2X、4X、9X、16X、User) |
| * Image Freeze |
| * Pixel to Pixel |
| * Mirror Flip(H, V, H&V) |
| * Backlight（0~100） |
| * Brightness（0~100） |
| * Colortemp（6500K, 9300K, user） |
| *Contrast（0~100） |
| *Saturation（0~100） |
| *Tint（0~100） |
| *Display Range（Auto, Limit, Full ） |
| *Cooling Fan(1~5) |
| * Menu Setting Group（1-4） |
Display Spec.
| Model | M215S |
| Screen Size | 21.5"IPS |
| Resolution | 1920×1080 pixels |
| Color Display | 16.7M |
| Color Depth | 8bit |
| Color Gamut | REC709 97.5% |
| Pixel pitch | 0.24795(H) X 0.24795(V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 1000cd/m² |
| Contrast Ratio | 3000:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Signal Input
| 2 X BNC | 3G-SDI |
| 4X HDMI | HDMI 2.0 |
Signal Output
| 2 X BNC | 3G-SDI |
| 4X HDMI | HDMI 2.0 |
Communication Interface
| 1 x RS485 IN | RJ45 |
| 1 X RS4585 OUT | RJ45 |
| 1 X GPI | RJ45 |
| 1 X LAN | RJ45 |
Audio
| Audio Out | 3.5mm Stereo Headphon；Speaker |
Other Interface
| 1X USB | USB-A (Firmware update/ LUT import) |
SDI Support Format
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
HDMI 2.0 Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 3840×2160p (60/59.94/50/30/29.97/25/24/23.98) |
| 4096×2160p (60/59.94/50/30/29.97/25/24/23.98) |
General
| Input Voltage | DC12～24V; AC 220V |
| Power Consumption | 57W |
| Power Supply Way | 4pin XLR connector; AC 220V connector; V-mount Battery Plate |
| Working Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| VESA Mounting | 100x100mm |
| Unit Size | 511.5x355.5x34.8mm |
| Unit Weight | 5.7kg |
| Outer Carton Qty | 1PC |
| Outer Carton Size | 565x120x450mm |
| Gross Weight |

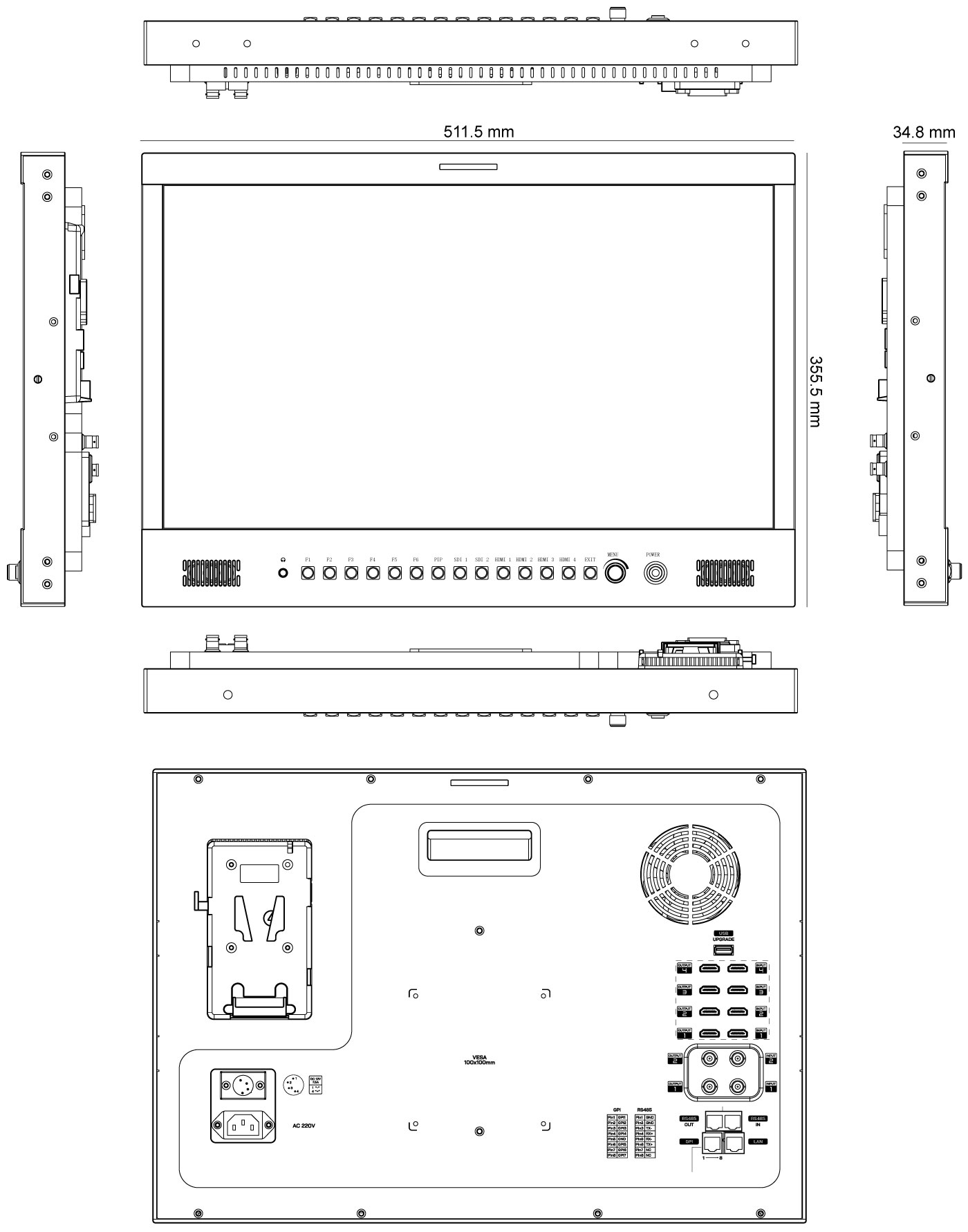

Dimensions (Unit: mm)

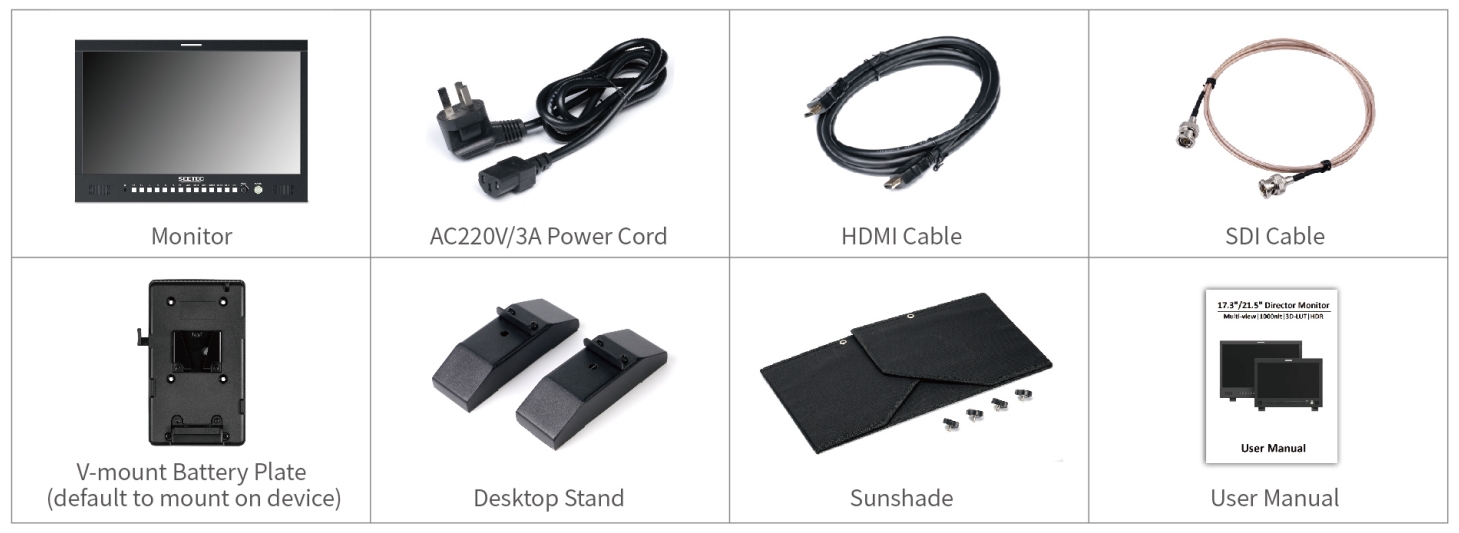

Packaging List:
Monitor
AC220V/3A Power Cord
HDMI Cable
SDI Cable
V-mount Battery Plate (default to mount on device)
Desktop Stand
Sunshade
User Manual
