Model:WHD151

Introduction

● Professional WHDI (MIMO/OFDM) technology
● Uncompressed 3G/HD/SD-SDI and HDMI
● 150m (LOS) transmission distance (max 200m)
● 5GHz ISM frequency band
● Multicast support
● Industrial metal case
● Support DC7V-36V voltage

Input

3G/HD/SD-SDI, HDMI

Output

3G/HD/SD-SDI, HDMI

Download

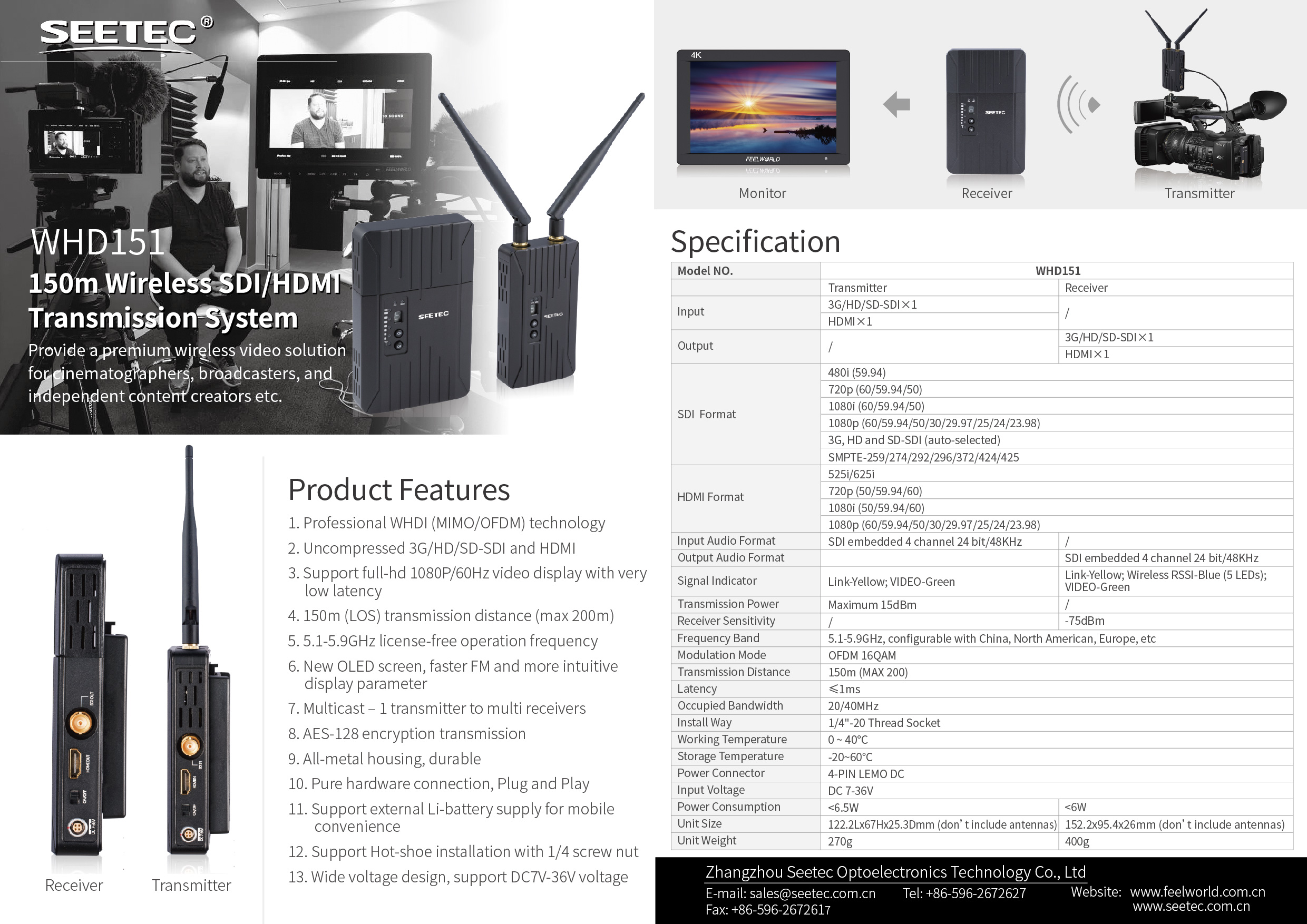

pdf Shop/2018/6/WHD151-DM-02.jpg

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES

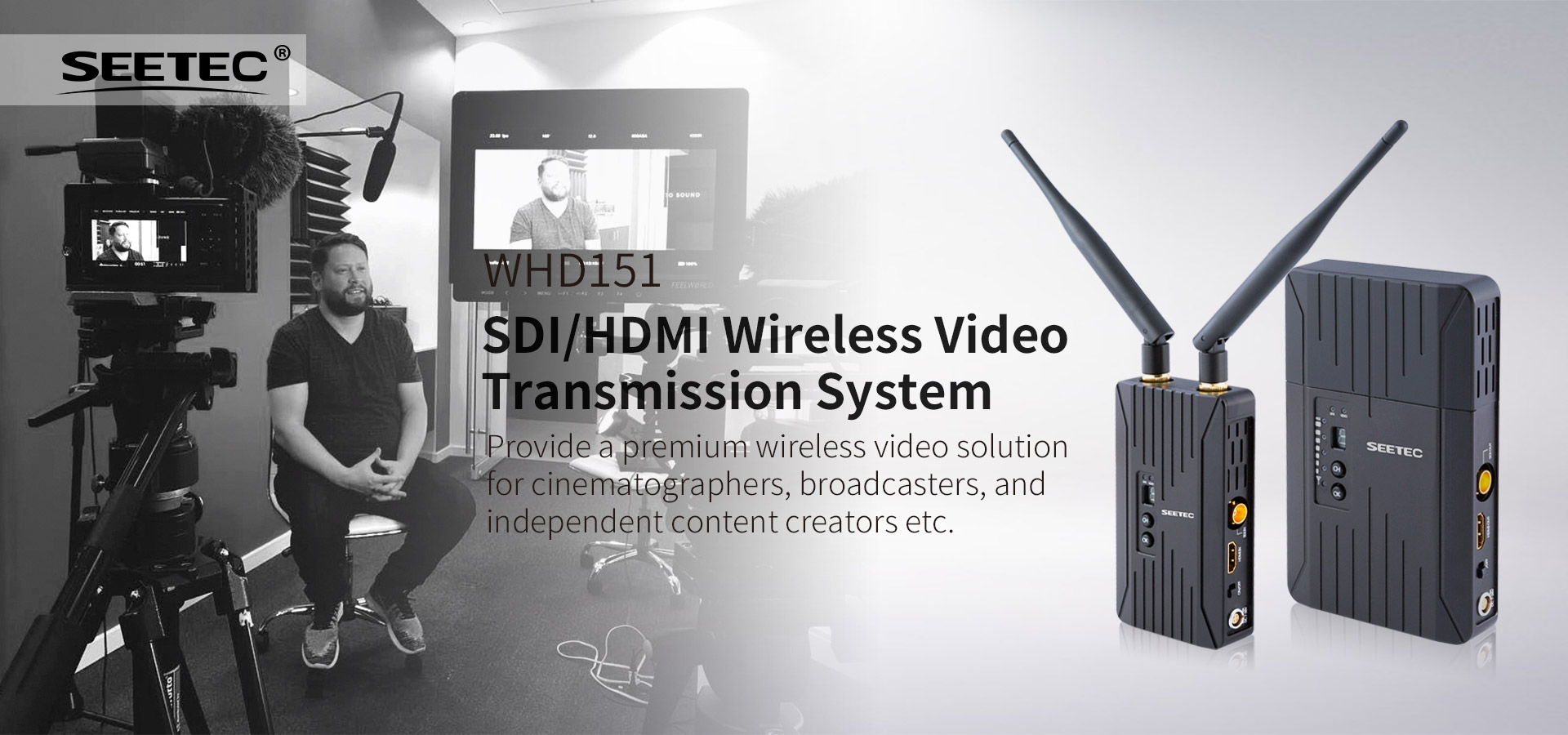

150m-live-video-system



SEETEC WHD151 Wireless HD Transmission System
SEETEC WHD151 is ideal for filmmakers to transition between scenes effortlessly, the director and photographer can exert their creativity, improve shooting efficiency, especially the special effects shots, especially the need wireless transmission.

hd-1080p-wireless-system1

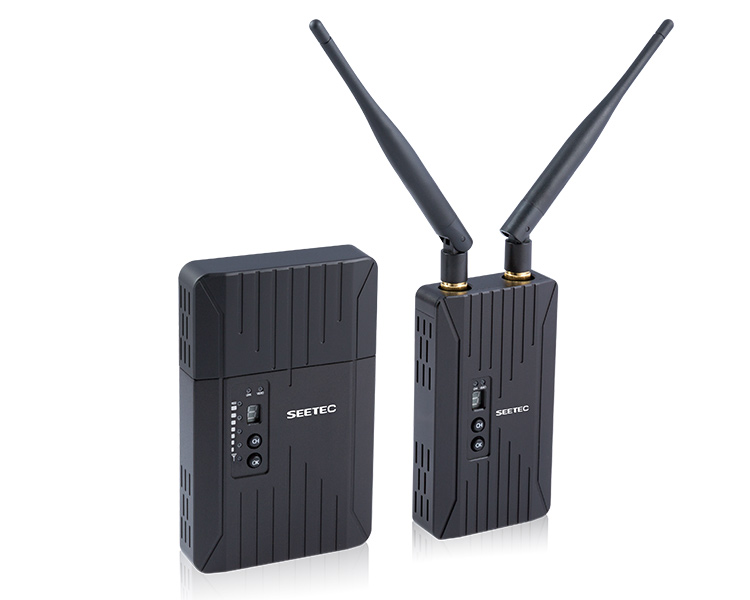

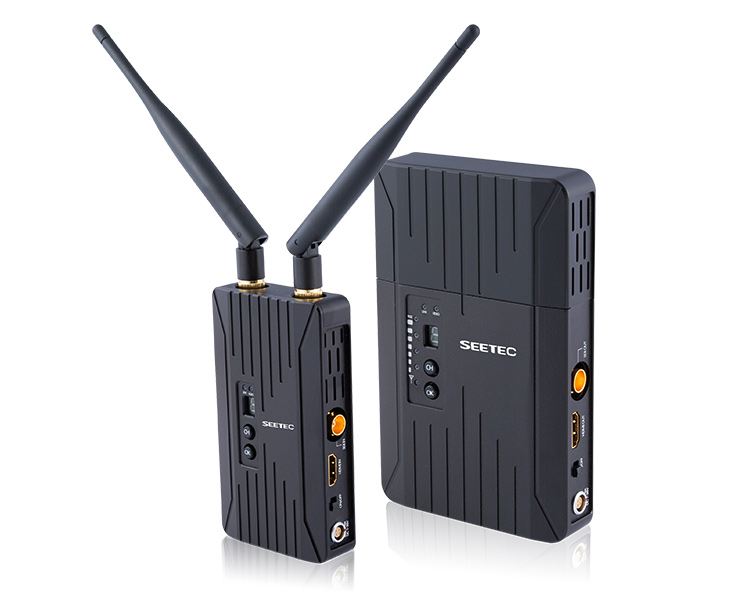

SEETEC WHD151 is the broadcast industry wireless system, includes a transmitter and a receiver, with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI wirelessly transmitted in 150 meters scale (max 200m). The wireless system runs at 5.1-5.9GHz License-free operation frequency. The frequency bands are user configurable. User can set several receivers at the same frequency bands as the 1 transmitter to enable the multicast mode. The system is pure hardware connection, plug and play build-up. Exquisite design, equipped with external SONY F970 battery mechanical interface for battery plug-in, which is widely used in film shooting, live sporting events, director monitoring, remote monitoring, live wedding broadcasting and forum broadcasting etc.

wireless-HD-transmission-system



WHDI Wireless Transmission System
SDI and HDMI, 150 meters
WHD151 is the broadcast industry wireless system, includes a transmitter and receiver, with WHDI (OFDM) technology, supports uncompressed 3G/ HD/ SD-SDI and HDMI wirelessly transmitted in 150 meters scale (max 200m), and with less than 1ms latency. The system is pure hardware connection, plug and play build-up, which is widely used in on-site shooting and director monitoring.

camera-video-system



High Quality HD 1080P
Uncompressed SDI/HDMI, less than 1ms latency

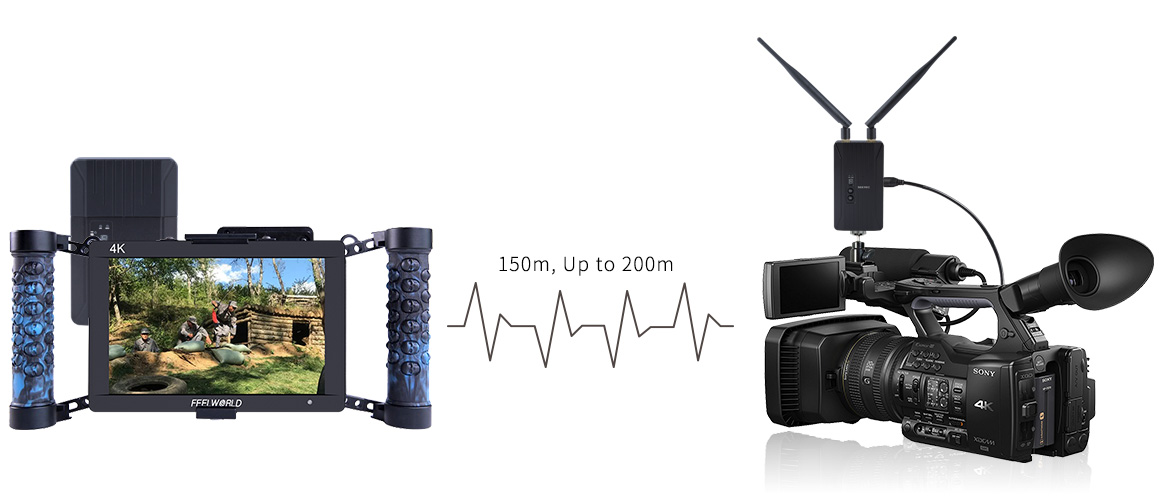

The WHD151 3G-SDI/ HDMI Wireless Video Transmission System from SEETEC is able to transmit Full HD 1080p video at up to 150m line-of-sight with no quality loss and less than 1 ms latency. It can transmit even further; up to 200m line-of-sight (depending on conditions), but at this extended range some loss in quality may be experienced.

1080p-hd-wirelsess-system1

high-quality-wireless-system



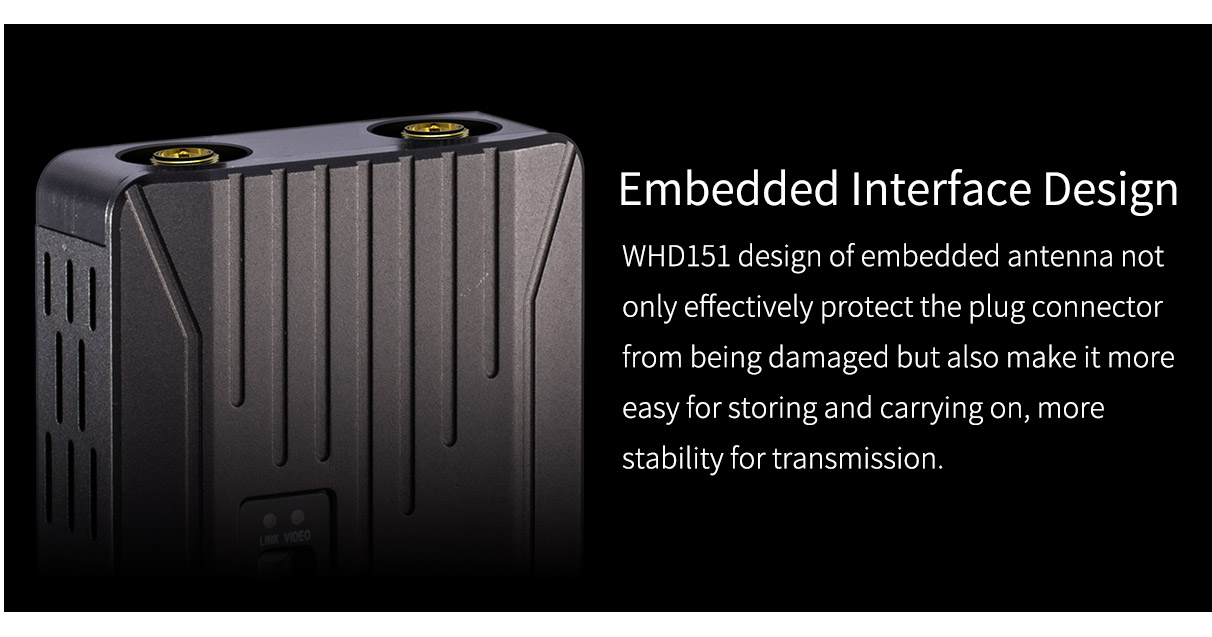

compact-video-system

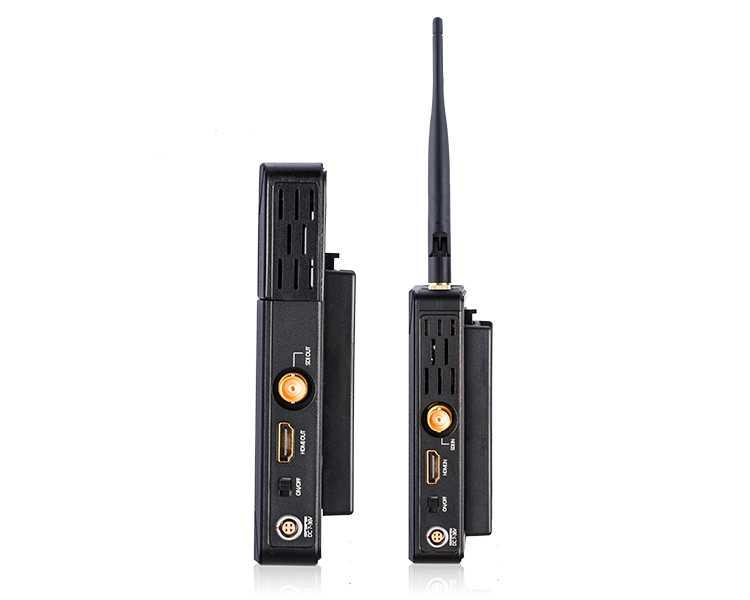

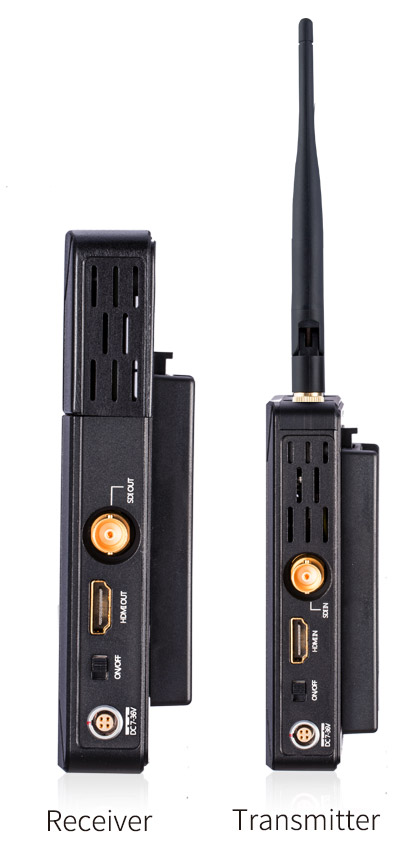

  • SDI/ HDMI Input and Output
    Meet your different needs
    The transmitter supports:
    3G/HD/SD-SDI input X 1
    HDMI input X 1
    The receiver supports:
    3G/HD/SD-SDI output X 1
    HDMI output X 1
    The receiver SDI and HDMI are output simultaneously. If both SDI and HDMI is input to transmitter, the receiver will give priority to output SDI signal.
  •
sdi-hdmi-transmission

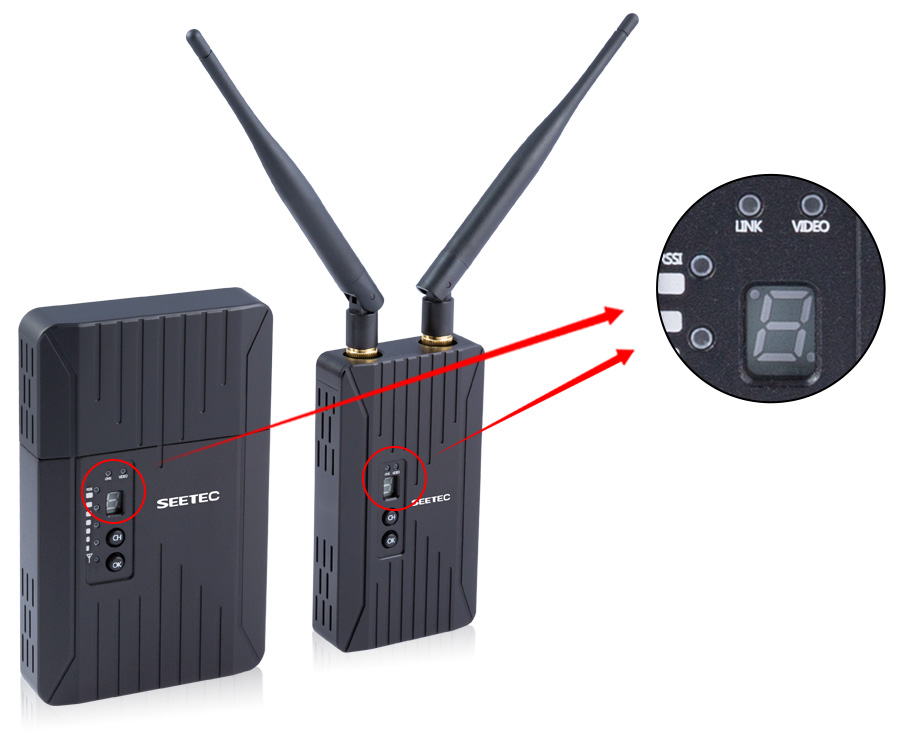

5.1-5.9GHz Operation Frequency
10 different frequency points
The WHD151 wireless system runs at 5.1-5.9GHz License-free operation frequency. The frequency bands are user configurable and support at most 4 sets of wireless transmission in one location. Without the trouble of many signal lines, allowing filmmakers to capture and transition between scenes effortlessly.

5hz-band-video-system1



Multicast Support
1 transmitter to multi receivers

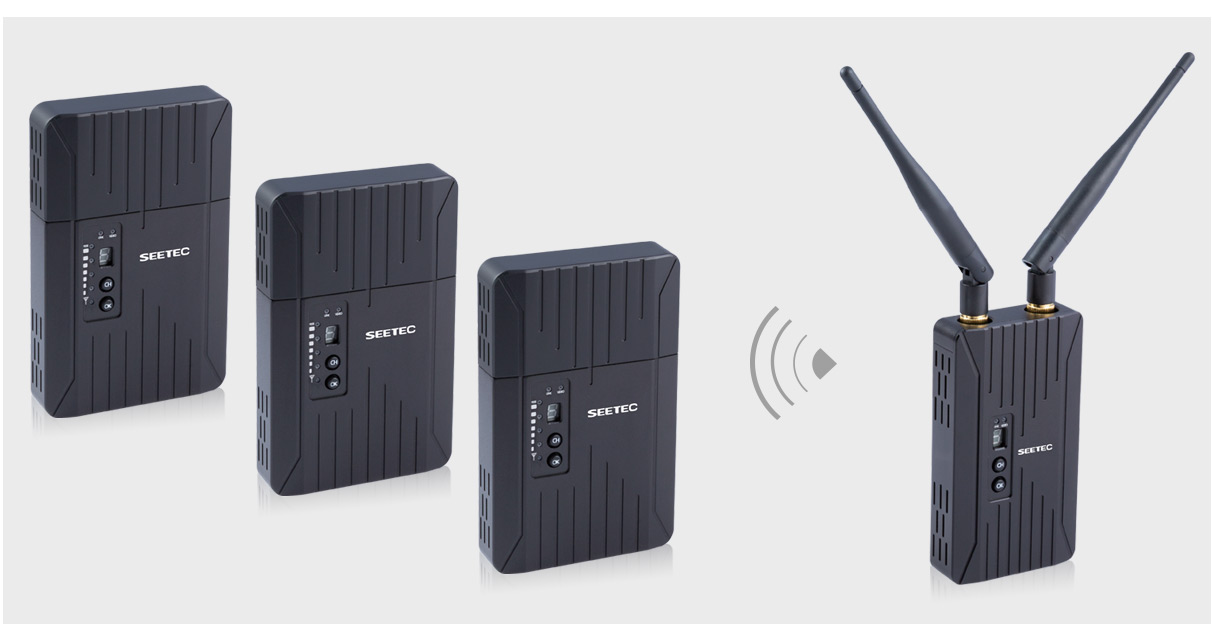

Support point to point / point to multi-point transmission mode, support 1 transmitter to multi receivers, You can set several receivers at the same frequency bands as the 1 transmitter to enable the multicast mode. Without signal line, wireless transmission more efficient, the signal does not decay.

multipoint-video-system1

multi-point-transmission-system



Simple and Reliable
Use AES-128 data encryption transmission, data security and reliable, give you more secure encryption protection. The 5GHz band, no affected by 2.4GHz band equipment and low frequency interference.

AES-128-video-system



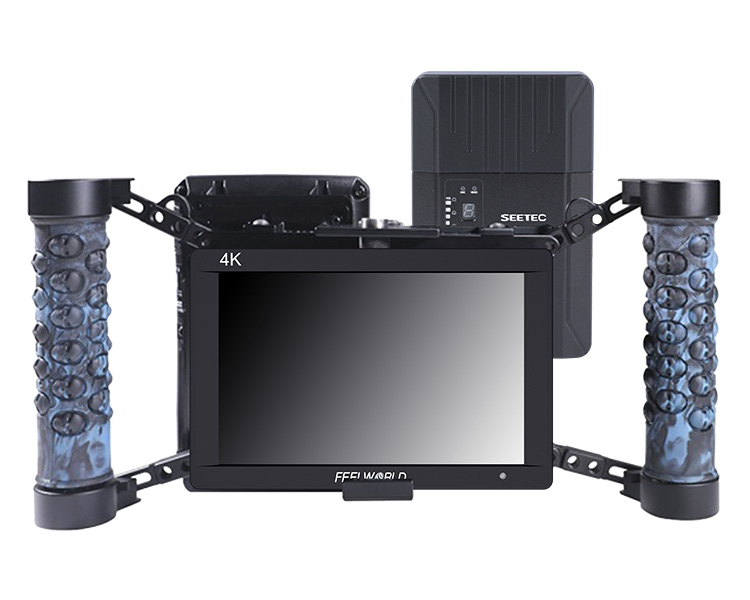

Power Supply and Installation

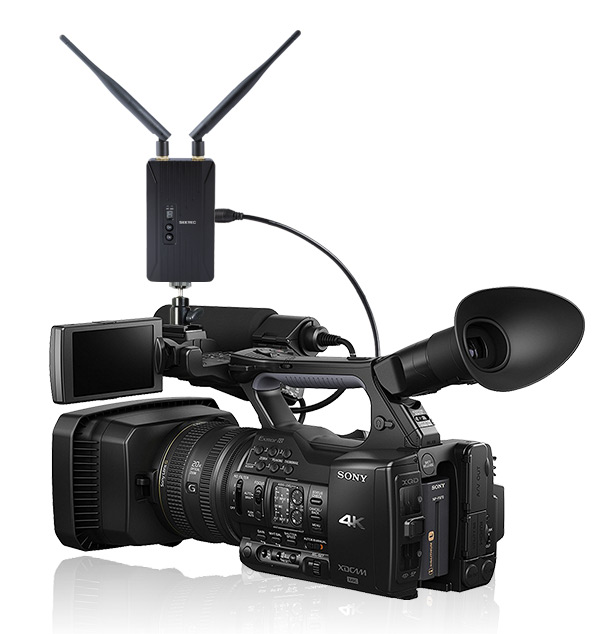

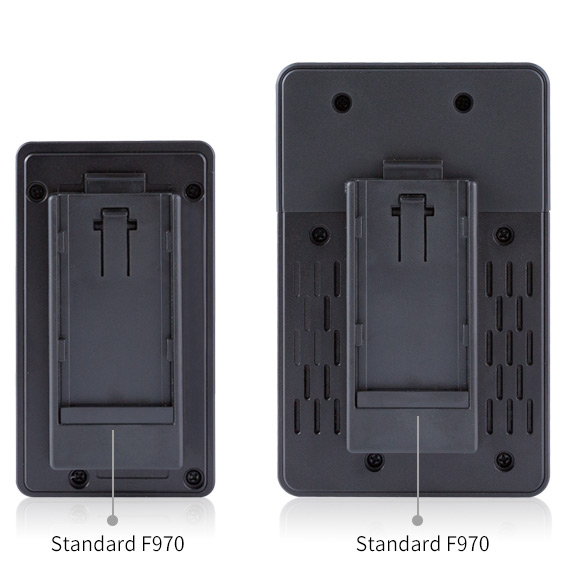

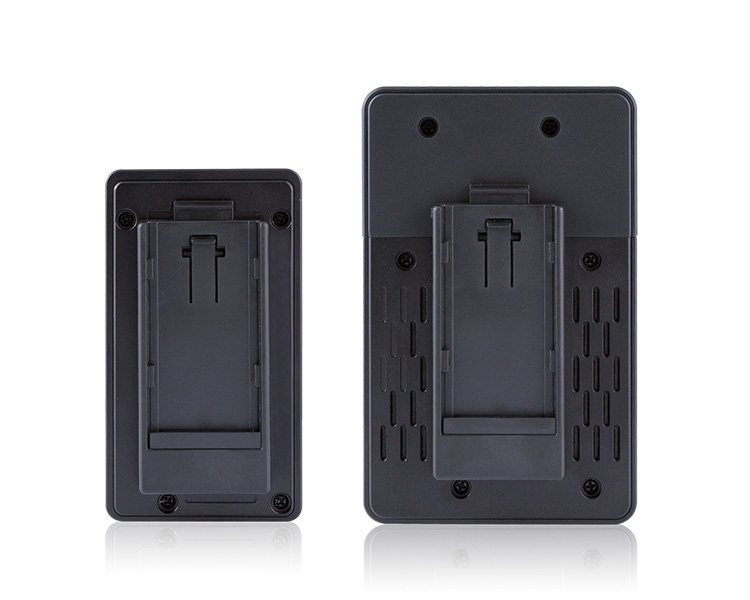

Both the transmitter and receiver are compact size designed, both the TX and RX feature 1⁄4”-20 holes for mounting to cameras and equipped with SONY F970 battery plates to be powered by standard F970 camera batteries. The transmitter and receiver can also be powered via the 4-PIN LEMO DC in socket of 7-36V input.

f970-power-systemlive-production-video-system1

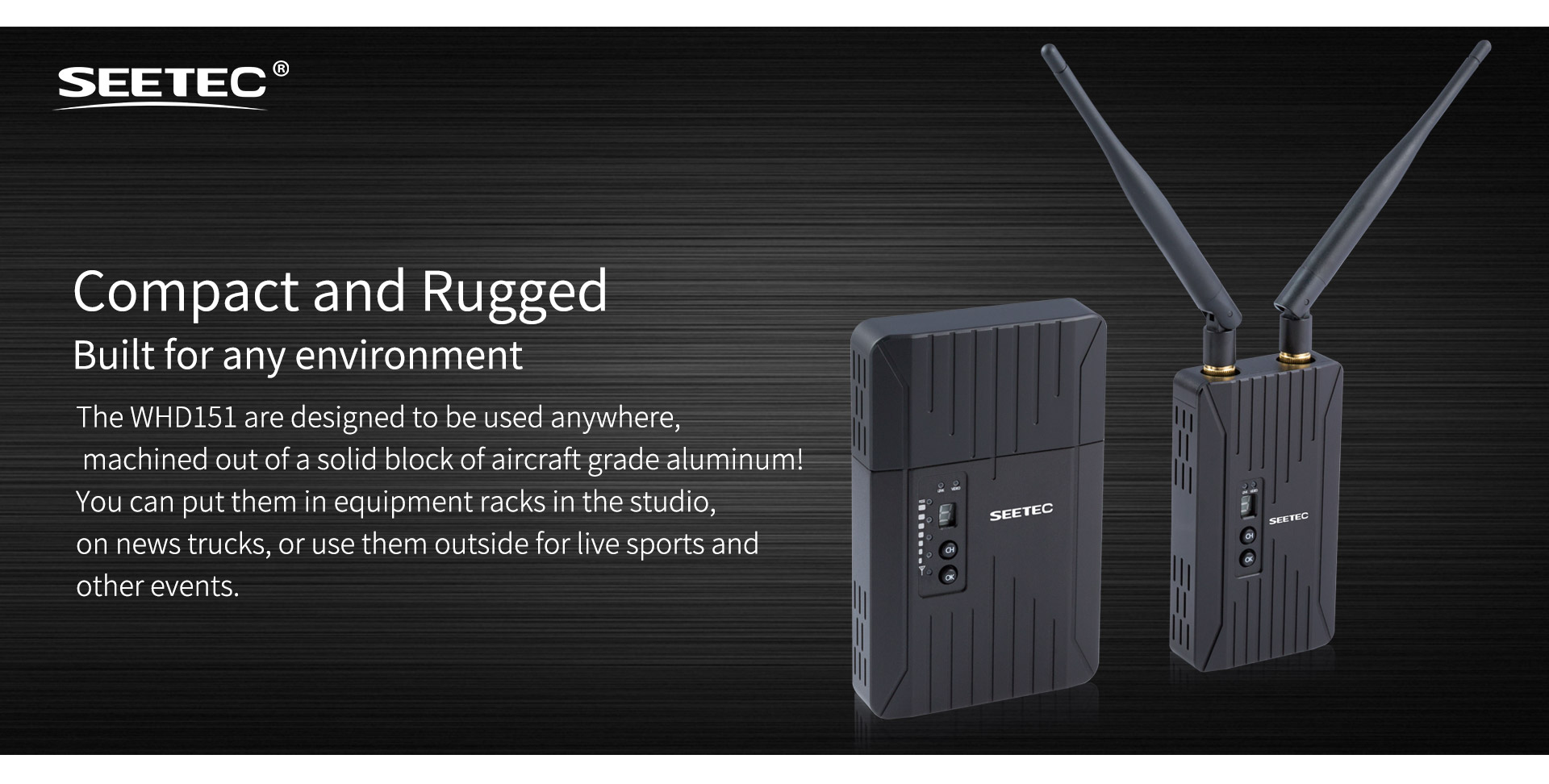

aluminum-wirelss-video-system



Features Highlights:
SEETEC WHD151 is the broadcast industry wireless system, includes a transmitter and a receiver, with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI wirelessly transmitted in 150 meters scale (max 200m). Good stability and strong anti-jamming capability under 5GHz frequency band and the system is pure hardware connection, plug and play build-up. Exquisite design, equipped with external SONY F970 battery mechanical interface for battery plug-in, which is widely used in film shooting, live sporting events, director monitoring, remote monitoring, live wedding broadcasting and forum broadcasting etc.
1. Professional WHDI (MIMO/OFDM) technology
2. Uncompressed 3G/HD/SD-SDI and HDMI
3. Support full-hd 1080P/60Hz video display with very low latency
4. 150m (LOS) transmission distance (max 200m)
5. 5.1-5.9GHz license-free operation frequency
6. New OLED screen, faster FM and more intuitive display parameter
7. Multicast – 1 transmitter to multi receivers
8. AES-128 encryption transmission
9. Industrial metal case, stable and reliable
10. Pure hardware connection, Plug and Play
11. Support external Li-battery supply for mobile convenience
12. Support Hot-shoe installation with 1/4 screw nut
13. Wide voltage design, support DC7V-36V voltage



3G-SDI/HDMI Transmitter (WHD151)
 Input

 3G/HD/SD-SDI×1

 HDMI×1

 SDI  Format

 480i (59.94)

 720p (60/ 59.94/ 50)

 1080i (60/ 59.94/ 50)

 1080P (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98)

 3G, HD and SD-SDI (auto-selected)

 SMPTE-259/274/292/296/372/424/425

 HDMI Format

 525i/ 625i

 720p (50/ 59.94/ 60)

 1080i(50/ 59.94/ 60)

 1080p (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98)

 Input Audio Format  SDI embedded 4 channel 24 bit/48KHz
 Signal Indicator  Link-Yellow; Video-Green
 Transmission Power  Maximum 15dBm
 Frequency Band  5.1-5.9GHz, configurable with China, North American, Europe, etc
 Modulation Mode  OFDM 16QAM
 Max Transmission  Distance  150m (MAX 200)
 Latency  ≤1ms
 Occupied Bandwidth  20/40MHz
 Install Way  1/4"-20 Thread Socket
Working Temperature  0 ~ 40°C
 Storage Temperature  -20 ~ 60°C
 Power Connector  4-PIN LEMO DC
 Input Voltage  DC 7-36V
 Power Consumption  <6.5W
 Unit Size  122.2Lx67x25.3mm (don't include antennas)
 Unit Weight  270g


3G-SDI/HDMI Receiver (WHD151)
 Output

 3G/HD/SD-SDI×1

 HDMI×1

 SDI  Format

 480i (59.94)

 720p (60/ 59.94/ 50)

 1080i (60/ 59.94/ 50)

 1080P (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98)

 3G, HD and SD-SDI (auto-selected)

 SMPTE-259/274/292/296/372/424/425

 HDMI Format

 525i/ 625i

 720p (50/ 59.94/ 60)

 1080i(50/ 59.94/ 60)

 1080p (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98)

 Output Audio Format  SDI embedded 4 channel 24 bit/48KHz
 Signal Indicator  Link-Yellow; Wireless RSSI-Blue (5 LEDs); Video-Green
 Receiver Sensitivity  -75dBm
 Frequency Band  5.1-5.9GHz, configurable with China, North American, Europe, etc
 Modulation Mode  OFDM 16QAM
 Max Transmission  Distance  150m (MAX 200)
 Latency  ≤1ms
 Occupied Bandwidth  20/40MHz
 Install Way  1/4"-20 Thread Socket
Working Temperature  0 ~ 40°C
 Storage Temperature  -20 ~ 60°C
 Power Connector  4-PIN LEMO DC
 Input Voltage  DC 7-36V
 Power Consumption  <6W
 Unit Size  152.2x95.4x26mm (don't include antennas)
 Unit Weight  400g

Solutions
SEETEC WHD151 wireless HD transmission system, with transmitter and receiver, real 1080P wireless video transmission, easy to set up for you mobile camera, live events, film and television production and director monitoring, live broadcast, live conference, outdoor activities.

201806250853492915

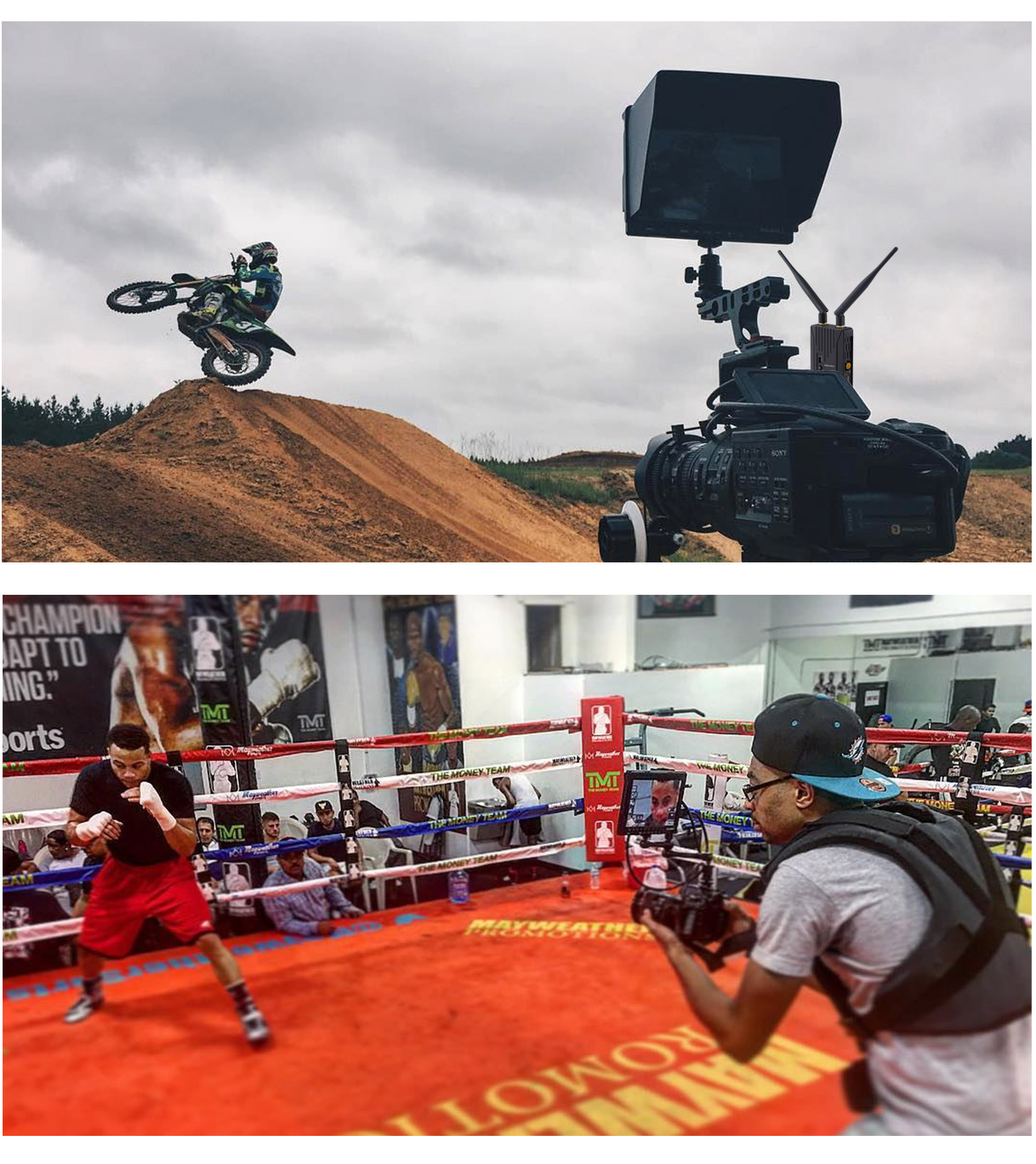

Sport Live Event
Athletes in sports venues move back and forth, camera with the line can not be easily moved; all kinds of outdoor sports, extreme sports, outdoor adventure, like marathon and bicycle race, the outdoor environment is more complicated than the indoor environment, it is difficult to route the equipment and the equipment is ready to move.
SEETEC WHD151 wireless transmission can fully meets the demands of outdoor sports broadcasts living, eliminating the need for long-distance wiring, while maintaining high-definition quality, real-time transmission requirements, simple operation without barriers, greatly simplifies the majority of outdoor live sharing.

201806250855204516

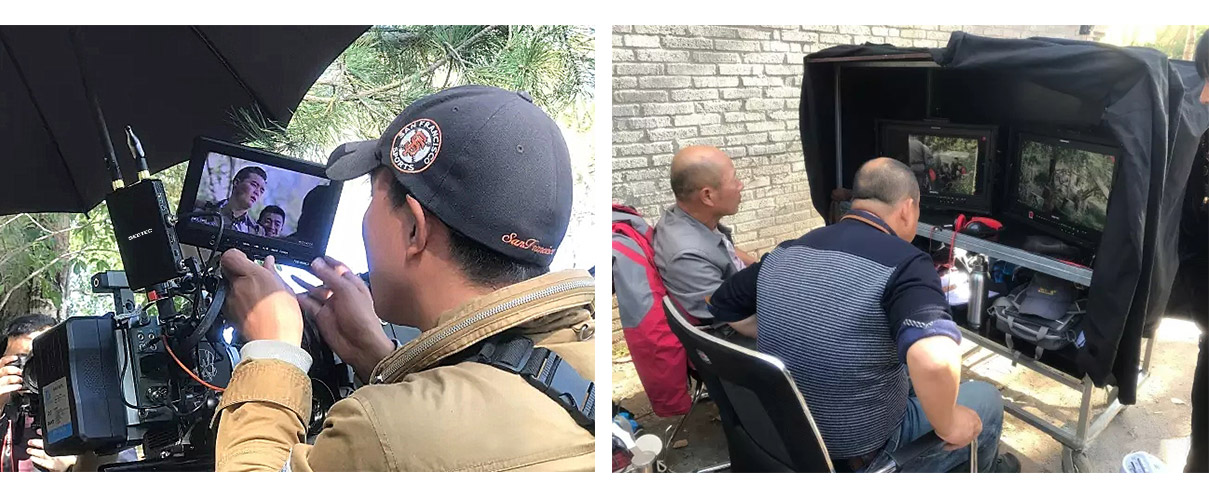

Director Wireless Monitoring
In the Film crew, including the extras, messy video line is easy to trip people, or even damage to equipment, the photographer also need to have a helper behind the finishing wire, depending on the SEETEC WHD151 HD wireless transmission solution for film and television shooting become simple and high efficiency. SEETEC WHD151 wireless transmission equipment design for filming, live broadcast provides a more convenient and safe solution, with long-distance, non-compressed, no delay, real-time transmission and other features to fully meet the outdoor shooting and Transfer needs.

201806250855520847

Live Events
In large-scale activities, TV and News living, the photographers need transition between scenes efficiency, video lines affect the shooting efficiency, and no convenient for director monitoring. SEETEC WHD151 wireless transmission system with long-distance, non-compressed, no delay, real-time transmission and other features to fully meet the field shooting and Live.



Conference Broadcast
The broadcast vehicle can't enter the venue, video cables are inconvenient, the photographer can carry the transmitter to transition between scenes effortlessly, WHD151, making the conference live convenient.

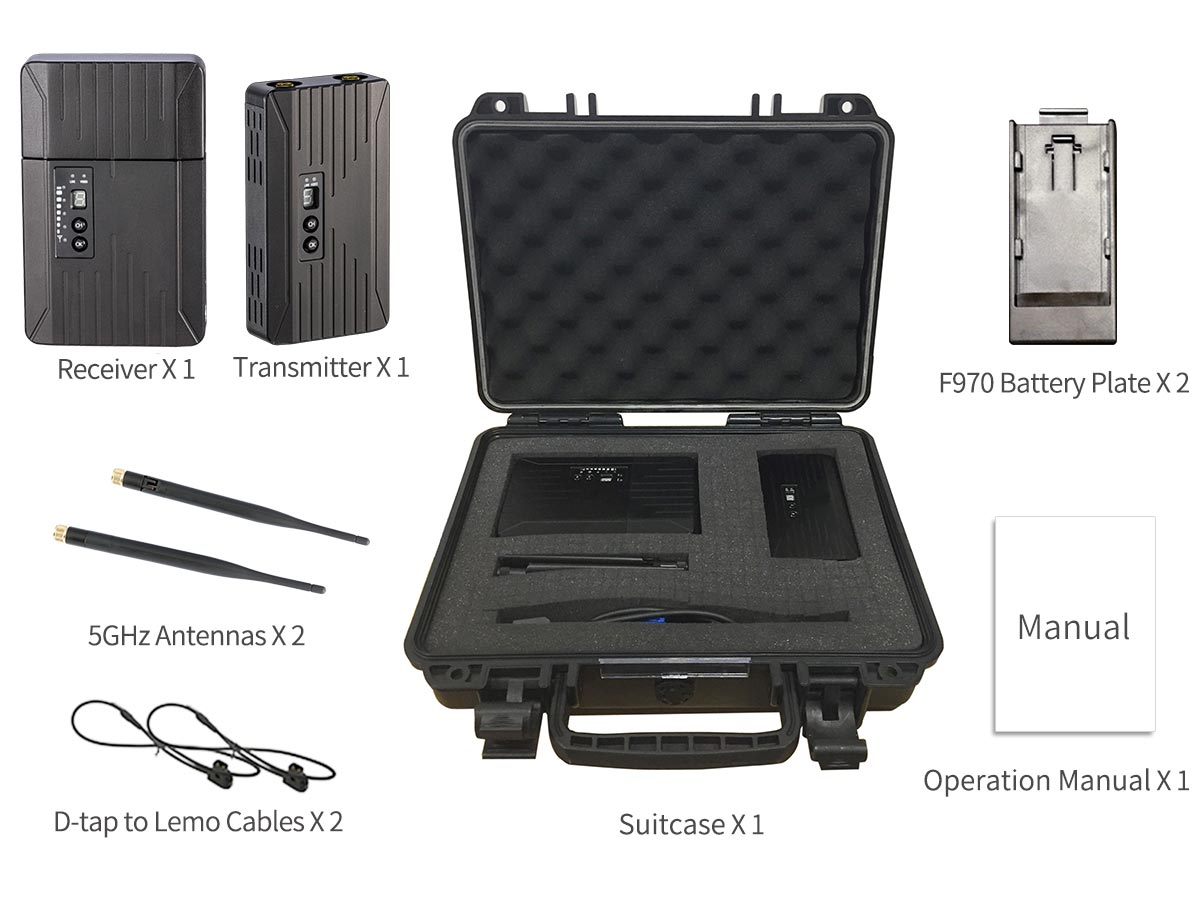

Standard Accessories:
  1× Receiver
  1× Transmitter
  2× 5GHz Antennas
  2× F970 Battery Plates
  2× D-tap to Lemo Cables
  1× Suitcase
